LTH 2042 (954571953-A) - Husqvarna 42" Lawn Tractor (2003-12) Chassis And Enclosures Parts Diagram

42" Lawn Tractor

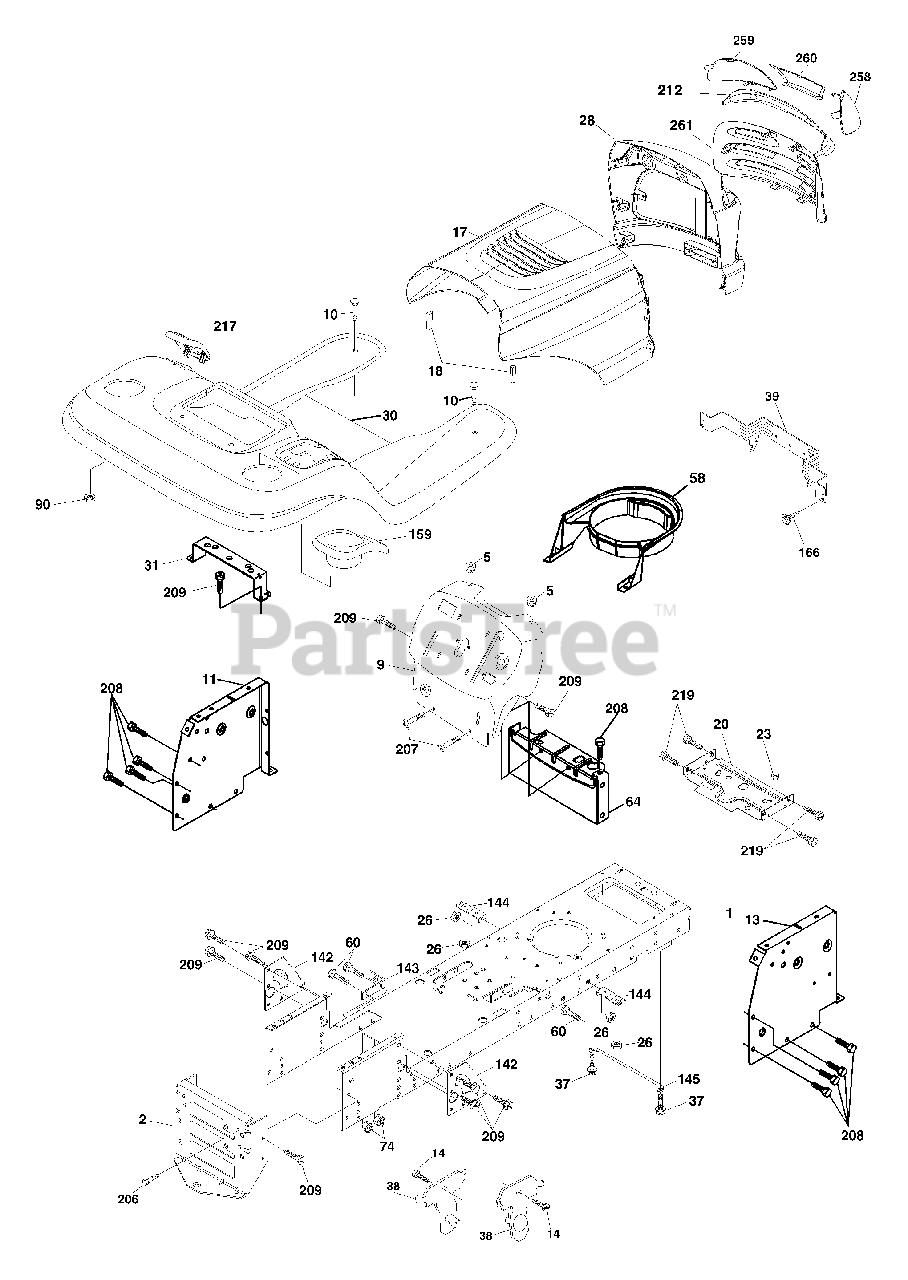

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis Stamping
(Superseded to 579841401)

$241.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

Bumper

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 532171708

Dashboard
(Superseded to 532168337)

$

$

Not available

10

Husqvarna 872140608

Bolt Rdhd Sqnk 3/8-16 unc x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532174996

Panel Dash Lh

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532181719

Panel Dash Rh
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532187348

Hood
(Superseded to 532185682)

$74.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532184921

Bumper Hood

$7.49

$

In Stock, Qty 12

0

20

Husqvarna 532180679

Plate Battery

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124028

Bushing Snap

$6.99

$

In Stock, only 3 left!

0

26

Husqvarna 873800600

Nut Lock w/Insert 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532185292

Grille Lens Asm

Note: Includes Key #'s 212, 258, 259, 260, 261

$194.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532185432

Fender
(Superseded to 532192814)

$

$

Not available

31

Husqvarna 532139976

Bracket

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$9.99

$

In Stock, only 2 left!

0

39

Husqvarna 532174714

Bracket Pivot Hood
(Superseded to 532407807)

$26.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532184462

Duct Air

$30.99

$

Usually ships in 3-10 days

0

60

Husqvarna 872140606

Bolt RDHD SQNK 3/8-16 x 3/4

$

$

Not available

64

Husqvarna 532154798

Dash Lower Stlt

$31.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

Nut Self-THD Wsh-HD 1/4

$4.99

$

In Stock, only 1 left!

0

142

Husqvarna 532175702

Plate Reinforcement Stlt

$7.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532186689

Bracket Swaybar Chassis

$6.49

$

In Stock, Qty 11

0

144

Husqvarna 532175582

Bracket Ft Rest

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532185434

Cupholder
(Superseded to 532191120)

$10.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532171875

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$12.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 20+

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2 TYTT

$6.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2 Ty-TT

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, Qty 14

0

212

Husqvarna 532183548

Insert Lens Reflect

$

$

Not available

217

Husqvarna 532185436

Console Fuel Window
(Superseded to 532179132)

$

$

Not available

219

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

258

Husqvarna 532185214

Lens RH
(Superseded to 532183379)

$9.99

$

In Stock, only 1 left!

0

259

Husqvarna 532185213

Lens LH
(Superseded to 532183378)

$9.99

$

In Stock, only 1 left!

0

260

Husqvarna 532185429

Cover Lens

$

$

Not available

261

Husqvarna 532185433

Insert, Grille

$24.99

$

Usually ships in 3-10 days

0

Husqvarna 532005479

Plug

$4.99

$

Usually ships in 3-10 days

0
