LTH 2042 (954571953-A) - Husqvarna 42" Lawn Tractor (2003-12) Seat Assembly Parts Diagram

42" Lawn Tractor

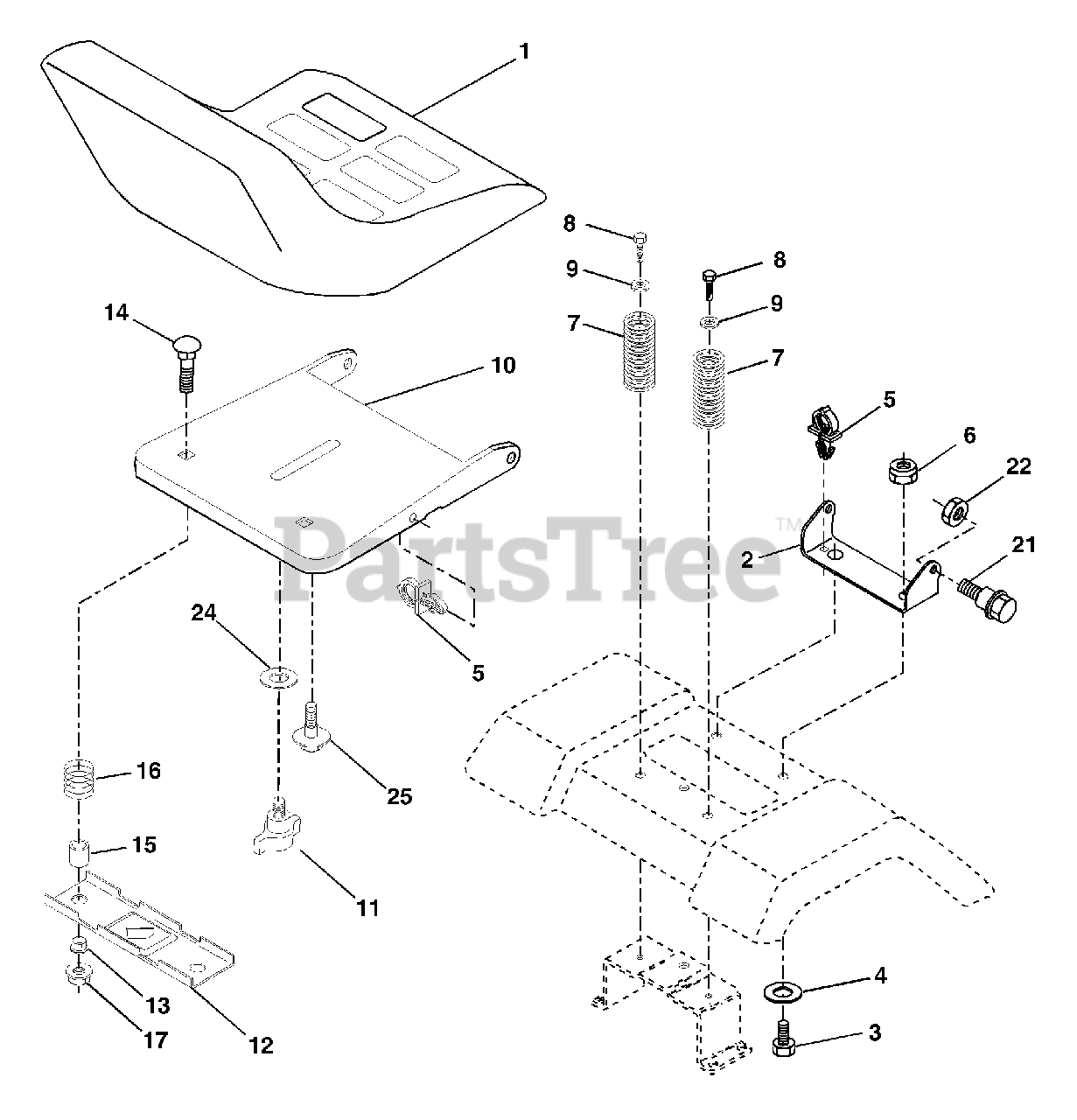

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532190120

Seat
(Superseded to 532439699)

$206.99

$

In Stock, only 1 left!

0

2

Husqvarna 532140551

Bracket Pivot Seat 8 720

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 871110616

Bolt Fin Hex 3/8-16 unc X 1

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 819131610

Washer 13/32 x 1 x 10 Ga.

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532145006

Clip Push-In

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut Hex w/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 8

0

9

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532182493

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

Knob Seat

$10.99

$

In Stock, only 3 left!

0

12

Husqvarna 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt Rdhd Sqnk 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532134300

Spacer Split 28x 96 Yel Zinc

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532121250

Spring Cprsn 1 27 Blk Pnt

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532171852

Bolt Shoulder 5/16-18 unc-2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

22

Husqvarna 873800500

Nut Hex Lock W/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532127018

Bolt Shoulder 5/16-18 x .62

$7.49

$

Usually ships in 3-10 days

0
