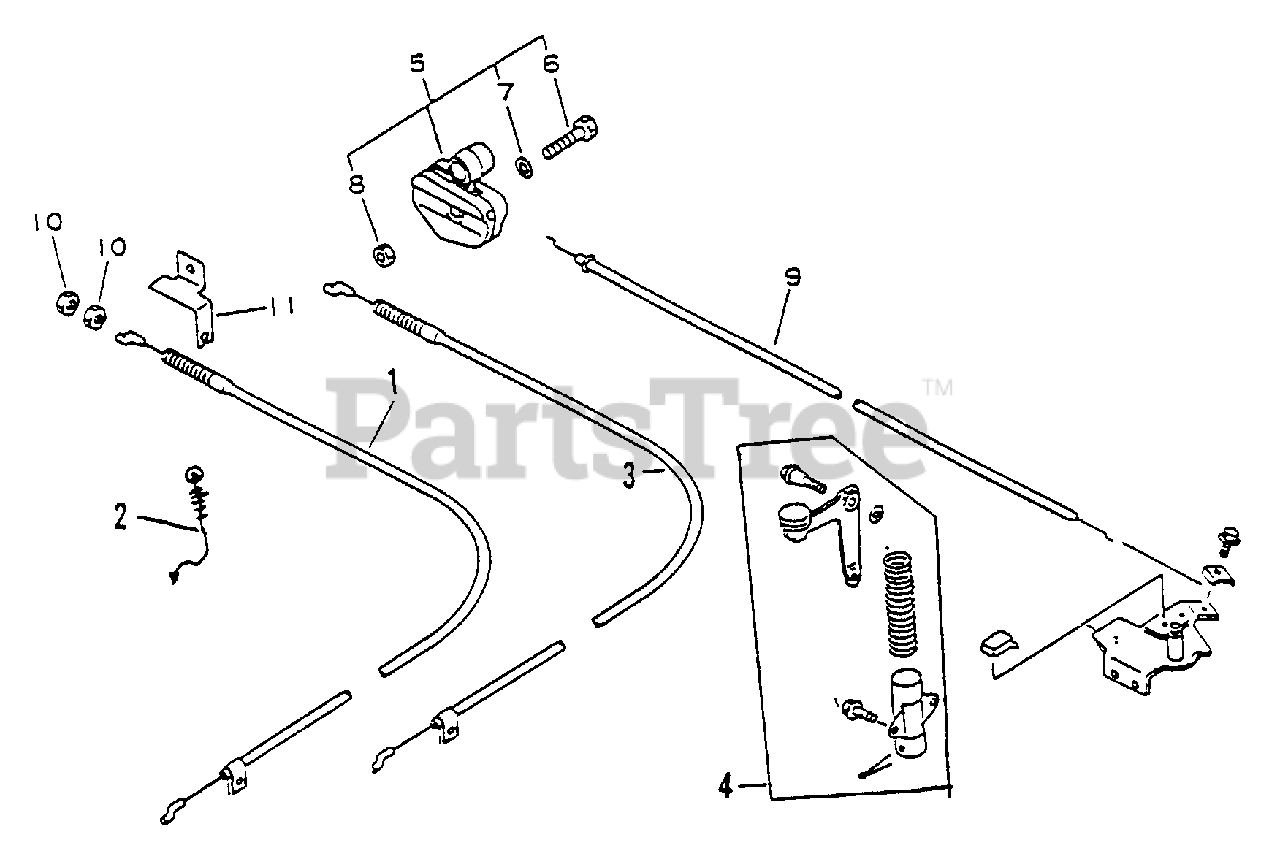

M14V A1Z0 - Echo Lawn Mower Engine Cables Parts Diagram

Lawn Mower Engine

Cables Parts Diagram

  • Title

1

Echo 61641011620

WIRE, BRAKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 13201311620

CLIP
(Superseded to Discontinued)

$

$

Not available

3

Echo 61641011720

WIRE, BRAKE
(Superseded to Discontinued)

Note: TORO ZONE

$

$

Not available

4

Echo 19000011620

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 17810011620

LEVER, THROTTLE
(Superseded to Discontinued)

Note: UNIVERSAL; INCLUDES ITEMS 6, 7 & 8

$

$

Not available

6

Echo 90001608056

BOLT - 1/4 X 1-3/4"
(Superseded to Discontinued)

$

$

Not available

7

Echo 90003800008

WASHER - 1/8" -- STAR

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90003000008

NUT - 1/4-20
(Superseded to 740000670)

$0.99

$

In Stock, Qty 8

0

9

Echo 61640211620

WIRE KIT, BRAKE
(Superseded to Discontinued)

Note: UNIVERSAL; INCLUDES ITEMS 1 - 4, 10 & 11

$

$

Not available

10

Echo 90003000010

NUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

11

Echo 61651011620

BRACKET, BRAKE WIRE
(Superseded to Discontinued)

$

$

Not available
