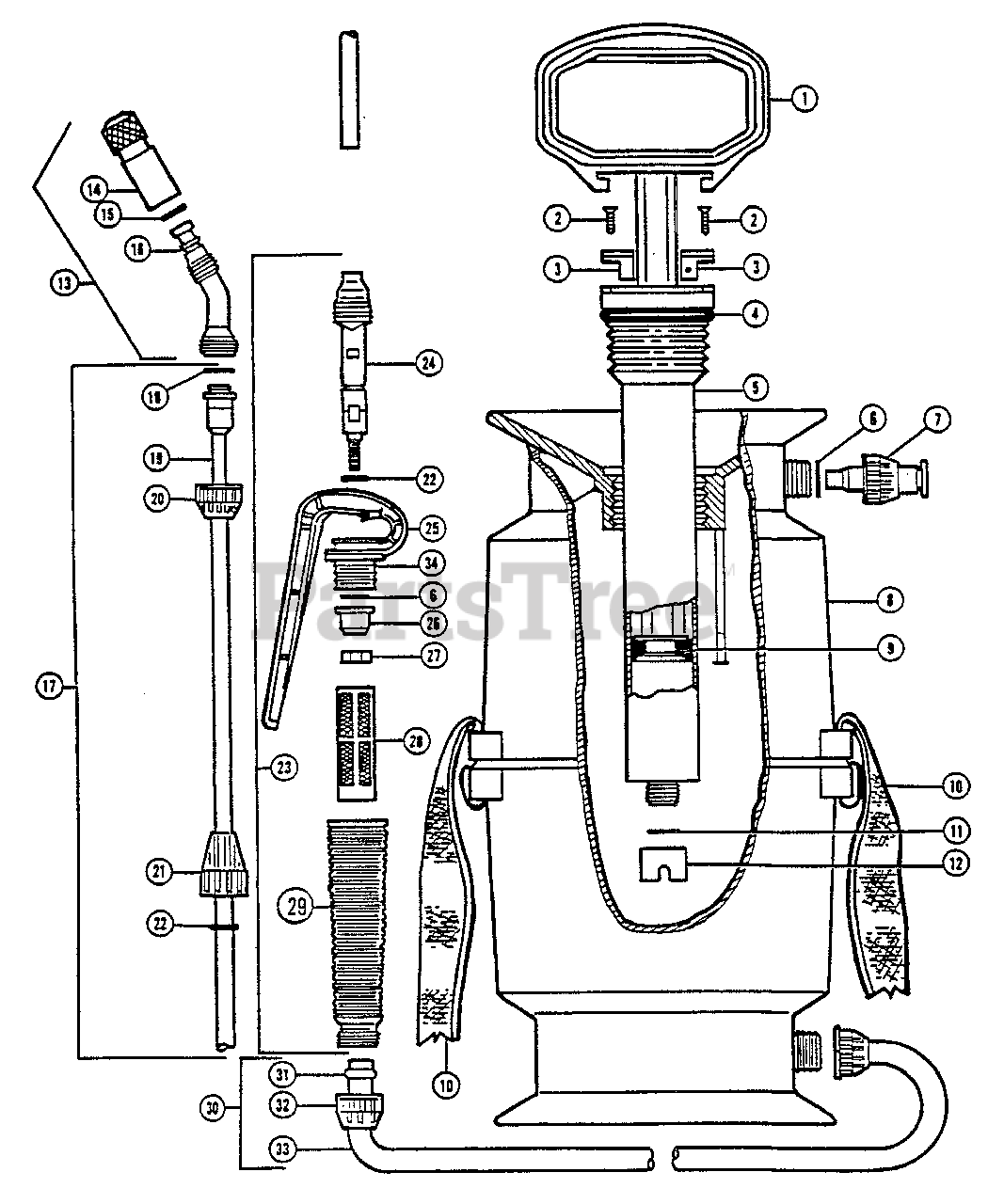

MS-12 - Echo Manual Sprayer Unit Complete Parts Diagram

Manual Sprayer

Unit Complete Parts Diagram

  • Title

1

Echo 283812308

HANDLE

$15.99

$

Usually ships in 2-4 days

0

2

Echo 225127901

SCREW - 7 X 7/8"
(Superseded to Discontinued)

$

$

Not available

3

Echo 283805309

COVER, CHAMBER
(Superseded to Discontinued)

$

$

Not available

4

Echo 222315930

O-RING - 30

$1.49

$

Usually ships in 2-4 days

0

5

Echo 283812801

CHAMBER MS-9, 12
(Superseded to Discontinued)

$

$

Not available

6

Echo 222315908

O-RING - 8

$1.49

$

Usually ships in 2-4 days

0

6A

Echo 222316908

O-RING - 8
(Superseded to Discontinued)

$

$

Not available

7

Echo 283805806

PRESSURE RELEASE VALVE

$18.99

$

Usually ships in 2-4 days

0

8

Echo 283808301

TANK -- MS-9
(Superseded to Discontinued)

$

$

Not available

8A

Echo 283812301

TANK -- MS-12
(Superseded to Discontinued)

$

$

Not available

9

Echo 283902314

SEAL

$7.49

$

Usually ships in 2-4 days

0

9A

Echo 283911314

COLLAR SEAL, VITON
(Superseded to Discontinued)

$

$

Not available

10

Echo 283812420

STRAP
(Superseded to Discontinued)

$

$

Not available

11

Echo 283808305

VALVE

$4.99

$

Usually ships in 2-4 days

0

12

Echo 283808304

NUT
(Superseded to Discontinued)

$

$

Not available

12

Echo 283808804

WAND ASSY
(Superseded to Discontinued)

$

$

Not available

13

Echo 283808803

NOZZLE ASSY

$6.49

$

Usually ships in 2-4 days

0

14

Echo 283902323

NOZZLE - 1mm

$0.99

$

Usually ships in 2-4 days

0

15

Echo 222315905

O-RING - 5
(Superseded to Discontinued)

$

$

Not available

15A

Echo 222316905

O-RING - 5
(Superseded to Discontinued)

$

$

Not available

16

Echo 283901322

SPRAYER

$2.49

$

Usually ships in 2-4 days

0

17

Echo 283808828

TUBE ASSY

$15.99

$

Usually ships in 2-4 days

0

18

Echo 284202334

WASHER
(Superseded to Discontinued)

$

$

Not available

19

Echo 283808615

WAND TUBE
(Superseded to 283808828)

$15.99

$

Usually ships in 2-4 days

0

20

Echo 283808312

NUT

$1.49

$

Usually ships in 2-4 days

0

21

Echo 283805304

WAND NUT

$0.99

$

Usually ships in 2-4 days

0

22

Echo 222315906

O-RING - 6

$1.99

$

Usually ships in 2-4 days

0

22A

Echo 222316906

O-RING - 6
(Superseded to Discontinued)

$

$

Not available

23

Echo 283808827

HANDLE ASSY
(Superseded to 283845801)

$21.99

$

Usually ships in 2-4 days

0

24

Echo 283805307

WAND SHAFT

$3.99

$

Usually ships in 2-4 days

0

25

Echo 283805306

BODY, HANDLE

$6.49

$

Usually ships in 2-4 days

0

26

Echo 283906332

GUIDE

$0.99

$

Usually ships in 2-4 days

0

27

Echo 226200006

NUT - 6

$0.99

$

Usually ships in 2-4 days

0

28

Echo 283808327

FILTER, WAND

$3.99

$

Usually ships in 2-4 days

0

29

Echo 283805305

GRIP

$5.49

$

Usually ships in 2-4 days

0

30

Echo 283805805

HOSE ASSY
(Superseded to Discontinued)

$

$

Not available

31

Echo 283808308

HOSE CAP
(Superseded to Discontinued)

$

$

Not available

32

Echo 283812312

NUT

$0.99

$

Usually ships in 2-4 days

0

33

Echo 211009209

HOSE - 6 x 1.3M
(Superseded to Discontinued)

$

$

Not available

34

Echo 222315914

O-RING
(Superseded to 222399587)

$0.99

$

Usually ships in 2-4 days

0
