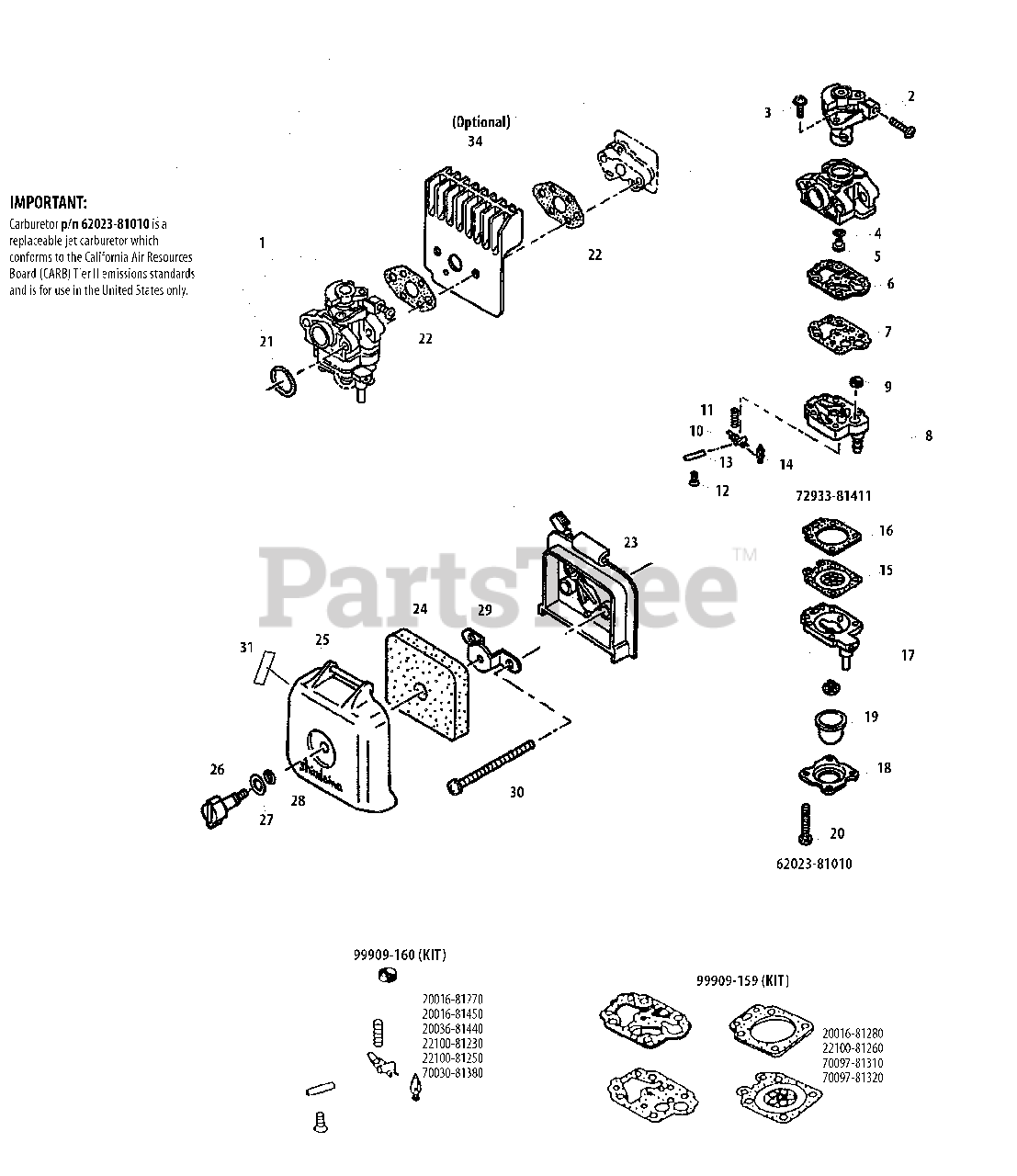

P 231 - Shindaiwa Pole Saw / Pruner Carburator Parts Diagram

Pole Saw / Pruner

Carburator Parts Diagram

  • Title

1

Echo 62023-81010

CARBURETOR
(Superseded to A021002150)

Note: WALBRO WYL-26 (CARB Tier II)

$64.99

$

In Stock, Qty 6

0

2

Echo 62023-81310

VALVE, THROTTLE
(Superseded to 12311644330)

$19.99

$

Usually ships in 2-4 days

0

3

Echo 70064-81290

SCREW
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

5

Echo 62023-81330

JET, MAIN
(Superseded to P003003450)

$7.49

$

Usually ships in 2-4 days

0

6

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

7

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

8

Echo 72933-81411

BASE, PURGE
(Superseded to P003003690)

$13.99

$

Usually ships in 2-4 days

0

9

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 20+

0

10

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

11

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

12

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

14

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 2 left!

0

15

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 20+

0

16

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

17

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, Qty 20+

0

18

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

19

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

20

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

21

Echo 20016-81250

O-RING - 15
(Superseded to 90072000015)

$1.99

$

In Stock, Qty 20+

0

22

Echo 20016-81530

GASKET
(Superseded to V103001210)

$0.99

$

In Stock, Qty 20+

0

23

Echo 70140-81710

CASE, AIR FILTER
(Superseded to A023000230)

$7.49

$

In Stock, Qty 14

0

24

Echo 20018-81750

FILTER, AIR - FOAM
(Superseded to A226000740)

$3.99

$

In Stock, Qty 20+

0

25

Echo 70140-81760

COVER, AIR FILTER
(Superseded to A232000940)

Note: (Before S/N 1100002)

$5.49

$

In Stock, Qty 6

0

26

Echo 20115-81780

THUMBSCREW
(Superseded to V299000430)

$3.99

$

In Stock, Qty 15

0

27

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 14

0

28

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$0.99

$

In Stock, Qty 20+

0

29

Echo 20018-81721

PLATE, PREVENT
(Superseded to A244000190)

$3.99

$

In Stock, Qty 9

0

30

Echo 70140-81810

SCREW - 5X67
(Superseded to V253000940)

$0.99

$

In Stock, Qty 10

0

31

Echo 19404-00008

LABEL - CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

34

Echo 60023-98020

DEFLECTOR, HEAT

Note: OPTIONAL

$9.49

$

Usually ships in 2-4 days

0

99909-159

Echo 99909-159

DIAPHRAGM/GASKET KIT

Note: (After S/N 1100001)

$14.99

$

In Stock, Qty 11

0

99909-160

Echo 99909-160

REPAIR KIT

Note: (After S/N 1100001)

$7.49

$

In Stock, Qty 12

0
