R5-38SS01 - Toro 38" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) BAFFLE & COVER ASSEMBLY Parts Diagram

38" Recycler Mower Deck

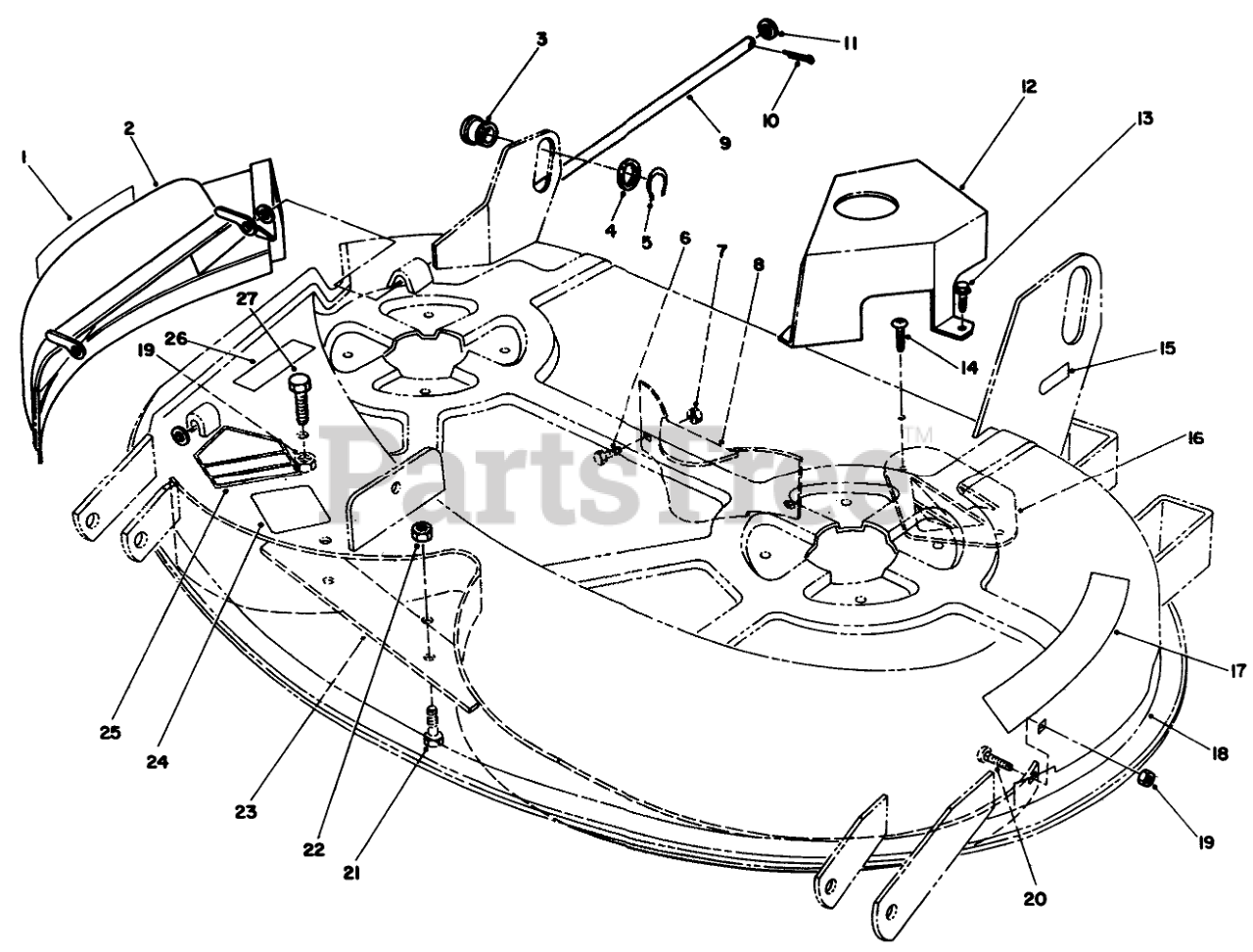

BAFFLE & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

2

Toro 79-1680

Chute-Recycler
(Superseded to 92-5787)

$

$

Not available

3

Toro 78-7340

ROLLER-LIFT

$12.99

$

In Stock, only 2 left!

0

4

Toro 920239

Washer
(Superseded to 9202394)

$2.49

$

In Stock, only 1 left!

0

5

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 18

0

6

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 13

0

7

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$59.99

$

Usually ships in 3-6 days

0

9

Toro 78-0820

ROD

$

$

Not available

10

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

11

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

12

Toro 78-6840

Cover-Belt
(Superseded to 78-6840-03)

$66.99

$

In Stock, only 1 left!

0

13

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

15

Toro 115196

Decal-Attach-A-Matic
(Superseded to 93-0322)

$4.99

$

Usually ships in 3-6 days

0

16

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

17

Toro 79-3140

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

18

Toro 79-1311

DECAL-38" RECYCLER
(Superseded to 92-9520)

$38.99

$

Usually ships in 3-6 days

0

19

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

20

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

21

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 7

0

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

23

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$94.99

$

Usually ships in 3-6 days

0

24

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$6.49

$

In Stock, only 1 left!

0

25

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

26

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

27

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 10

0
