R5-42RY01 - Toro 42" Rear-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) BAFFLE ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck

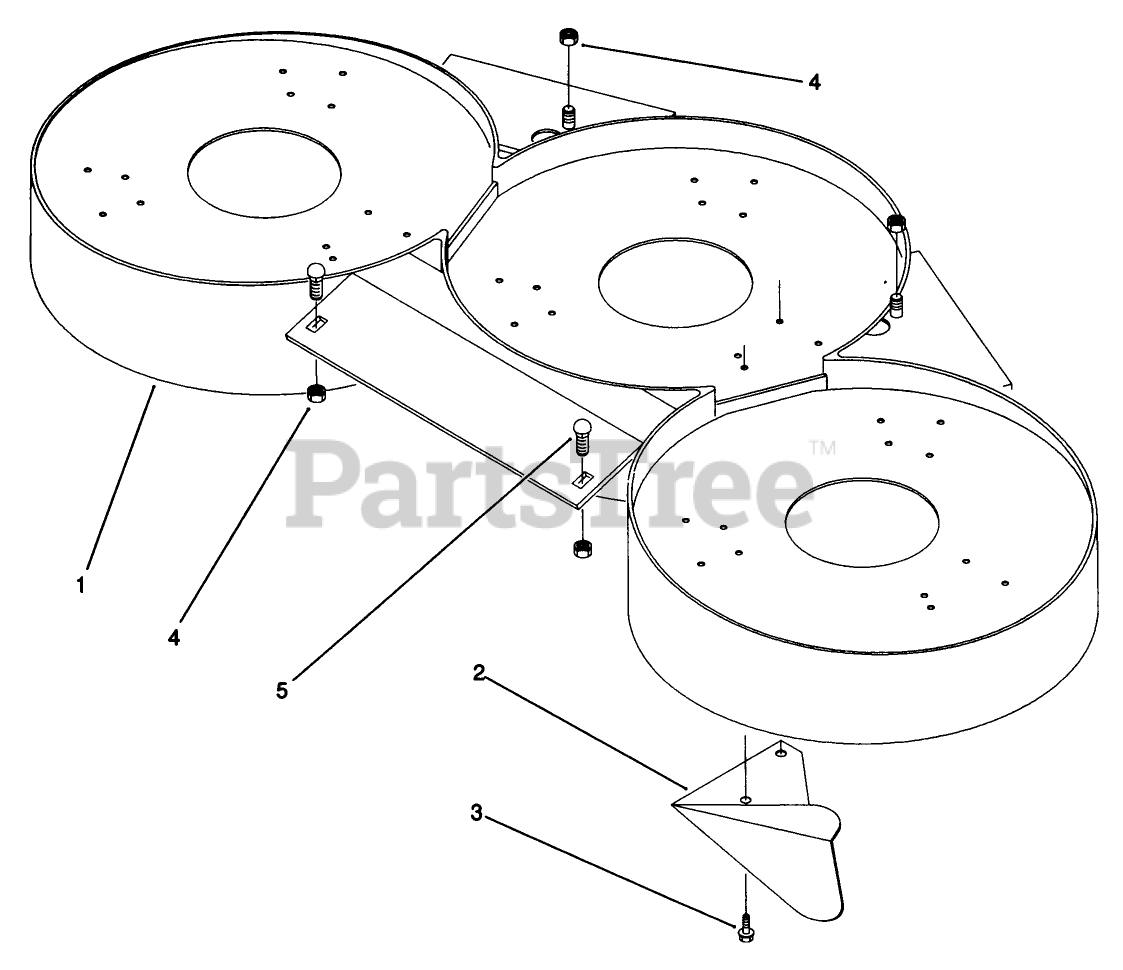

BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 79-2960

Baffle
(Superseded to 79-2960-03)

$

$

Not available

2

Toro 80-2630

Kicker
(Superseded to 80-2630-03)

$31.99

$

In Stock, only 4 left!

0

3

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

5

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0
