RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Throttle Control Parts Diagram

Backpack Brush Cutter

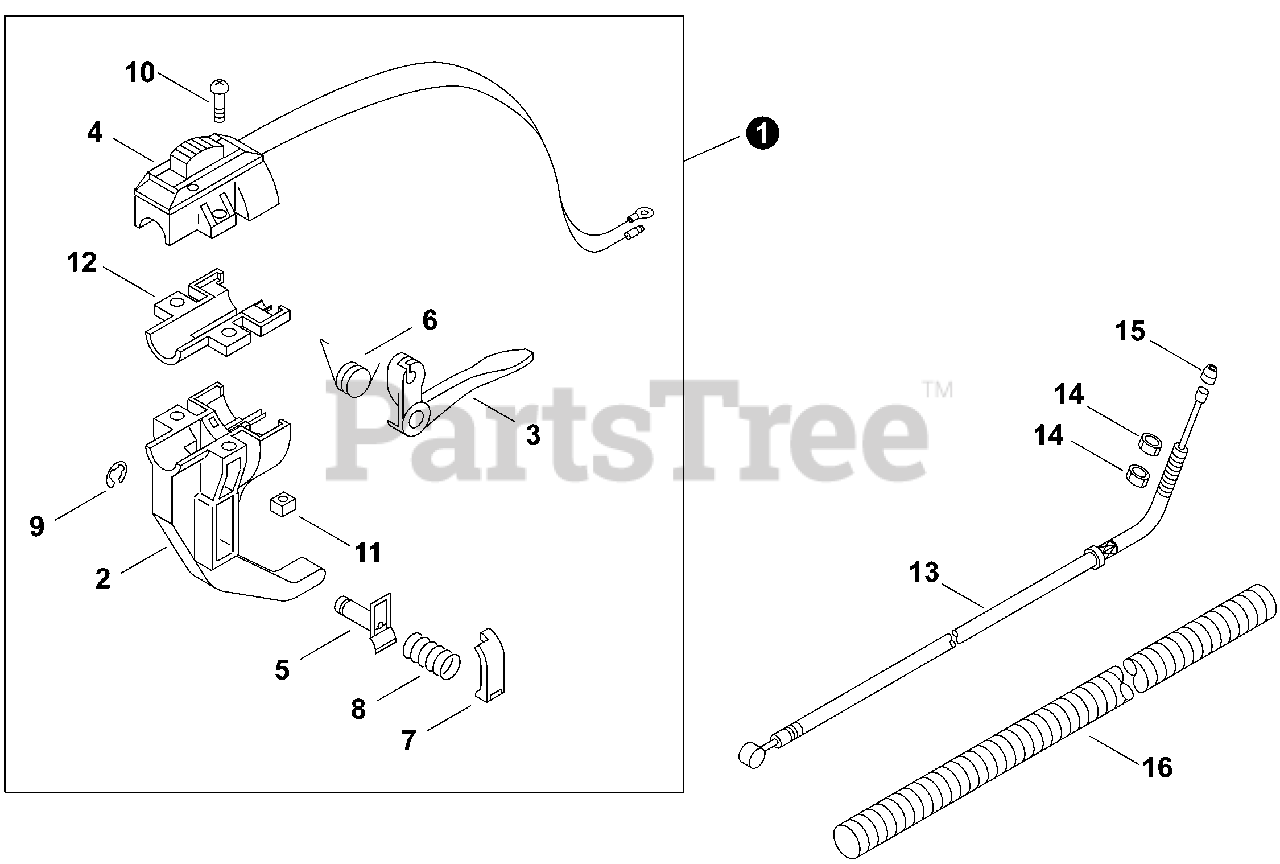

Throttle Control Parts Diagram

  • Title

1

Echo P022043570

TRIGGER ASSY, THROTTLE

$51.99

$

Usually ships in 2-4 days

0

2

Echo P022043580

BRACKET, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

3

Echo C450000500

TRIGGER, THROTTLE

$16.99

$

Usually ships in 2-4 days

0

4

Echo P022043590

COVER ASSY

$41.99

$

Usually ships in 2-4 days

0

5

Echo P022007780

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

6

Echo V452000480

SPRING, RETURN

$1.99

$

In Stock, Qty 17

0

7

Echo P022007810

LATCH, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

8

Echo P022007800

SPRING, TORSION

$2.49

$

Usually ships in 2-4 days

0

9

Echo P022032540

E-RING
(Superseded to 90070000006)

$0.99

$

In Stock, Qty 5

0

10

Echo P022033000

SCREW

$1.49

$

Usually ships in 2-4 days

0

11

Echo P022043600

NUT

$0.99

$

Usually ships in 2-4 days

0

12

Echo P022043610

HOLDER, CABLE

$4.49

$

Usually ships in 2-4 days

0

13

Echo V430005000

CABLE, THROTTLE

$22.99

$

Usually ships in 2-4 days

0

14

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 3 left!

0

15

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

16

Echo P022043630

TUBE

$7.49

$

Usually ships in 2-4 days

0
