RT 600 - Toro Riding Trencher Traction Unit (2012) AUGER AND MOUNTING Parts Diagram

Riding Trencher Traction Unit

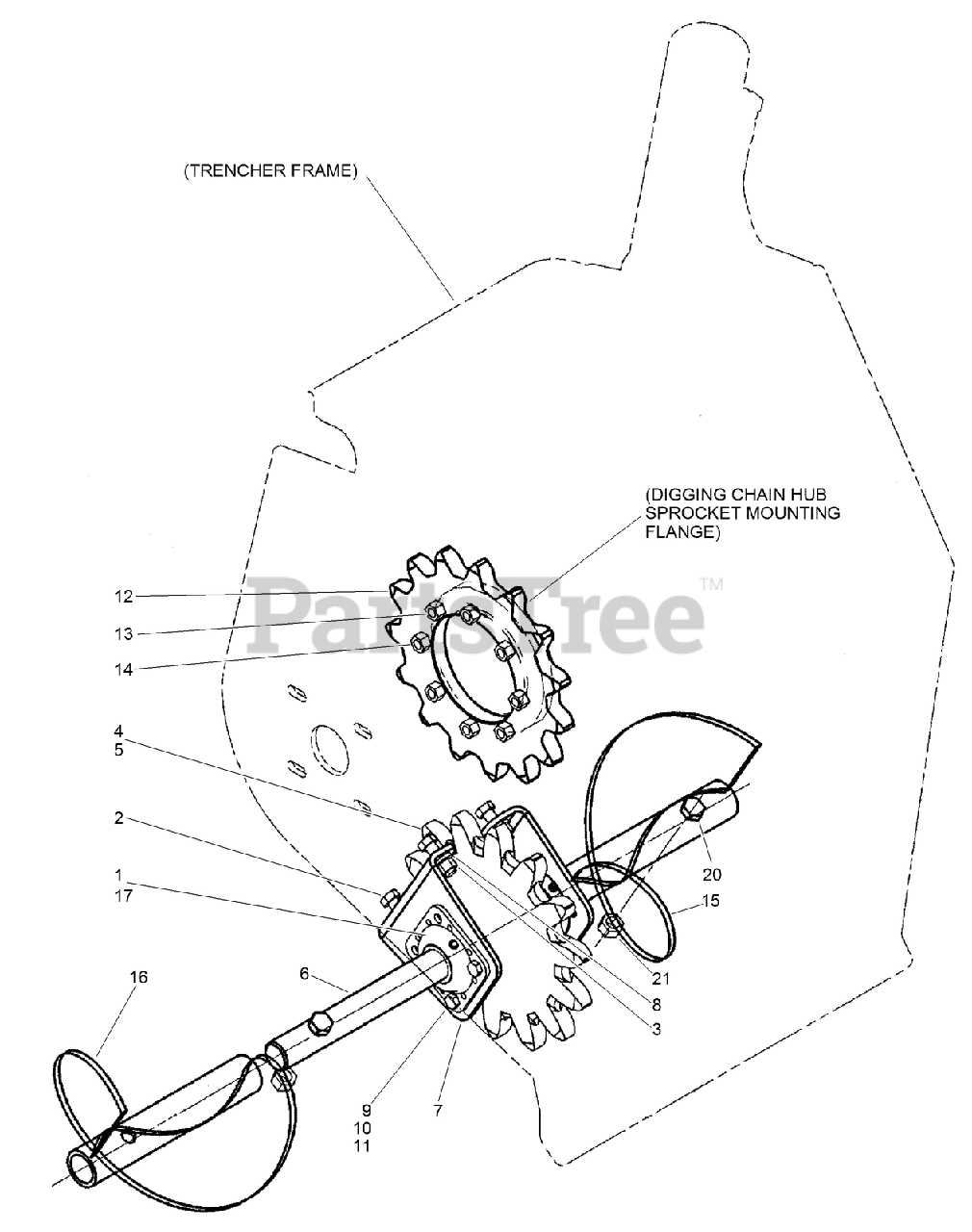

AUGER AND MOUNTING Parts Diagram

  • Title

Toro AU121485A1

ASM-Chain and Auger Drive

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUST491A

BEARING

$

$

Currently unavailable

2

Toro AU426-1032

BOLT-Hex Hd 0.625 x 2.00 GR8 ZND

$2.99

$

Usually ships in 3-6 days

0

3

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU126170A1

SPROCKET-auger drive, 14 teeth
(Superseded to AU126170A1-03)

$

$

Not available

5

Toro AUH433528

KEY-SQUARE

$

$

Currently unavailable

6

Toro AU108700A1

SHAFT-auger

$

$

Currently unavailable

7

Toro AU108699A1

PLATE-mounting, auger bearing
(Superseded to AU108699A1-03)

$

$

Not available

8

Toro AUH426809

WASHER-FLAT

$23.99

$

Usually ships in 3-6 days

0

9

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

10

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

11

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU104152A1

SPROCKET-Split 50/75K
(Superseded to AU104152A1-03)

$

$

Not available

13

Toro AU428-944

SCREW-HH

$

$

Not available

14

Toro AU131-1249

NUT-Hex, 1/2 NF

$

$

Currently unavailable

15

Toro AU108704A1

AUGER-spoil removal, left-hand
(Superseded to AU108704A1-03)

$

$

Not available

16

Toro AU108705A1

AUGER-spoil removal, right-hand
(Superseded to AU108705A1-03)

$

$

Not available

17

Toro AU126436A1

WASHER

$

$

Currently unavailable

18

Toro AU7-47421

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU426-1248

BOLT-hex, 3/4 NC x 3 inch, grade 8
(Superseded to 328-25)

$5.49

$

Usually ships in 3-6 days

0

21

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0
