RT 600 - Toro Riding Trencher Traction Unit (2012) BACKFILL BLADE LIFT CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

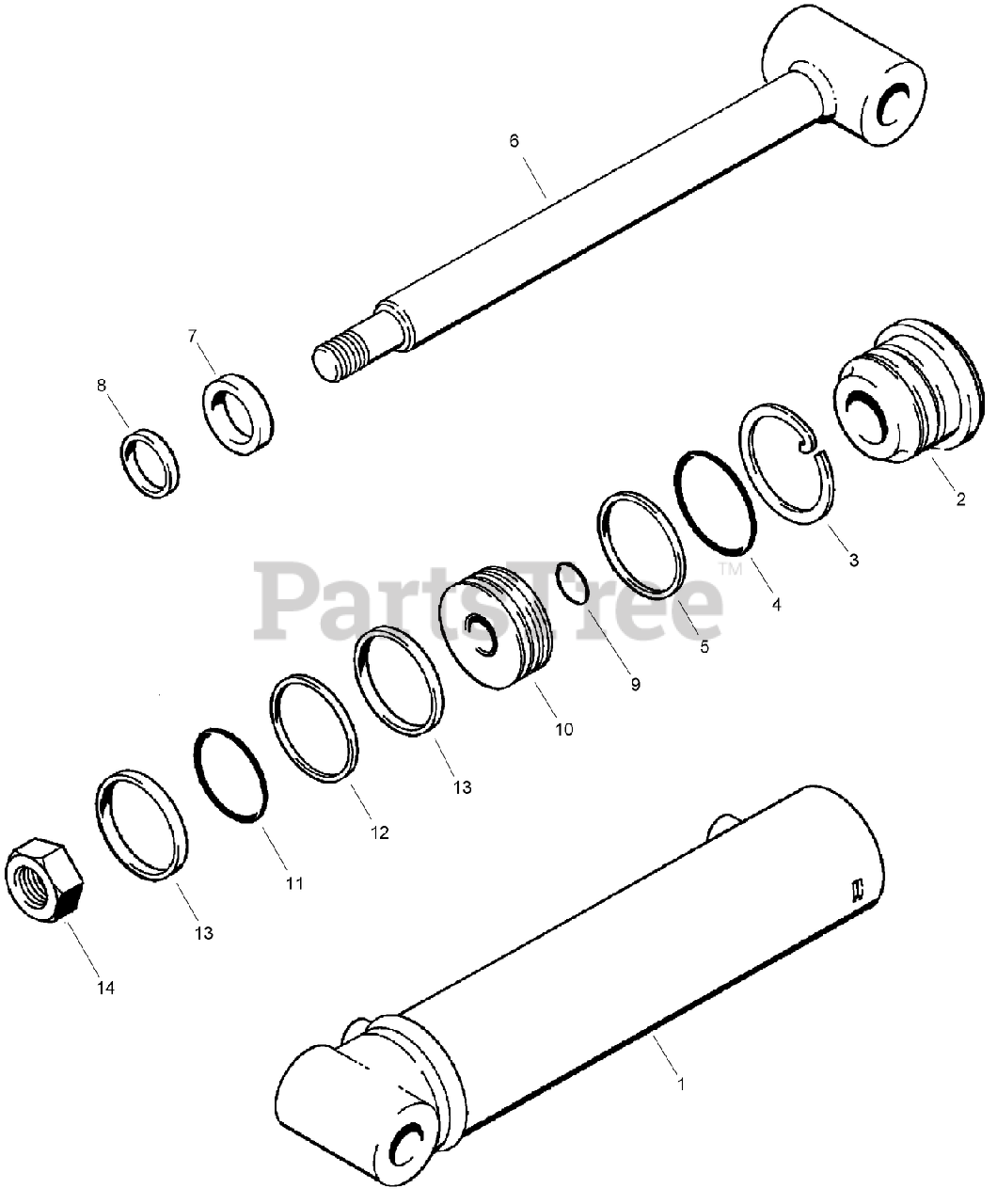

BACKFILL BLADE LIFT CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AUH674312

HYD CYLINDER ASM

Note: Not illustrated

$

$

Not available

1

Toro AUH674937

CASE ASM

$

$

Currently unavailable

2

Toro AU85260C1

HEAD

$

$

Currently unavailable

3

WIRE-locking, gland

Note: Not serviced separately

$

$

Not available

4

O-RING-gland

Note: Not serviced separately

$

$

Not available

5

RING-backup, gland O-ring

Note: Not serviced separately

$

$

Not available

6

Toro AUH674938

ROD-piston

$

$

Currently unavailable

7

WIPER-piston rod

Note: Not serviced separately

$

$

Not available

8

SEAL-U-cup, piston rod

Note: Not serviced separately

$

$

Not available

9

O-RING-piston rod, nut end

Note: Not serviced separately

$

$

Not available

10

Toro AUH439025

PISTON

$

$

Not available

11

O-RING-piston

Note: Not serviced separately

$

$

Not available

12

RING-backup, piston O-ring

Note: Not serviced separately

$

$

Not available

13

RING-wear, piston

Note: Not serviced separately

$

$

Not available

14

Toro AU232-46314

NUT-LOCK

$

$

Not available

Toro AUH674940

KIT-seal, includes all items with an asterisk

Note: Not illustrated

$

$

Currently unavailable
