RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

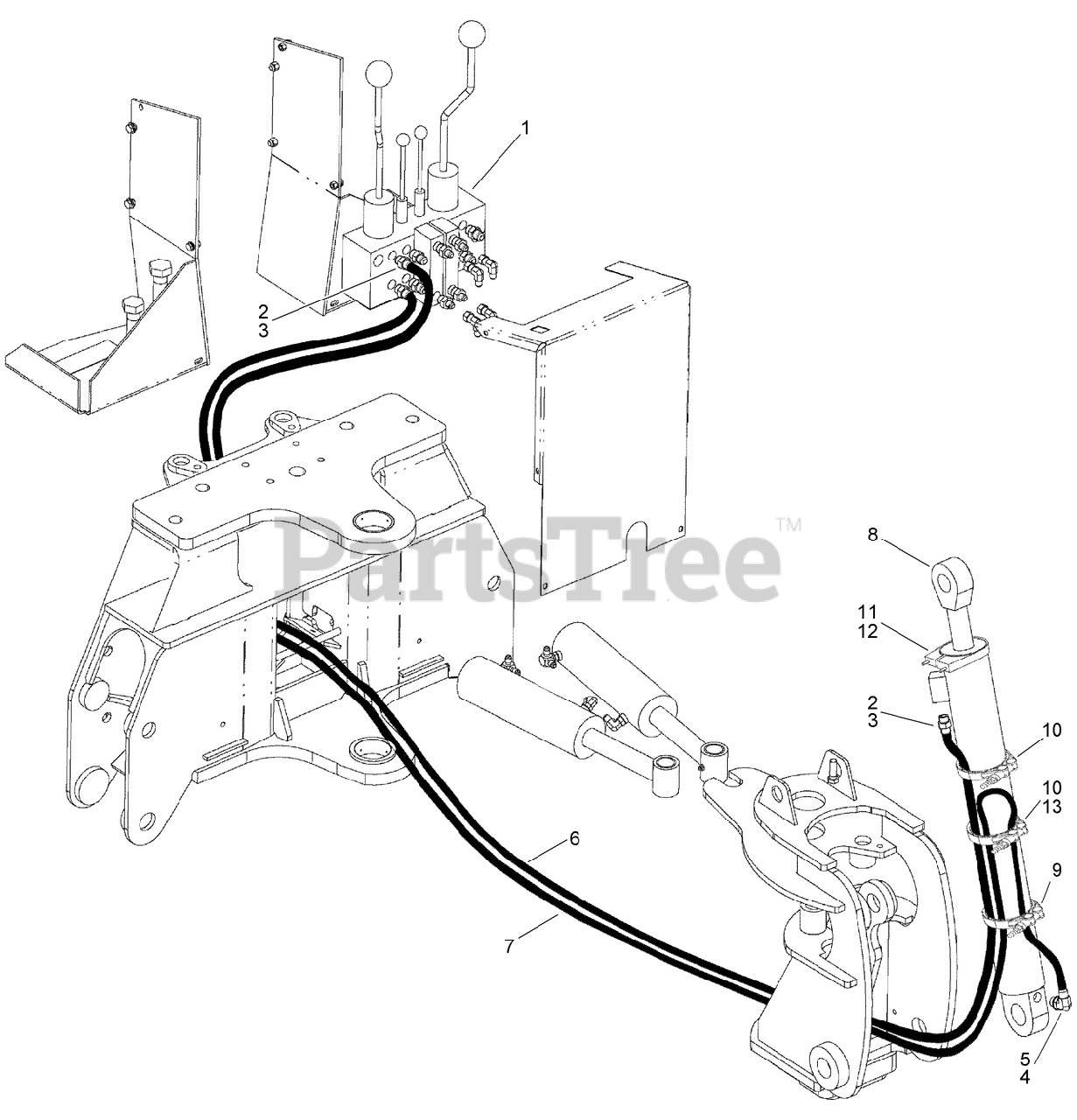

BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT HD125 BACKHOE Parts Diagram

  • Title

1

Toro AU87400034

HYD CONTROL VALVE ASM

$

$

Not available

2

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AUH439269

ELBOW-90 DEG

$

$

Currently unavailable

5

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU113717

HOSE-to rod end of boom cylinder

$

$

Not available

7

Toro AU113718

TUBE-to closed end of boom cylinder

$

$

Not available

8

Toro AU305352A1

HYD CYLINDER ASM

$

$

Not available

9

Toro AU214-1460

CLAMP-Hose Type F #60

$

$

Currently unavailable

10

Toro AU214-1488

CLAMP-HOSE

$

$

Not available

11

Toro AU304650A1

CLAMP

$

$

Currently unavailable

12

Toro AU515-23190

CLAMP-Insul 19.0 mm 3/8 in Bolt ZND

$1.99

$

Usually ships in 3-6 days

0

13

Toro AUD38648

SADDLE-SUPPORT, TUBE

$

$

Currently unavailable
