RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

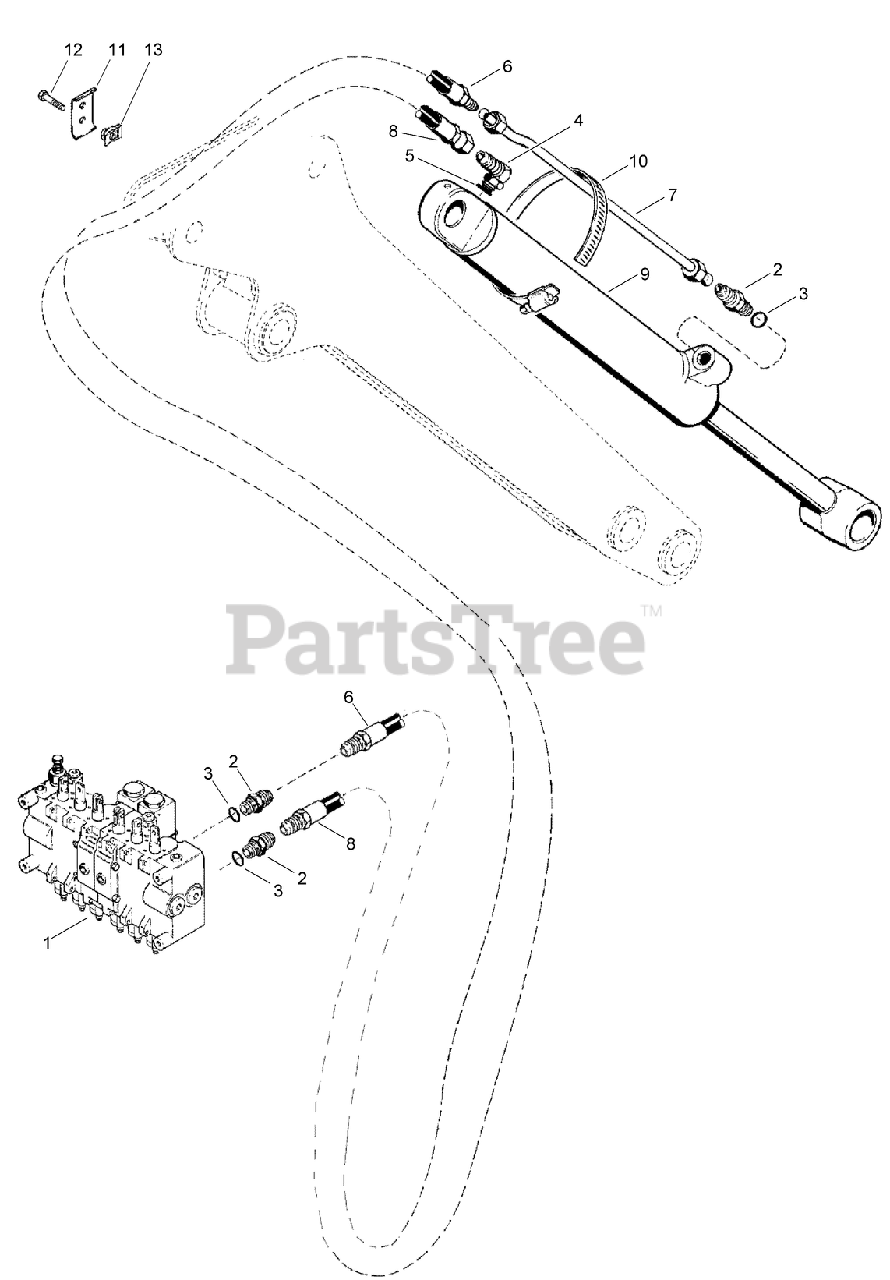

BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT HD125 BACKHOE Parts Diagram

  • Title

1

Toro AU87400034

HYD CONTROL VALVE ASM

$

$

Not available

2

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AUH439269

ELBOW-90 DEG

$

$

Currently unavailable

5

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH438685

HOSE-3330 mm (131-1/8 inch) long, to closed end of bucket cylinder

$

$

Currently unavailable

7

Toro AUH674567

TUBE-Hydraulic, Bucket

$

$

Currently unavailable

8

Toro AUH438227

HOSE-3310 mm (130-5/16 inch) long, to tube at rod end of bucket cylinder

$

$

Currently unavailable

9

Toro AU402216A1

HYD CYLINDER ASM (BUCKET)

$

$

Not available

10

Toro AU214-1460

CLAMP-Hose Type F #60

$

$

Currently unavailable

11

Toro AUH434900

CLAMP-TUBE

$

$

Currently unavailable

12

Toro AU426-524

BOLT-Hex, 5/16 NC x 1-1/2 inch
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 10

0

13

Toro AU230-4215

NUT-Prev Trq 5/16 GRA CAD NONDIR

$1.99

$

Usually ships in 3-6 days

0
