RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT D100 BACKHOE Parts Diagram

Riding Trencher Traction Unit

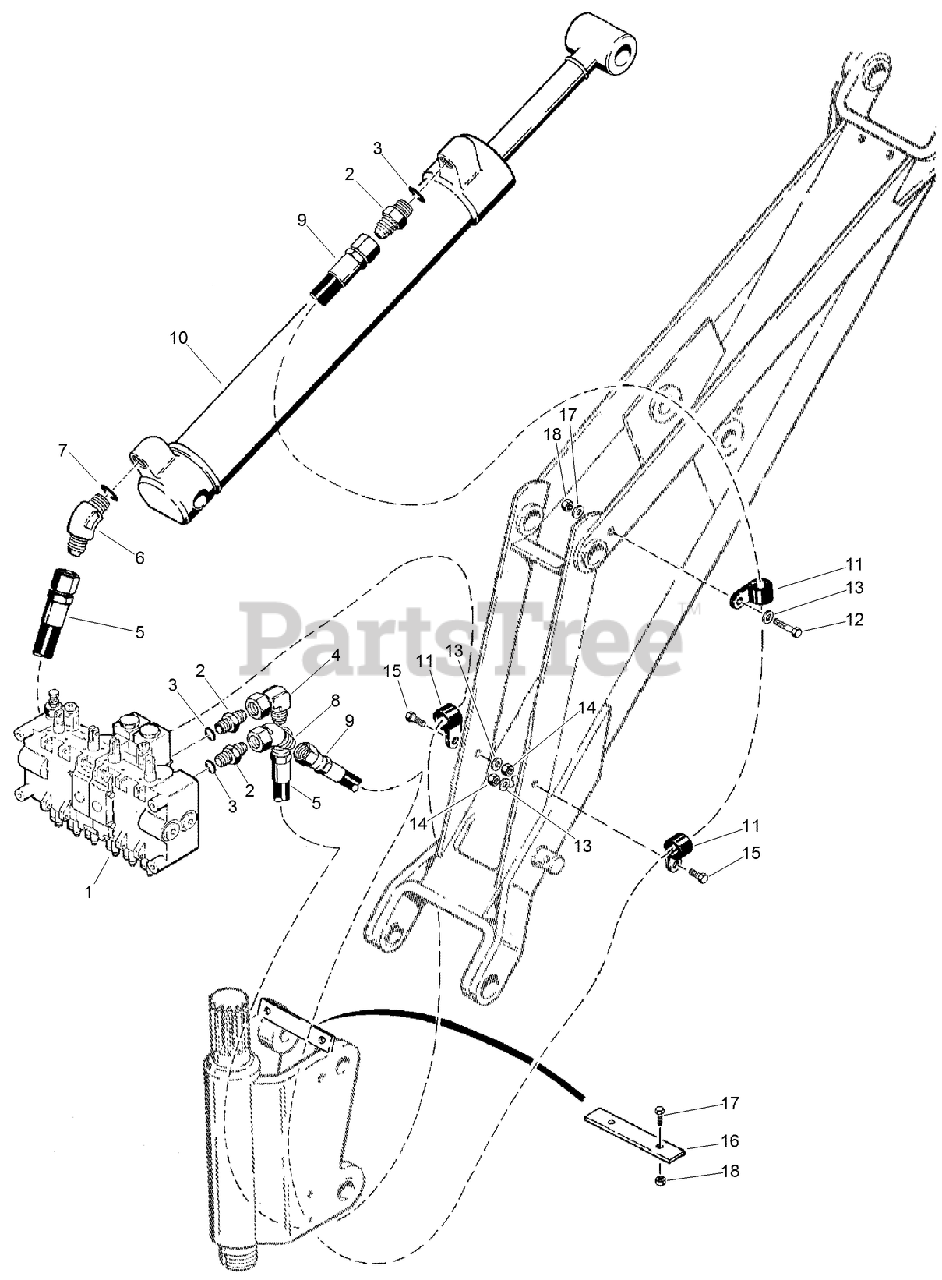

BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT D100 BACKHOE Parts Diagram

  • Title

1

Toro AU125583

VALVE-Backhoe, w/Special Low Leak Spools

$

$

Currently unavailable

2

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU218-5230

ELBOW-90 Swivel 37FL 1/2 Tube

$

$

Not available

5

Toro AUH434465

HOSE-1600 mm (63 inch) long, to closed end of dipper cylinder

$

$

Currently unavailable

6

Toro AU218-5136

ELBOW-45 degree, 3/4-16 inch flare x adj O-ring boss

$

$

Not available

7

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU218-5173

ELBOW-45 degree, 3/4-16 inch flare x swivel

$

$

Not available

9

Toro AUH434464

HOSE-2200 mm (86-5/8 inch) long, to rod end of dipper cylinder

$

$

Currently unavailable

10

Toro AUG100936

CYLINDER-Backhoe

$

$

Not available

11

Toro AUH51763

CLAMP-Tube

$6.49

$

Usually ships in 3-6 days

0

12

Toro AU426-416

BOLT-Hex Hd 0.250 x 1.00 GR8 ZND

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU495-11028

WASHER-FLAT

$

$

Not available

14

Toro AU230-4214

NUT-Prev Trq 1/4 GRA CAD NONDIR

$1.49

$

Usually ships in 3-6 days

0

15

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

16

Toro AUH434415

BRACKET-Hose Mtg

$

$

Currently unavailable

17

Toro AU426-424

BOLT-Hex Hd 0.250 x 1.50 GR8 ZND

$

$

Not available

18

Toro AU230-4214

NUT-Prev Trq 1/4 GRA CAD NONDIR

$1.49

$

Usually ships in 3-6 days

0
