RT 600 - Toro Riding Trencher Traction Unit (2012) BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT HD125 BACKHOE Parts Diagram

Riding Trencher Traction Unit

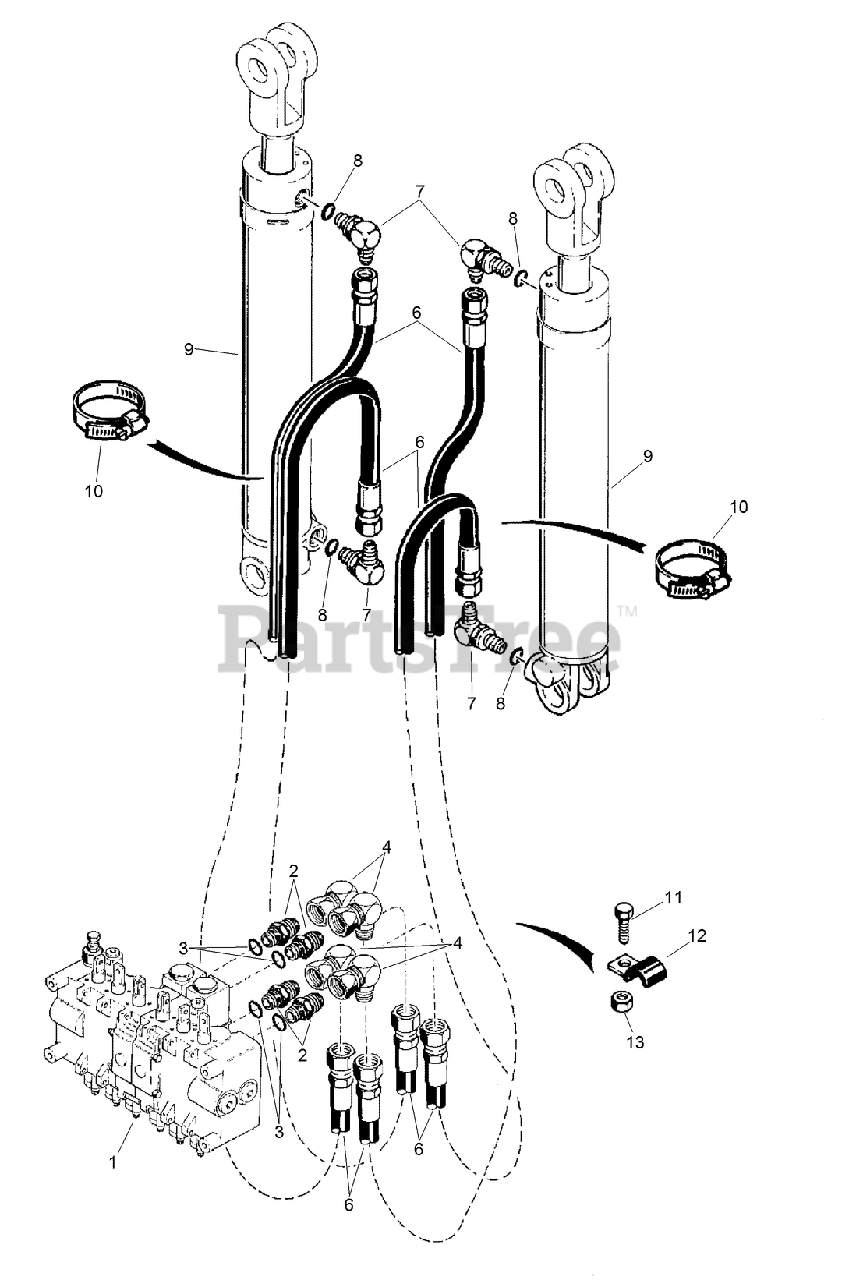

BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT HD125 BACKHOE Parts Diagram

  • Title

1

Toro AU87400034

HYD CONTROL VALVE ASM

$

$

Not available

2

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

3

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

6

Toro AU139517C1

HOSE

$

$

Currently unavailable

7

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

8

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU123115

HYD CYLINDER ASM

$

$

Not available

10

Toro AU214-1456

CLAMP-Hose #56

$6.99

$

Usually ships in 3-6 days

0

11

Toro AU426-524

BOLT-Hex, 5/16 NC x 1-1/2 inch
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 10

0

12

Toro AUH434900

CLAMP-TUBE

$

$

Currently unavailable

13

Toro AU231-5145

NUT-Hex Serrated Flange, 5/16 inch NC
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0
