RT 600 - Toro Riding Trencher Traction Unit (2012) HYDRAULIC OIL CHARGE FILTER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

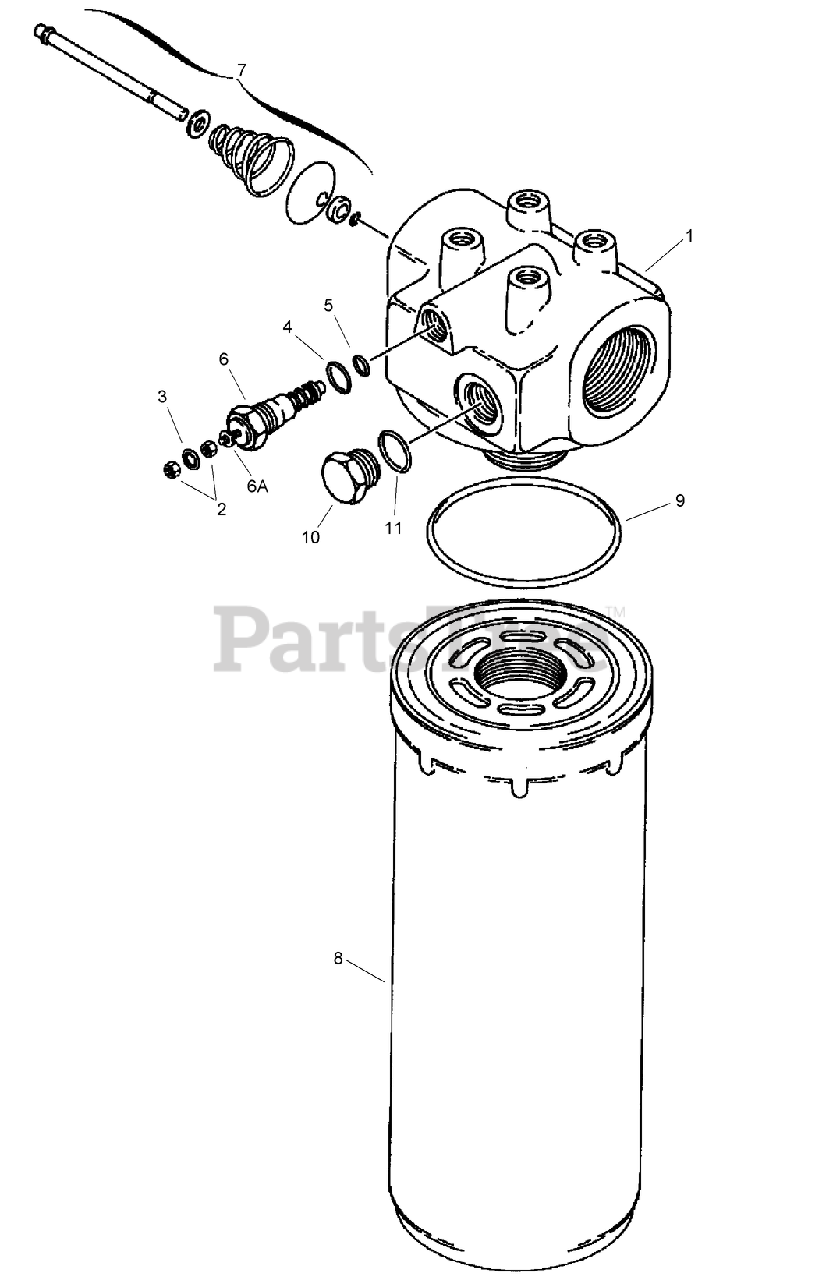

HYDRAULIC OIL CHARGE FILTER ASSEMBLY Parts Diagram

  • Title

Toro AUD125507

OIL FILTER ASM

Note: Not illustrated

$

$

Currently unavailable

1

Head-Filter

Note: Not serviced separately

$

$

Not available

Toro AUN13268

INDICATOR ASM-Restriction, Electrical

Note: Not illustrated

$131.99

$

Usually ships in 3-6 days

0

2

Toro AU129-667

NUT-Hex, Left-hand Thread, No. 10 NF

$

$

Not available

3

Toro AU493-21020

WASHER-Internal Tooth Lock, 3/16 inch

$

$

Not available

4

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

5

Toro AU238-5011

O-RING-5/16 ID x 1/16 inch Wide, Small
(Superseded to AU9672548)

$0.99

$

Usually ships in 3-6 days

0

6

INDICATOR-Restriction, Electric

Note: Not serviced separately

$

$

Not available

6A

WASHER-Identification, Red/White Color

Note: Not serviced separately

$

$

Not available

7

VALVE-Bypass, Filter

Note: Not serviced separately

$

$

Not available

Toro AUD126922

ELEMENT ASM-Filter

Note: Not illustrated

$

$

Currently unavailable

8

ELEMENT-Filter

Note: Not serviced separately

$

$

Not available

9

Toro AUA28318

O-RING-2-1/2 ID x 1/8 inch Wide, Filter Element to Head

$

$

Not available

10

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.49

$

Usually ships in 3-6 days

0

11

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0
