RT 600 - Toro Riding Trencher Traction Unit (2012) PLOW LIFT ARMS AND MOUNTING P85 PLOW Parts Diagram

Riding Trencher Traction Unit

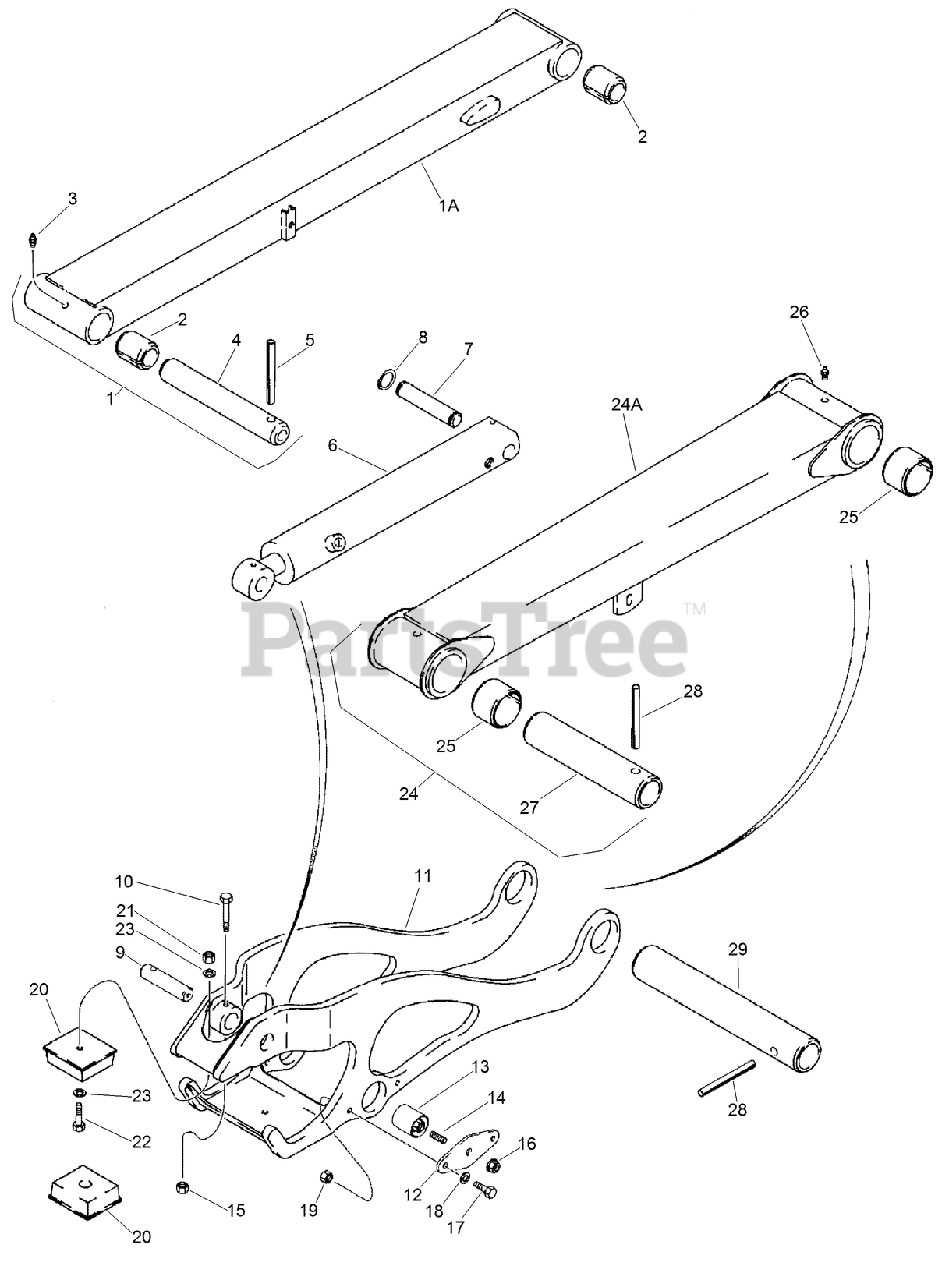

PLOW LIFT ARMS AND MOUNTING P85 PLOW Parts Diagram

  • Title

Toro AU112861A1

ASM-P85 Cable Plow

Note: Not illustrated

$

$

Currently unavailable

Toro AU112862A1

PLOW-P85, Basic

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH673808

ARM ASM-plow lift, upper

$

$

Currently unavailable

1A

ARM-plow lift, upper

Note: Not serviced separately

$

$

Not available

2

Toro AUH434904

BUSHING-plow lift arm
(Superseded to AU248445A1)

$128.99

$

Usually ships in 3-6 days

0

3

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

4

Toro AUH436862

PIN-PLOW ARM, UPPER

$

$

Currently unavailable

5

Toro AU38-34064

PIN-SPIRAL

$

$

Currently unavailable

6

Toro AU121737

CYLINDER-PLOW LIFT

$

$

Not available

7

Toro AUH434493

PIN-PLOW

$

$

Currently unavailable

8

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

9

Toro AUH436865

PIN-ROD

$

$

Currently unavailable

10

Toro AU426-648

BOLT-hex, 3/8 NC x 3 inch

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU116328A1

CRADLE-plow lift
(Superseded to AU116328A1-03)

$

$

Not available

12

Toro AU116158A1

PLATE-bumper mounting
(Superseded to AU116158A1-03)

$

$

Not available

13

Toro AUH438533

MOUNT-ISOLATOR

$

$

Currently unavailable

14

Toro AUH438537

STUD

$

$

Currently unavailable

15

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU231-5148

NUT-hex serrated flange, 1/2 inch NC
(Superseded to 32128-49)

$1.99

$

In Stock, Qty 15

0

17

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

20

Toro AUD90990

BUMPER
(Superseded to 136-3998)

$131.99

$

Usually ships in 3-6 days

0

21

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

23

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUH673809

ARM ASM-plow lift, lower
(Superseded to AUH673809-03)

$

$

Not available

24A

ARM-plow lift, lower

Note: Not serviced separately

$

$

Not available

25

Toro AUH434903

BUSHING

$

$

Currently unavailable

26

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

27

Toro AUH436864

PIN-PLOW ARM, LOWER REAR

$

$

Currently unavailable

28

Toro AU38-34064

PIN-SPIRAL

$

$

Currently unavailable

29

Toro AUH436863

PIN-lower plow lift arm, front

$

$

Currently unavailable
