RT 600 - Toro Riding Trencher Traction Unit (2012) PLOW SWING TOWER, LOWER LINK, AND SKID SHOES P75 PLOW Parts Diagram

Riding Trencher Traction Unit

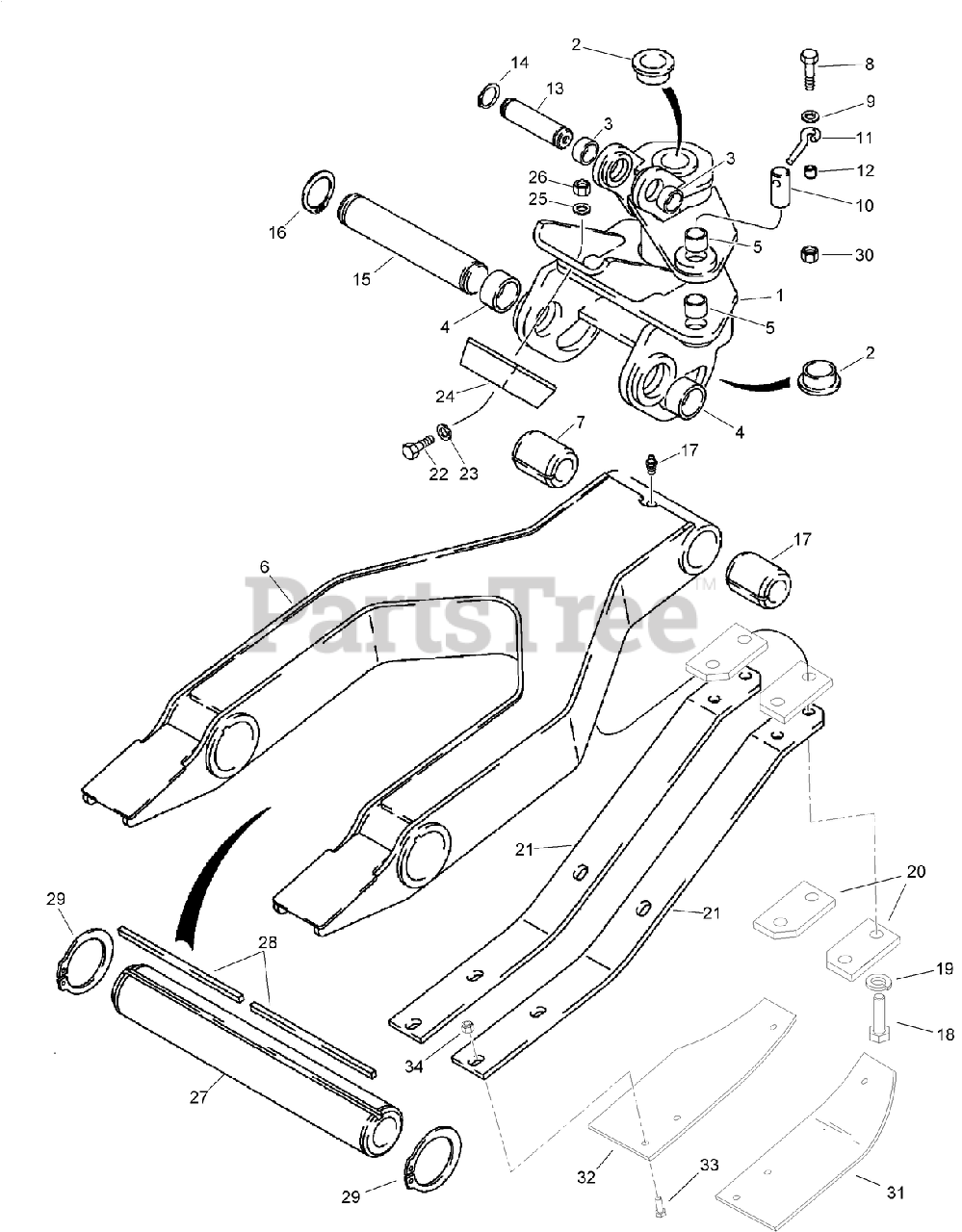

PLOW SWING TOWER, LOWER LINK, AND SKID SHOES P75 PLOW Parts Diagram

  • Title

1

Toro AU120718A1

TOWER-plow swing

$

$

Currently unavailable

2

Toro AUH433624

BUSHING-PIVOT, BUCKET

$65.99

$

Usually ships in 3-6 days

0

3

Toro AUD36333

BUSHING-plow swing tower, upper pivot

$112.99

$

Usually ships in 3-6 days

0

4

Toro AUD33024

BUSHING-25 mm (1 inch) long, plow swing tower, lower pivot

$74.99

$

Usually ships in 3-6 days

0

5

Toro AUD51608

BUSHING-arm, 25 mm (1 inch) ID, plow swing tower, swing cylinder pivot

$86.99

$

Usually ships in 3-6 days

0

6

Toro AU120729A1

ARM-plow lift

$

$

Not available

7

Toro AU248445A1

BUSHING-ARM, PLOW

$128.99

$

Usually ships in 3-6 days

0

8

Toro AU426-528

BOLT-hex, 5/16 NC x 1-3/4 inch

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU127396A1

PIN-pivot

$174.99

$

Usually ships in 3-6 days

0

11

Toro AUH313981

PIN-RETAINER

$62.99

$

Usually ships in 3-6 days

0

12

Toro AUH53959

SPACER-13 mm (1/2 inch) long

$

$

Not available

13

Toro AUD32933

PIN-pivot, swing tower, small

$176.99

$

Usually ships in 3-6 days

0

14

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

15

Toro AUD45523

PIN-pivot, 10-7/8 inch long, swing tower, large

$450.99

$

Usually ships in 3-6 days

0

16

Toro AU103-16200

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

17

Toro AU219-89

FITTING-grease, 45 degree, 1/8 PT self-tap x 25/32 inch

$3.99

$

Usually ships in 3-6 days

0

18

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.49

$

Usually ships in 3-6 days

0

19

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 1 left!

0

20

Toro AU367436A1

PLATE-skid shoe support

$22.99

$

Usually ships in 3-6 days

0

21

Toro AU127336A1

SHOE-skid, plow

$1070.99

$

Usually ships in 3-6 days

0

22

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

23

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUD90990

BUMPER
(Superseded to 136-3998)

$131.99

$

Usually ships in 3-6 days

0

25

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

27

Toro AU120745A1

PIN-pivot, rear

$1147.99

$

Usually ships in 3-6 days

0

28

Toro AU120746A1

KEY-square, 9.5 x 250 mm, plow pivot pin, rear

$333.99

$

Usually ships in 3-6 days

0

29

Toro AU103-11300

RING-external retaining, No. 300, rear plow pivot pin retaining

$4.99

$

Usually ships in 3-6 days

0

30

Toro AU232-4115

NUT-HEX

$

$

Not available

31

Toro AUH149666

PLATE-skid shoe, right-hand

$190.99

$

Usually ships in 3-6 days

0

32

Toro AUH149674

PLATE-skid shoe, left-hand

$167.99

$

Usually ships in 3-6 days

0

33

Toro AU164-152

BOLT-hex socket head, 3/8 NF x 1 inch, grade 8
(Superseded to AU362-43816)

$0.99

$

Usually ships in 3-6 days

0

34

Toro AU131-1326

NUT-hex jam, self-locking, 3/8 inch NF
(Superseded to AU425-156)

$1.49

$

Usually ships in 3-6 days

0
