RT 600 - Toro Riding Trencher Traction Unit (2012) STEERING CONTROL VALVE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

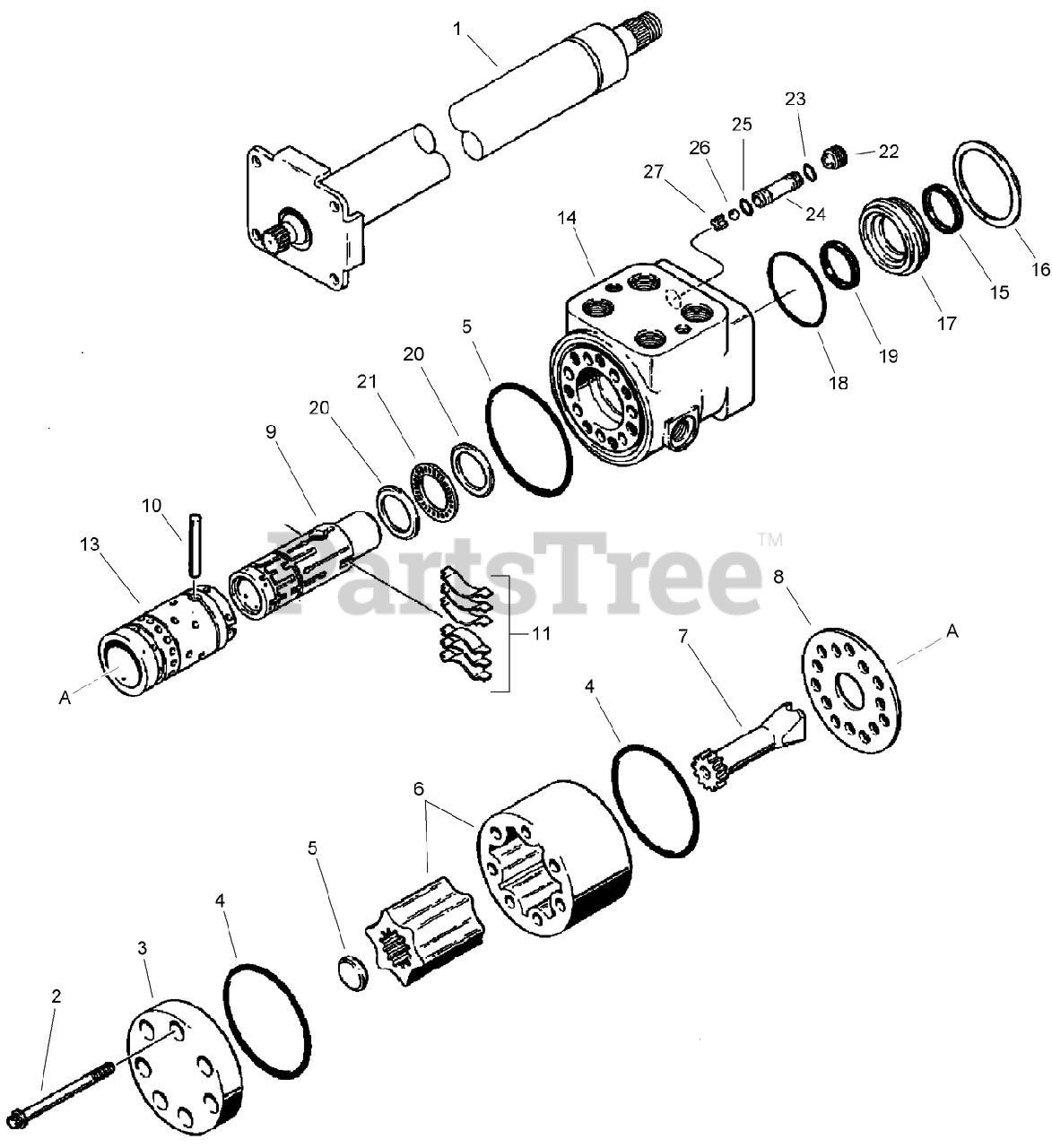

STEERING CONTROL VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro AUH672220

STEERING COLUMN ASM

$213.99

$

Usually ships in 3-6 days

0

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

Toro AU496-21041

WASHER-FLAT

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

Toro AU141535A1

HYD STEERING CONTROL VALVE ASM

Note: Not illustrated

$

$

Not available

2

Toro AU371196A1

BOLT-5/16 x 1-3/4

$

$

Not available

3

Toro AU135867A1

COVER-End

$

$

Not available

Toro AU135882A1

KIT-Seal (Includes items 4, 15, 18, 19, 23, and 25)

Note: Not illustrated

$

$

Currently unavailable

4

Toro AU238-5040

O-RING-End Cap, 2-7/8 ID x 1/16

$

$

Not available

5

Toro AUK964246

SPACER-Drive Shaft

$

$

Currently unavailable

6

Toro AU135868A1

GEROTOR

$

$

Currently unavailable

7

Toro AUL30878

SHAFT-Drive, Gerotor

$

$

Currently unavailable

8

Toro AU135869A1

PLATE

$

$

Currently unavailable

9

Spool

Note: Not serviced separately

$

$

Not available

9

Spool

Note: Not illustrated

$

$

Not available

10

Toro AU135874A1

PIN-Roll

$

$

Not available

Toro AUN14250

KIT-Centering Spring (Set of 6) (Includes items 11 and 12)

Note: Not illustrated

$

$

Currently unavailable

11

Toro AUL30889

SPRING

$

$

Currently unavailable

12

SPACER (If used)

Note: Not serviced separately

$

$

Not available

13

Sleeve

Note: Not serviced separately

$

$

Not available

14

Body-Valve

Note: Not serviced separately

$

$

Not available

15

Toro AUA28211

SEAL-Outer, 1 ID

$

$

Not available

16

Toro AUS110169

RING

$

$

Currently unavailable

17

Toro AUS110170

BUSHING

$

$

Currently unavailable

18

Toro AU238-5225

O-RING-1-7/8 ID x 1/8

$

$

Not available

19

Toro AUA72029

SEAL-Square Section, Outer

$

$

Not available

20

Toro AUD82804

RACE-Bearing, Thrust

$

$

Currently unavailable

21

Toro AUG13609

BEARING

$10.99

$

Usually ships in 3-6 days

0

22

Toro AUD82805

SETSCREW

$

$

Currently unavailable

23

Toro AU238-5012

O-RING-Outer, 3/8 ID x 1/16

$

$

Not available

24

Toro AUD82806

SEAT-Ball

$

$

Currently unavailable

25

Toro AUN8539

O-RING-Inner

$

$

Not available

26

Toro AU211-9

BALL-Chrome Alloy Steel, 5/16, Grade 24

$

$

Not available

27

Toro AUL35368

RETAINER-Check Ball

$

$

Currently unavailable
