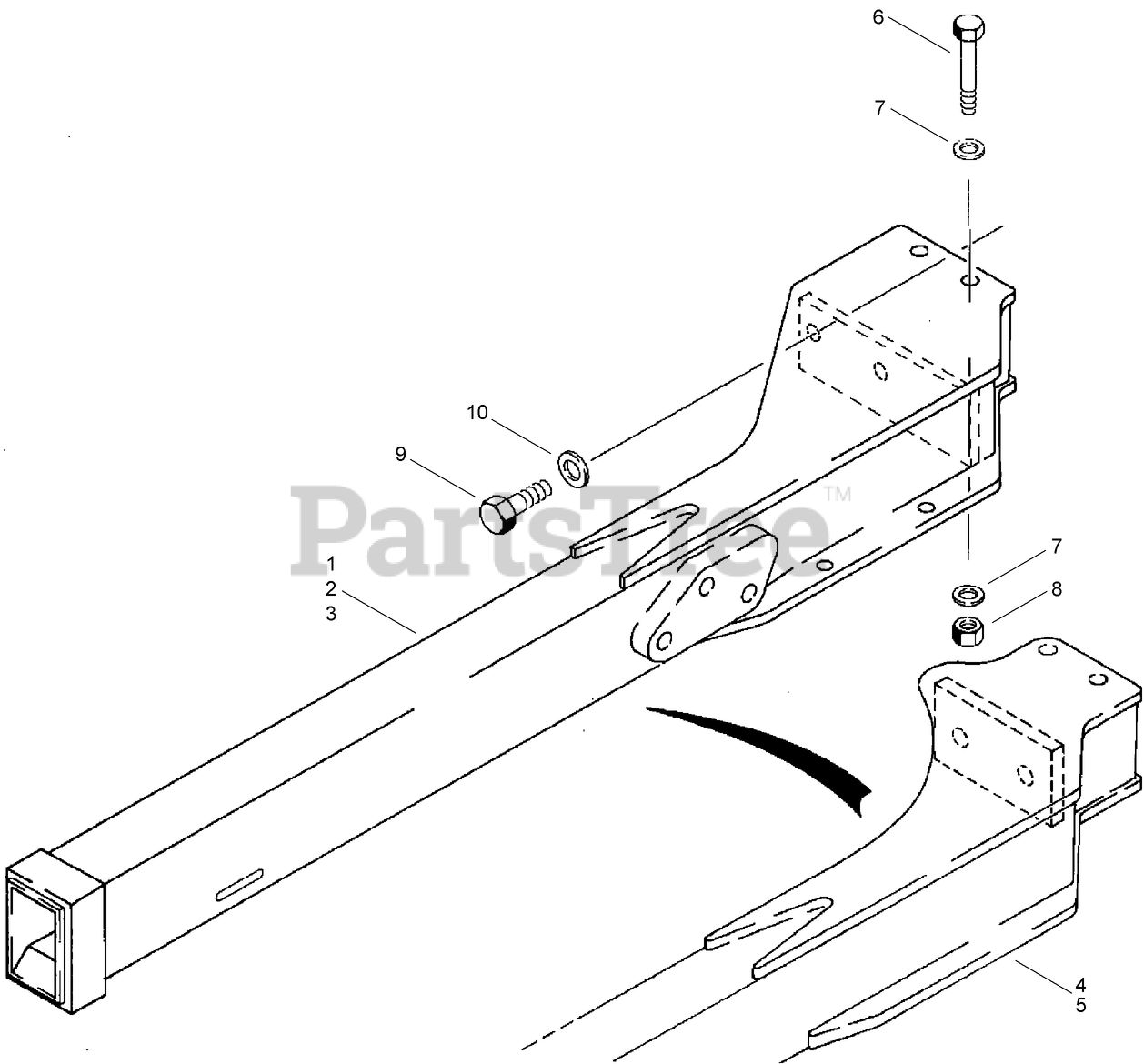

RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER SPROCKET BOOMS AND MOUNTING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

TRENCHER SPROCKET BOOMS AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AU135212A1

BOOM-trencher, 4 foot, heavy duty planetary drive trencher

$

$

Currently unavailable

2

Toro AU135213A1

BOOM-trencher, 5 foot, heavy duty planetary drive trencher

$

$

Currently unavailable

3

Toro AU135214A1

BOOM-trencher, 6 foot, heavy duty planetary drive trencher

$

$

Currently unavailable

4

Toro AU135203A1

BOOM-trencher, 4 foot, direct drive trencher

$

$

Currently unavailable

5

Toro AU135204A1

BOOM-trencher, 5 foot, direct drive trencher

$

$

Currently unavailable

6

Toro AU426-12104

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

7

Toro AUD34666

WASHER-flat, special, 3/4 inch

$

$

Not available

8

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU426-1632

BOLT

$15.99

$

Usually ships in 3-6 days

0

10

Toro AUD36505

WASHER-flat, special, 1-1/16 x 1-7/8 x 9/64 inch
(Superseded to AUH426833)

$9.99

$

Usually ships in 3-6 days

0
