SRM-140 D - Echo String Trimmer Engine, Crankcase, Ignition Parts Diagram

String Trimmer

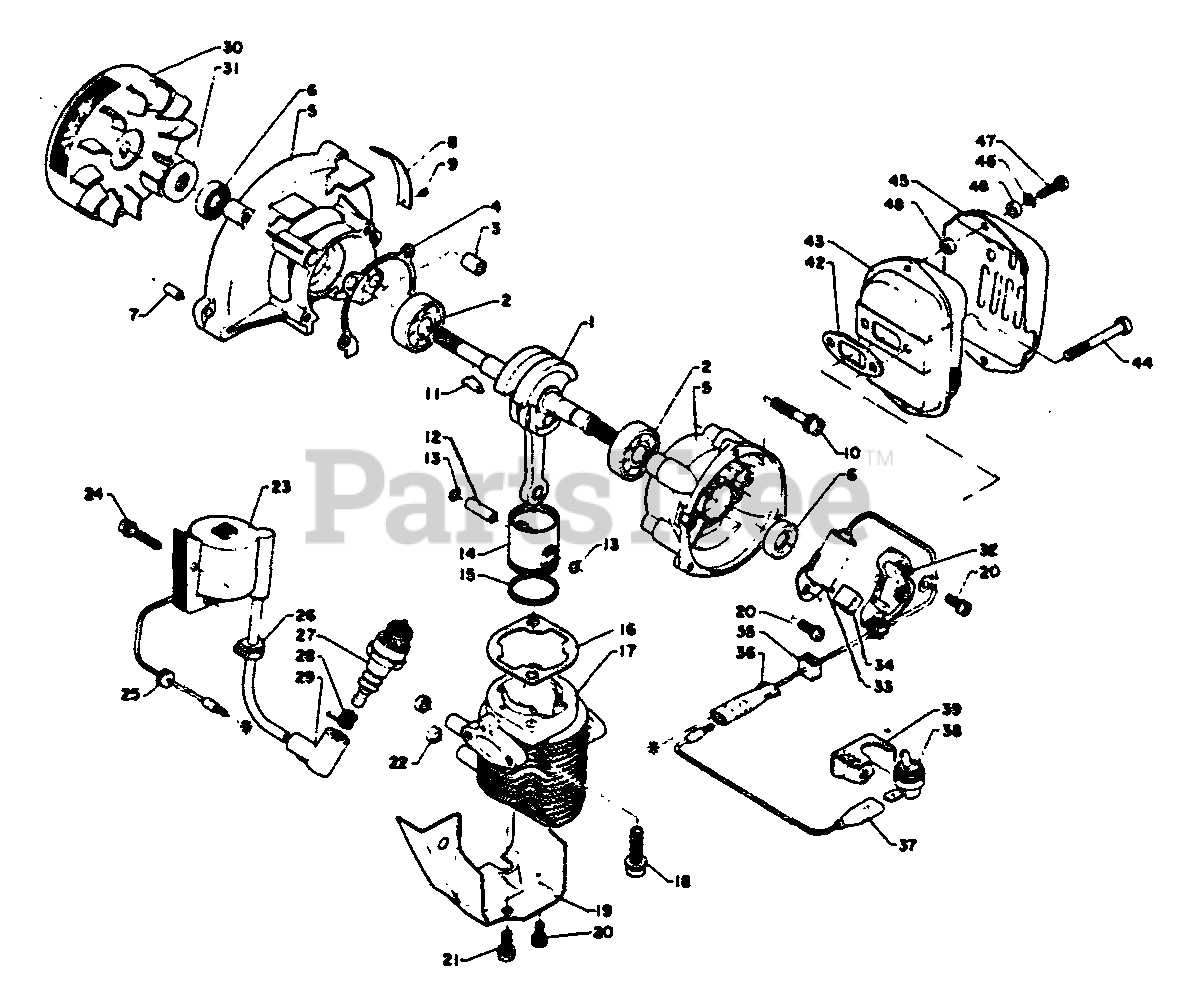

Engine, Crankcase, Ignition Parts Diagram

  • Title

1

Echo 10010006531

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 90081036200

BEARING, BALL - 6200
(Superseded to Discontinued)

$

$

Not available

3

Echo 10021505730

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

4

Echo 10024205931

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020005932

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

6

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

7

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

8

Echo 89011006030

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

11

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

12

Echo 10001306530

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

13

Echo 10001505930

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001006531

PISTON
(Superseded to Discontinued)

$

$

Not available

15

Echo 10001105930

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo 10101005930

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

17

Echo 10101106530

CYLINDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024206022

SCREW - 6X22
(Superseded to Discontinued)

$

$

Not available

19

Echo 10151405931

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

21

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 15211705930

SPACER
(Superseded to Discontinued)

$

$

Not available

23

Echo 15612606530

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

24

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

25

Echo 15211505930

GROMMET
(Superseded to Discontinued)

$

$

Not available

26

Echo 15211205730

GROMMET

$0.99

$

Usually ships in 2-4 days

0

27

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

28

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

29

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

30

Echo 15620006530

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

31

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

32

Echo 15210105930

CONTACT POINT SET

$23.99

$

Usually ships in 2-4 days

0

33

Echo 15212705530

CONDENSER
(Superseded to Discontinued)

$

$

Not available

34

Echo 15613404630

PAD, OIL

$2.49

$

Usually ships in 2-4 days

0

35

Echo 15211405530

GROMMET
(Superseded to Discontinued)

$

$

Not available

36

Echo 15213305530

CORD, PRIMARY
(Superseded to Discontinued)

$

$

Not available

37

Echo 15613106530

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

38

Echo 16340006530

SWITCH, IGNITION

$6.99

$

Usually ships in 2-4 days

0

39

Echo 16381006531

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

42

Echo 14551005930

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

43

Echo 14561006531

MUFFLER
(Superseded to Discontinued)

$

$

Not available

44

Echo 90022005042

SCREW - 5X40

$0.99

$

Usually ships in 2-4 days

0

45

Echo 14562106531

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

46

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 17

0

47

Echo 90024504014

SCREW - 4X14 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

48

Echo 14562006030

SPACER
(Superseded to Discontinued)

$

$

Not available
