SRM-202 FA - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

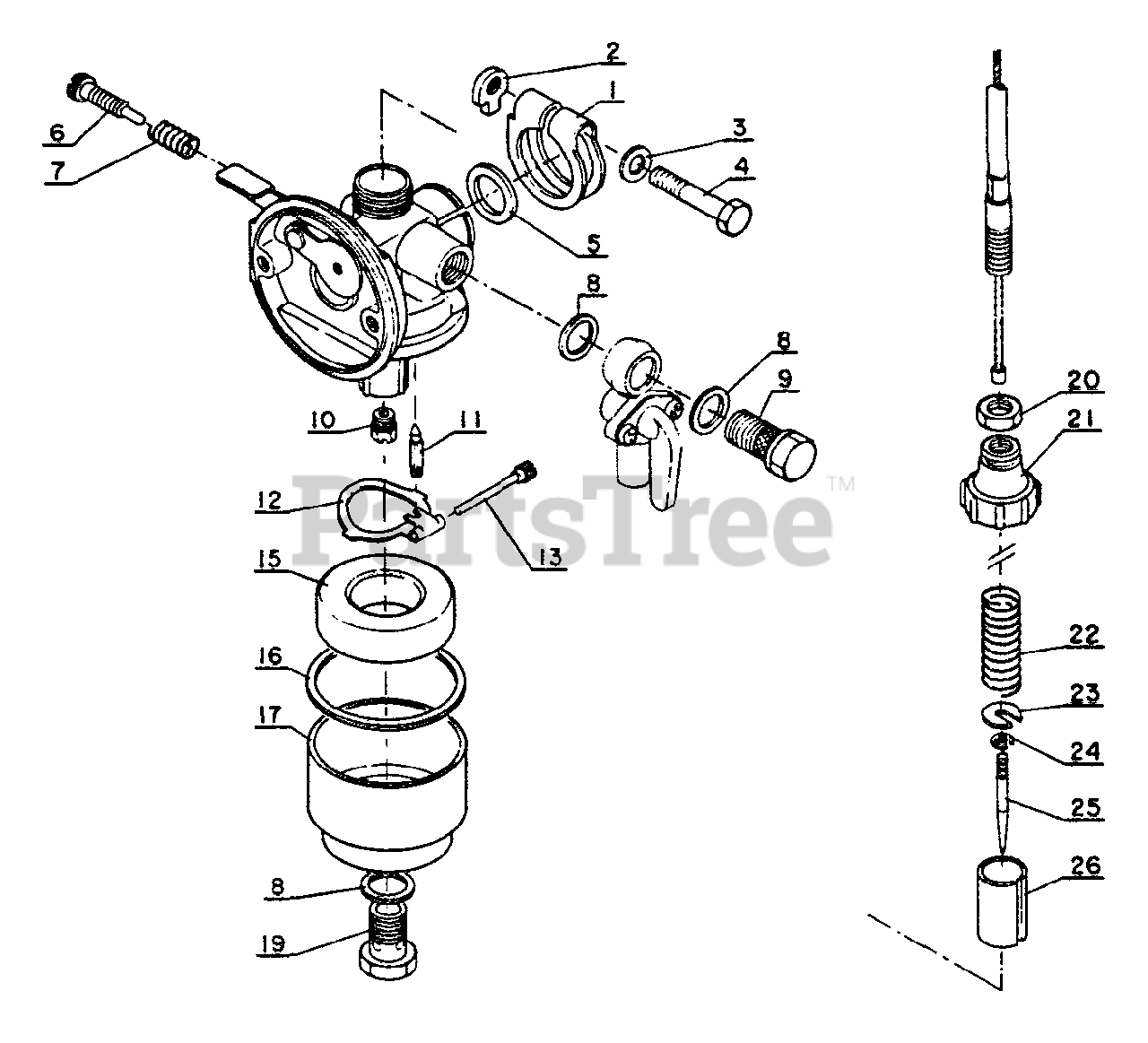

Carburetor Parts Diagram

  • Title

1

Echo 12000005330

CARBURETOR
(Superseded to 12000005331)

$

$

Not available

1

Echo 12025001321

NUT
(Superseded to 12015101321)

$

$

Not available

2

Echo 12024901321

CLIP
(Superseded to Discontinued)

$

$

Not available

3

Echo 12024801321

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 12024701321

BOLT
(Superseded to 12014701321)

$

$

Not available

5

Echo 12014901820

WASHER

$3.49

$

Usually ships in 2-4 days

0

6

Echo 12015904730

SCREW, IDLE ADJUST
(Superseded to 12015904731)

$

$

Not available

7

Echo 12016001321

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

8

Echo 12013000120

GASKET

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12013100120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

10

Echo 12012201820

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

11

Echo 12010201110

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 12012101820

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

13

Echo 12013201820

PIN, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

15

Echo 12013301820

FLOAT
(Superseded to Discontinued)

$

$

Not available

16

Echo 12012301820

GASKET, FLOAT CHAMBER
(Superseded to Discontinued)

$

$

Not available

17

Echo 12012401820

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

19

Echo 12012801820

BOLT
(Superseded to Discontinued)

$

$

Not available

20

Echo 12011104730

NUT
(Superseded to Discontinued)

$

$

Not available

21

Echo 12011304730

COVER - TOP
(Superseded to Discontinued)

$

$

Not available

22

Echo 12011401820

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12011500120

SEAT, SPRING
(Superseded to 12011508020)

$

$

Not available

24

Echo 12011600120

RING, RETAINING
(Superseded to 12010305330)

$

$

Not available

25

Echo 12011705330

NEEDLE, JET
(Superseded to 12010305330)

$

$

Not available

26

Echo 12011805330

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available
