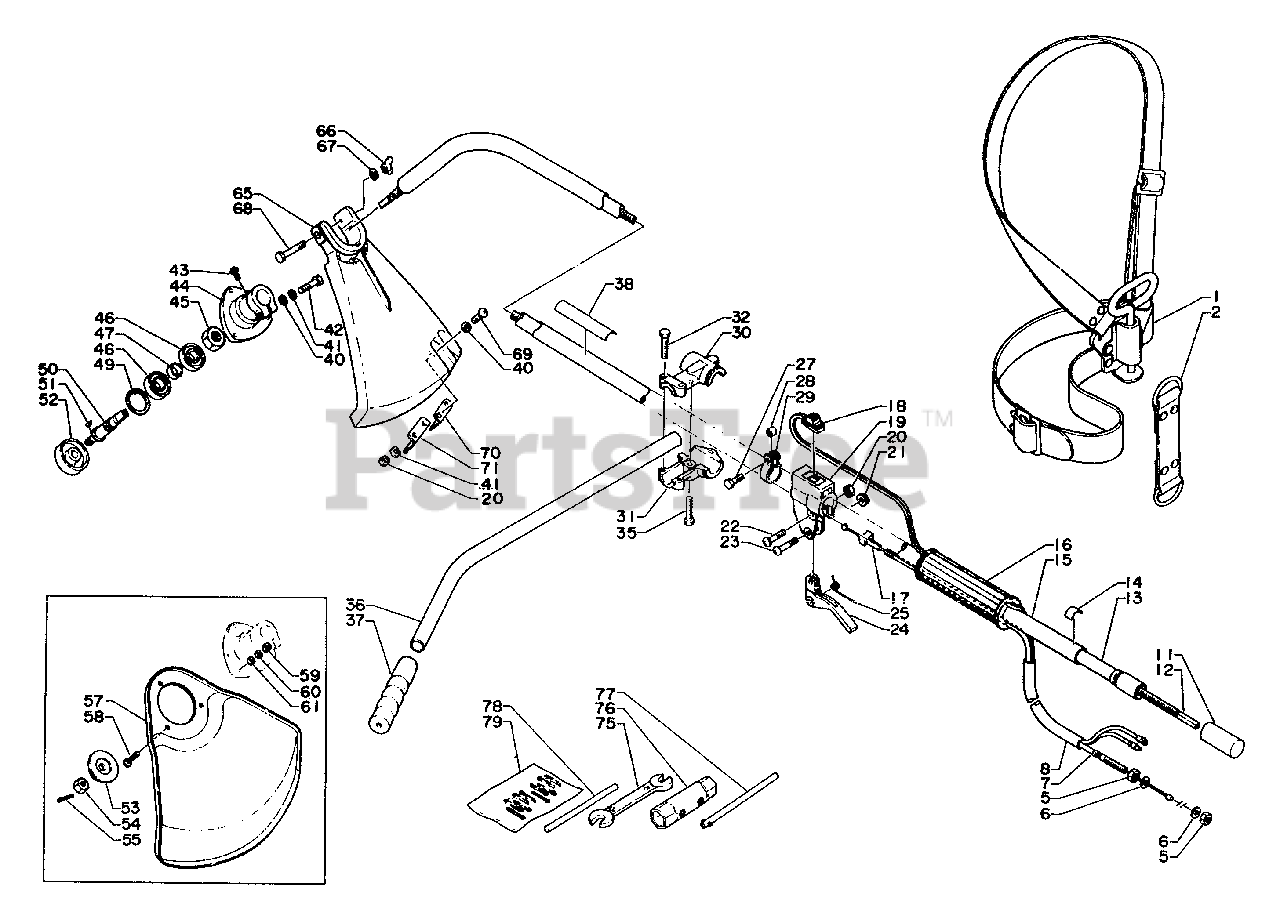

SRM-210 E - Echo String Trimmer Driveshaft, Handles, Harness, Throttle, Stop Switch, Gear Case, Shield, Tools Parts Diagram

String Trimmer

Driveshaft, Handles, Harness, Throttle, Stop Switch, Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

$82.99

$

Usually ships in 2-4 days

0

2

Echo 30130507530

STRAP
(Superseded to Discontinued)

$

$

Not available

5

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

6

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 17800109630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 17812709630

TUBE
(Superseded to 17812724030)

$0.99

$

In Stock, Qty 10

0

11

------------------

CAP

$

$

Not available

12

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

$23.99

$

In Stock, only 1 left!

0

13

Echo 61021723330

LINER
(Superseded to Discontinued)

$

$

Not available

14

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

15

Echo 61021023330

PIPE, MAIN
(Superseded to 61021023331)

$52.99

$

Usually ships in 2-4 days

0

16

Echo 35111109630

GRIP, HANDLE
(Superseded to 35111144530)

$12.99

$

Usually ships in 2-4 days

0

17

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

18

Echo 16340009630

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 17802409630

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

22

Echo 90024105028

SCREW - 5X28
(Superseded to 90024205028)

$0.99

$

In Stock, Qty 9

0

23

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 20+

0

24

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 20+

0

25

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

27

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

28

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 16

0

29

Echo 30120723330

HOOK

$4.99

$

Usually ships in 2-4 days

0

Echo 35160109930

HANDLE BRACKET KIT
(Superseded to 35160125130)

$

$

Not available

30

------------------

BRACKET

$

$

Not available

31

------------------

BRACKET

$

$

Not available

32

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 10

0

35

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

36

Echo 35161009930

HANDLE
(Superseded to Discontinued)

$

$

Not available

37

Echo 35121305930

GRIP, HANDLE

$6.49

$

Usually ships in 2-4 days

0

38

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$3.99

$

Usually ships in 2-4 days

0

Echo 61040023330

GEAR CASE ASSY

$168.99

$

Usually ships in 2-4 days

0

40

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

41

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

42

Echo 90015005025

BOLT - 5X25
(Superseded to Discontinued)

$

$

Not available

43

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

44

Echo 61041023330

CASE, BEARING
(Superseded to Discontinued)

$

$

Not available

45

Echo 99051300012

NUT - 12 -- LEFT HAND
(Superseded to Discontinued)

$

$

Not available

46

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 2 left!

0

47

Echo 61031506530

SPACER

$1.49

$

Usually ships in 2-4 days

0

48

------------------

UNKNOWN

$

$

Not available

49

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 20+

0

50

Echo 61031023330

GEAR - SHAFT
(Superseded to Discontinued)

$

$

Not available

51

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

52

Echo 61031306530

ADAPTOR, BLADE - UPPER

$15.99

$

Usually ships in 2-4 days

0

53

Echo 61031406030

ADAPTOR, BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

54

Echo 61032023330

NUT - 3/8-24

$2.49

$

Usually ships in 2-4 days

0

55

------------------

PIN, SPLIT

$

$

Not available

57

Echo 69900007330

SHIELD ASSY - METAL
(Superseded to Discontinued)

$

$

Not available

58

Echo 90022004018

SCREW - 4X18

$0.99

$

In Stock, only 3 left!

0

59

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

60

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

61

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 17

0

65

Echo 69900023330

SHIELD ASSY - PLASTIC
(Superseded to 69900040630)

$19.99

$

In Stock, Qty 8

0

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

40

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

41

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

66

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

67

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

68

Echo 90010006050

BOLT - 6X50

$0.99

$

In Stock, Qty 6

0

69

Echo 90022005014

SCREW - 5X14

$0.99

$

In Stock, Qty 7

0

70

Echo 69901606320

KNIFE, TRIMMER LINE
(Superseded to Discontinued)

$

$

Not available

71

Echo 69921209630

GUARD

$2.99

$

Usually ships in 2-4 days

0

75

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

76

Echo 89541905330

SOCKET WRENCH - 17X19mm
(Superseded to Discontinued)

$

$

Not available

77

Echo 89541200230

ROD, HANDLE

$1.99

$

Usually ships in 2-4 days

0

78

Echo 89751801131

LOCKING TOOL

$1.49

$

In Stock, only 1 left!

0

79

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 4 left!

0
