SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Control Handle, Throttle Cable, Ignition Switch Parts Diagram

String Trimmer

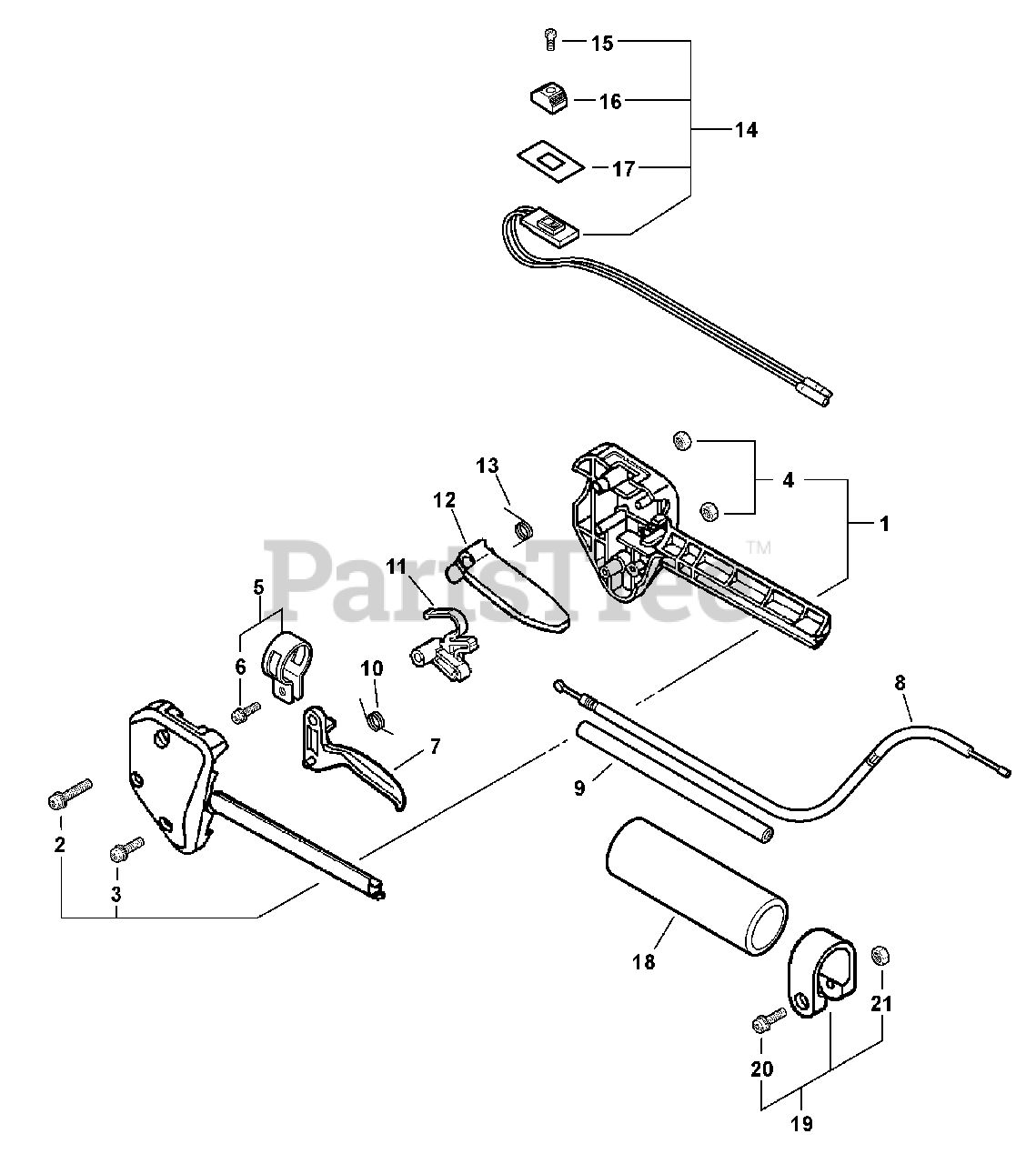

Control Handle, Throttle Cable, Ignition Switch Parts Diagram

  • Title

1

Echo 17800352130

Control Handle Kit

Note: Includes items 2-4

$4.99

$

In Stock, Qty 18

0

2

Echo 90024205035

Screw 5x35

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024205025

Screw 5x25

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 30120029430

Band Asy
(Superseded to 30120029431)

Note: Includes item 6

$9.49

$

In Stock, only 1 left!

0

6

Echo 90024205014

Screw 5x14

$0.99

$

In Stock, Qty 20+

0

7

Echo 17801052130

Trigger,Throttle

$3.49

$

In Stock, Qty 20+

0

8

Echo V430000730

Cable, Throttle

$7.49

$

In Stock, Qty 20+

0

9

Echo 17812750330

Tube, Vinyl

$1.49

$

In Stock, only 4 left!

0

10

Echo 17804342230

Spring, Throttle Return

$0.99

$

In Stock, Qty 20+

0

11

Echo 17801252730

Lockout, Throttle Trigger

$4.99

$

In Stock, Qty 20+

0

12

Echo 17809052631

Lever, Throttle Trigger Lockout
(Superseded to 17809052632)

$2.49

$

In Stock, Qty 20+

0

13

Echo 17801352630

Spring, Throttle Lockout

$2.49

$

In Stock, Qty 20+

0

14

Echo 16340155631

Ignition Switch Asy

Note: Includes items 15-17

$8.99

$

In Stock, Qty 15

0

15

Echo 9154503010

Screw 3x10

$0.99

$

In Stock, Qty 20+

0

16

Echo 16341049231

Knob, Switch

$3.99

$

In Stock, Qty 20+

0

17

Echo 89015712330

Cover, Switch

$3.49

$

In Stock, Qty 20+

0

18

Echo 35121352130

Grip, Handle

$9.49

$

In Stock, Qty 16

0

19

Echo 61027252130

Clamp Kit

$9.99

$

In Stock, only 4 left!

0

20

Echo 90024205028

Screw 5x28

Note: Includes items 20-21

$0.99

$

In Stock, Qty 9

0

21

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0
