SRM-225 i - Echo String Trimmer (SN: S96511001001 - S96511999999) Fuel System Parts Diagram

String Trimmer

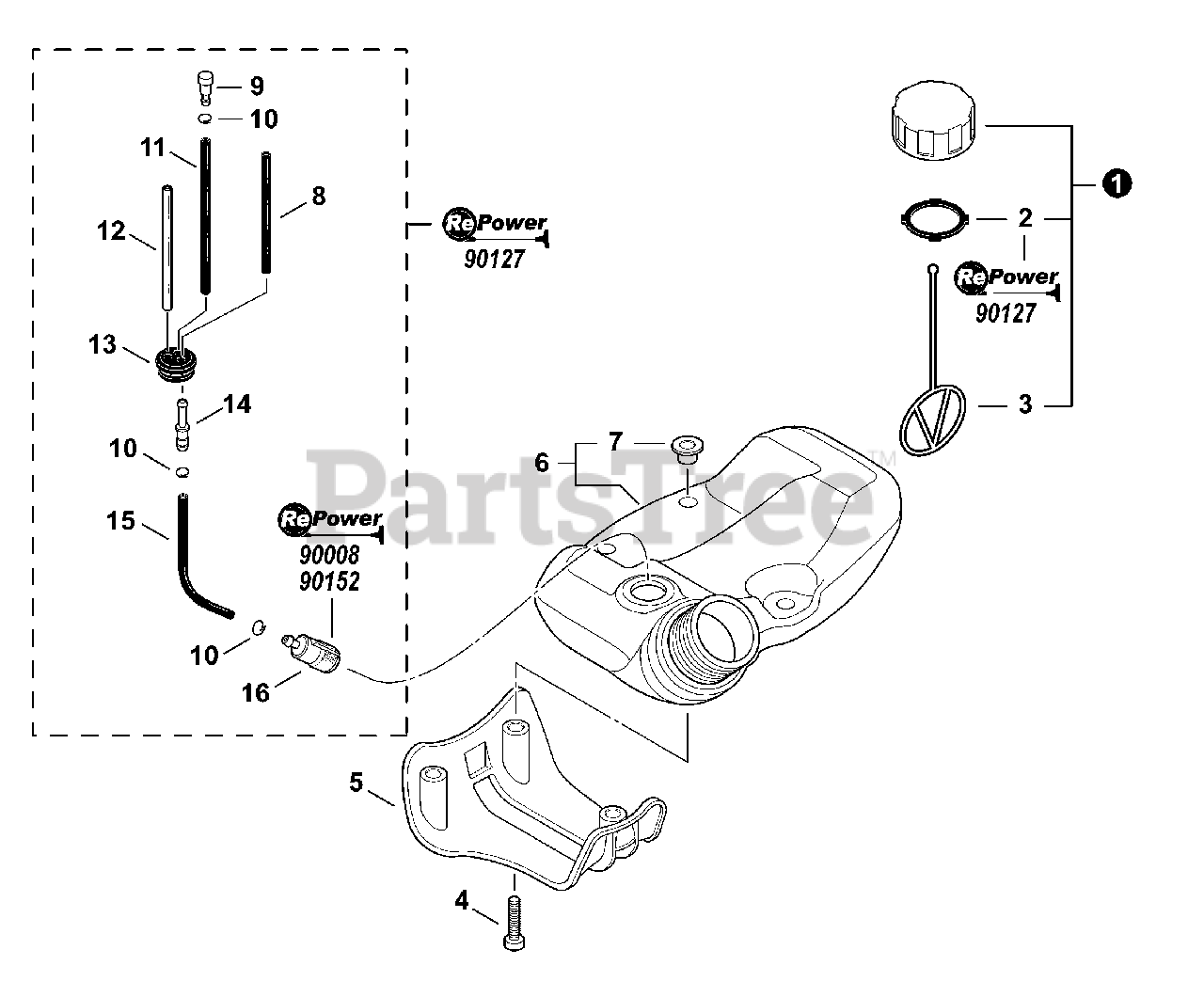

Fuel System Parts Diagram

  • Title

1

Echo P021040430

CAP ASSY

Note: Includes Items 2 - 3

$5.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo V805000170

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

5

Echo A175000070

GUARD, FUEL TANK

$4.99

$

Usually ships in 2-4 days

0

6

Echo A350000780

FUEL TANK ASSY

Note: Includes Item 7

$21.99

$

In Stock, Qty 12

0

7

Echo V353000231

SPACER

$3.99

$

In Stock, only 2 left!

0

8

Echo V471003691

PIPE - 3×5×74 -- BLACK
(Superseded to V471005620)

$3.49

$

In Stock, Qty 13

0

9

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

11

Echo V471001210

PIPE - 3×5×90 -- BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

12

Echo 13201256030

PIPE - 3×6×80 -- CLEAR

$3.49

$

In Stock, Qty 20+

0

13

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 20+

0

14

Echo V186000520

CONNECTOR, FUEL PIPE

$0.99

$

In Stock, Qty 20+

0

15

Echo V471003700

PIPE - 3×5×130 -- BLACK

$1.49

$

In Stock, Qty 12

0

16

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0
