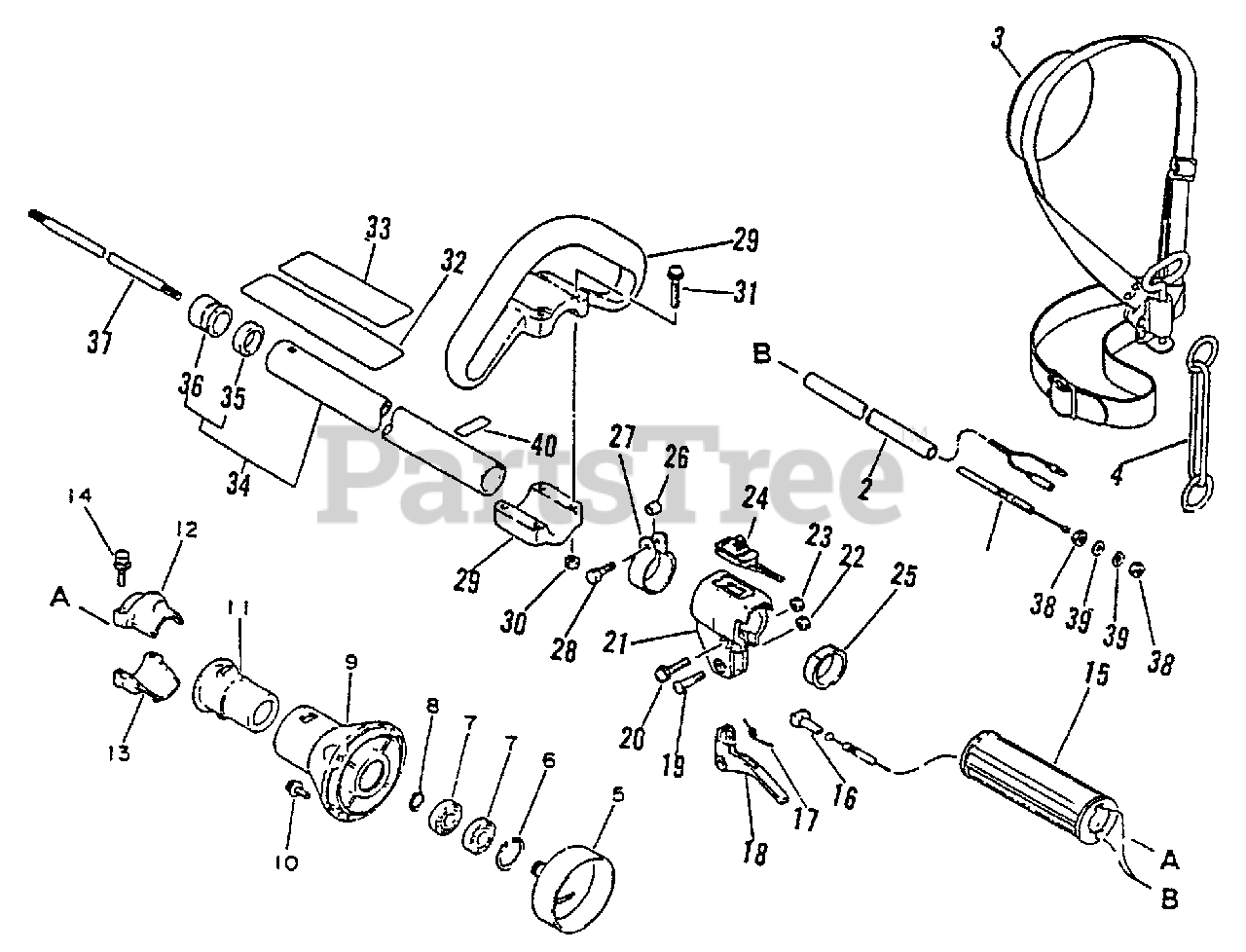

SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Parts Diagram

String Trimmer

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Parts Diagram

  • Title

1

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 17812740930

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

3

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

Note: Includes ITEM 4

$82.99

$

Usually ships in 2-4 days

0

4

Echo 30130524330

HOOK

$10.99

$

In Stock, only 1 left!

0

5

Echo 17500540430

DRUM, CLUTCH

$44.99

$

Usually ships in 2-4 days

0

6

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 20+

0

7

Echo 90080806001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

8

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

9

Echo 61020549730

CASE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

11

Echo 61091040430

CUSHION

$7.49

$

Usually ships in 2-4 days

0

12

Echo 61092240430

CLAMP, MAIN PIPE
(Superseded to Discontinued)

$

$

Not available

13

Echo 61092340430

CLAMP, MAIN PIPE
(Superseded to Discontinued)

$

$

Not available

14

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 10

0

15

Echo 35101207530

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

17

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

18

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

19

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 19

0

20

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

21

Echo 17802449730

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

22

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

23

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 20+

0

25

Echo 17807649730

SPACER
(Superseded to Discontinued)

$

$

Not available

26

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 16

0

27

Echo 30120707530

HOOK

$5.99

$

Usually ships in 2-4 days

0

28

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

29

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 30 8 31

$

$

Not available

30

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

32

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

33

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 61020441030

MAIN PIPE ASSY

Note: INCLUDES ITEMS 32, 33, 35 & 36

$158.99

$

Usually ships in 2-4 days

0

35

Echo 61011204930

O-RING

$3.99

$

Usually ships in 2-4 days

0

36

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

37

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

0

38

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

39

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

40

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0
