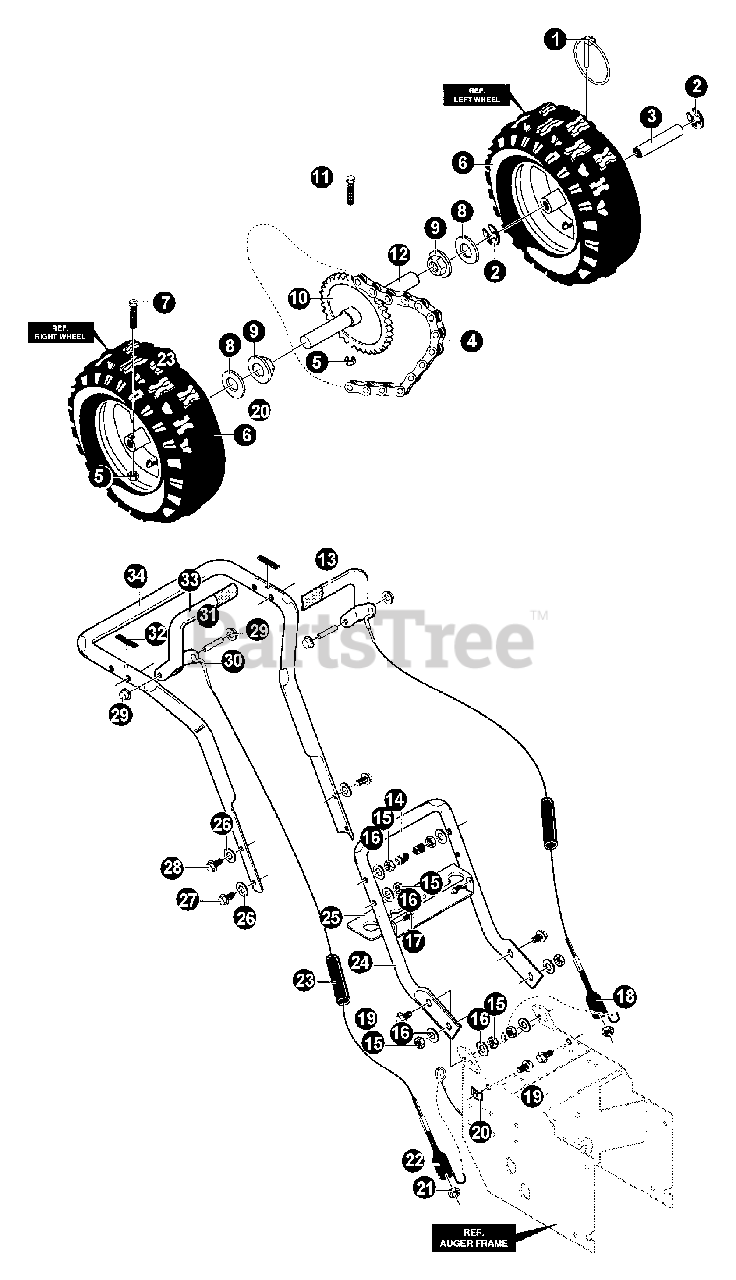

ST-5024 - Echo Snow Thrower (Type 1) Wheels, Axle, Sprocket, Handles, Clutch Cables Parts Diagram

Snow Thrower (Type 1)

Wheels, Axle, Sprocket, Handles, Clutch Cables Parts Diagram

  • Title

1

Echo 14073842

PIN, KLIK

$6.99

$

Usually ships in 2-4 days

0

2

Echo 14000239

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

3

Echo 14585591

BUSHING, WHEEL 4" LG

$1.99

$

Usually ships in 2-4 days

0

4

Echo 14579867

CHAIN, ROLLER #42X40P
(Superseded to Discontinued)

$

$

Not available

5

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14318504

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 14577015

SCREW - 1/4-20 X 1.75"

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14073840

WASHER
(Superseded to Discontinued)

$

$

Not available

9

Echo 14581730

BEARING, FLANGE

$4.99

$

Usually ships in 2-4 days

0

10

Echo 14583012

SPROCKET KIT
(Superseded to Discontinued)

$

$

Not available

11

Echo 14073839

SCREW - 1/4-20 X 2.25"
(Superseded to Discontinued)

$

$

Not available

12

Echo 14580883

SHAFT, AXLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 14334195

LEVER KIT
(Superseded to Discontinued)

$

$

Not available

14

Echo 14011261

STOP, RED PLASTIC
(Superseded to Discontinued)

$

$

Not available

15

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

16

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 14056021

SCREW - 1/4-20 X 3/4"
(Superseded to Discontinued)

$

$

Not available

18

Echo 14579869

SPRING
(Superseded to Discontinued)

$

$

Not available

19

Echo 14180079

SCREW - 5/16-18 X 1"
(Superseded to Discontinued)

$

$

Not available

20

Echo 14309436

PUSHNUT - 5/16"
(Superseded to Discontinued)

$

$

Not available

21

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

22

Echo 14001673

SPRING, AUGER CLUTCH

$3.99

$

Usually ships in 2-4 days

0

23

Echo 14308146

BOOT, CLUTCH SPRING

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14339541

HANDLE - LOWER

$21.99

$

Usually ships in 2-4 days

0

25

Echo 14337407

BRACKET, GEAR SELECTOR
(Superseded to Discontinued)

$

$

Not available

26

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

27

Echo 14180087

SCREW - 5/16-18 X 2"
(Superseded to Discontinued)

$

$

Not available

28

Echo 14011234

SCREW - 5/16-18 X 2-3/4"
(Superseded to Discontinued)

$

$

Not available

29

Echo 14003535

PUSHNUT

$1.49

$

Usually ships in 2-4 days

0

30

Echo 14001579

CABLE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

31

Echo 14001058

PIN, PIVOT

$3.99

$

Usually ships in 2-4 days

0

32

Echo 14004049

BUMPER, RECT
(Superseded to Discontinued)

$

$

Not available

33

Echo 14334195

LEVER KIT
(Superseded to Discontinued)

$

$

Not available

34

Echo 14009552

HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available
