ST-8027 - Echo Snow Thrower Disc Assembly, Drive Gear, Drive Shaft Parts Diagram

Snow Thrower

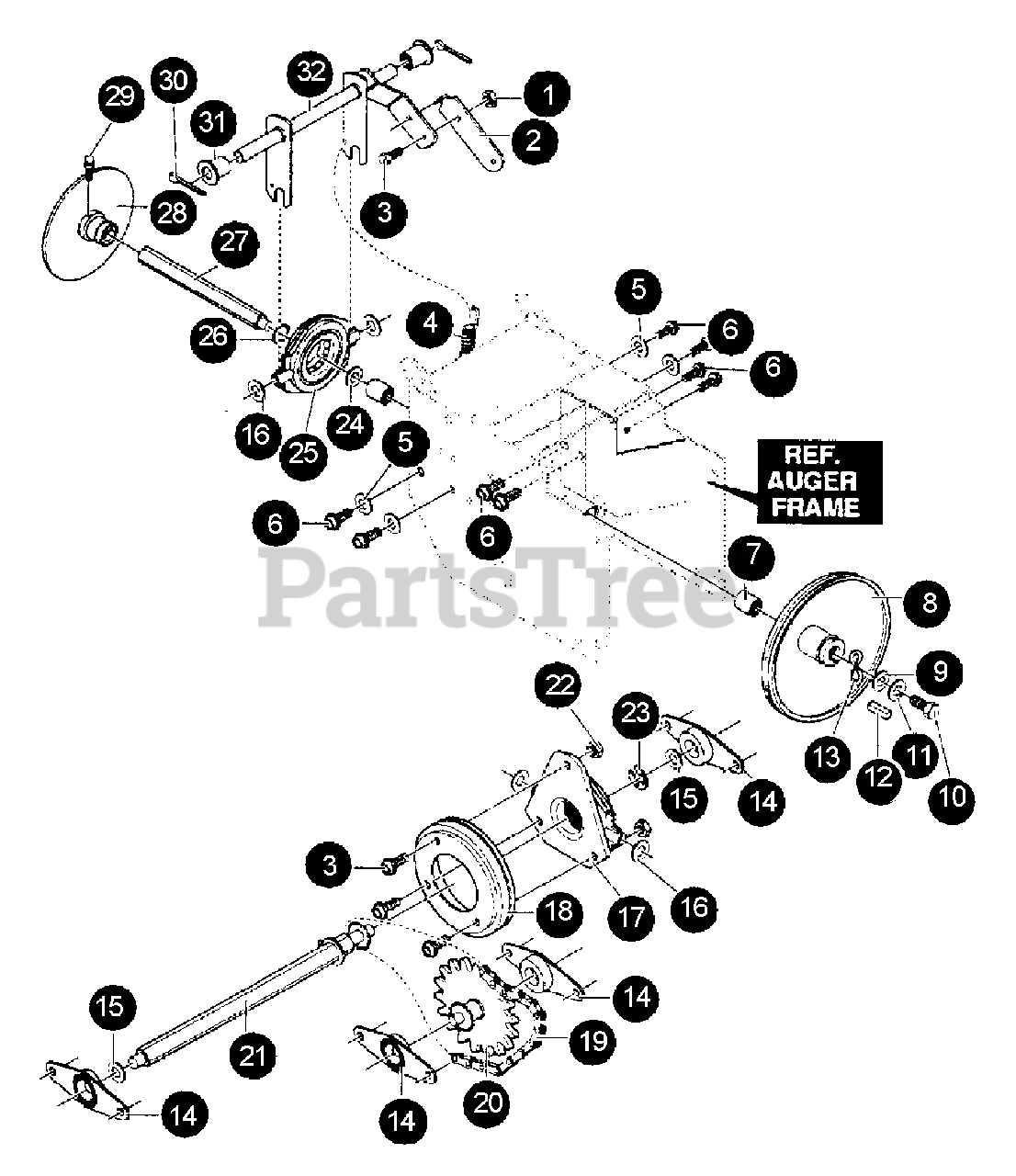

Disc Assembly, Drive Gear, Drive Shaft Parts Diagram

  • Title

1

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

2

Echo 14579937

LEVER, SPRING TRAC CL
(Superseded to Discontinued)

$

$

Not available

3

Echo 14011871

SCREW - 1/4-20 X 5/8"
(Superseded to Discontinued)

$

$

Not available

4

Echo 14313919

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

5

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14035497

SCREW - 5/16-18 X 1/2"
(Superseded to Discontinued)

$

$

Not available

7

Echo 14049562

BEARING, BALL - 6203

$10.99

$

Usually ships in 2-4 days

0

8

Echo 14580961

PULLEY, V3L6.50X.56

$29.99

$

Usually ships in 2-4 days

0

9

Echo 14001084

WASHER, FLAT .281X1.00X.063
(Superseded to Discontinued)

$

$

Not available

10

Echo 14180020

SCREW - 1/4-20

$1.49

$

Usually ships in 2-4 days

0

11

Echo 14120380

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14580970

KEY, SQUARE .18SQX.63LG
(Superseded to Discontinued)

$

$

Not available

13

Echo 14580965

WASHER - SPRING
(Superseded to Discontinued)

$

$

Not available

14

Echo 14334163

BEARING KIT
(Superseded to Discontinued)

$

$

Not available

15

Echo 14579858

WASHER, SP .502X.75X.0605

$0.99

$

Usually ships in 2-4 days

0

16

Echo 14071074

WASHER - .53X1.00X.063
(Superseded to Discontinued)

$

$

Not available

17

Echo 14337029

BEARING, TRUNION CLUTCH

$42.99

$

Usually ships in 2-4 days

0

18

Echo 14313883

FRICTION DISC WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 14579867

CHAIN, ROLLER #42X40P
(Superseded to Discontinued)

$

$

Not available

20

Echo 14583010

JACK ASSY #41-36T & 7T
(Superseded to Discontinued)

$

$

Not available

21

Echo 14331112

HEX ASSY #40-8TW/PBRG
(Superseded to Discontinued)

$

$

Not available

22

Echo 14303008

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

23

Echo 14000462

RING, RETEX

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14580969

WASHER, FLAT .680X1.12X.060Z
(Superseded to Discontinued)

$

$

Not available

25

Echo 14085501

BEARING, TRUNION 1.25 ID
(Superseded to Discontinued)

$

$

Not available

26

Echo 14073811

RING, RETEX
(Superseded to Discontinued)

$

$

Not available

27

Echo 14583155

SHAFT, HEX TRACTION
(Superseded to Discontinued)

$

$

Not available

28

Echo 14583163

FRICTION WHEEL DISC ASSY

$24.99

$

Usually ships in 2-4 days

0

29

Echo 14583206

FITTING, GREASE -.25-28X1.12LG
(Superseded to Discontinued)

$

$

Not available

30

Echo 14137185

PIN, SPLIT - 1-1/4 X 1"
(Superseded to Discontinued)

$

$

Not available

31

Echo 14313853

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

32

Echo 14579941

TRACTION CLUTCH LEVER ASSY
(Superseded to Discontinued)

$

$

Not available
