T 282 - Shindaiwa String Trimmer (Original Version) Fuel Tank Parts Diagram

String Trimmer

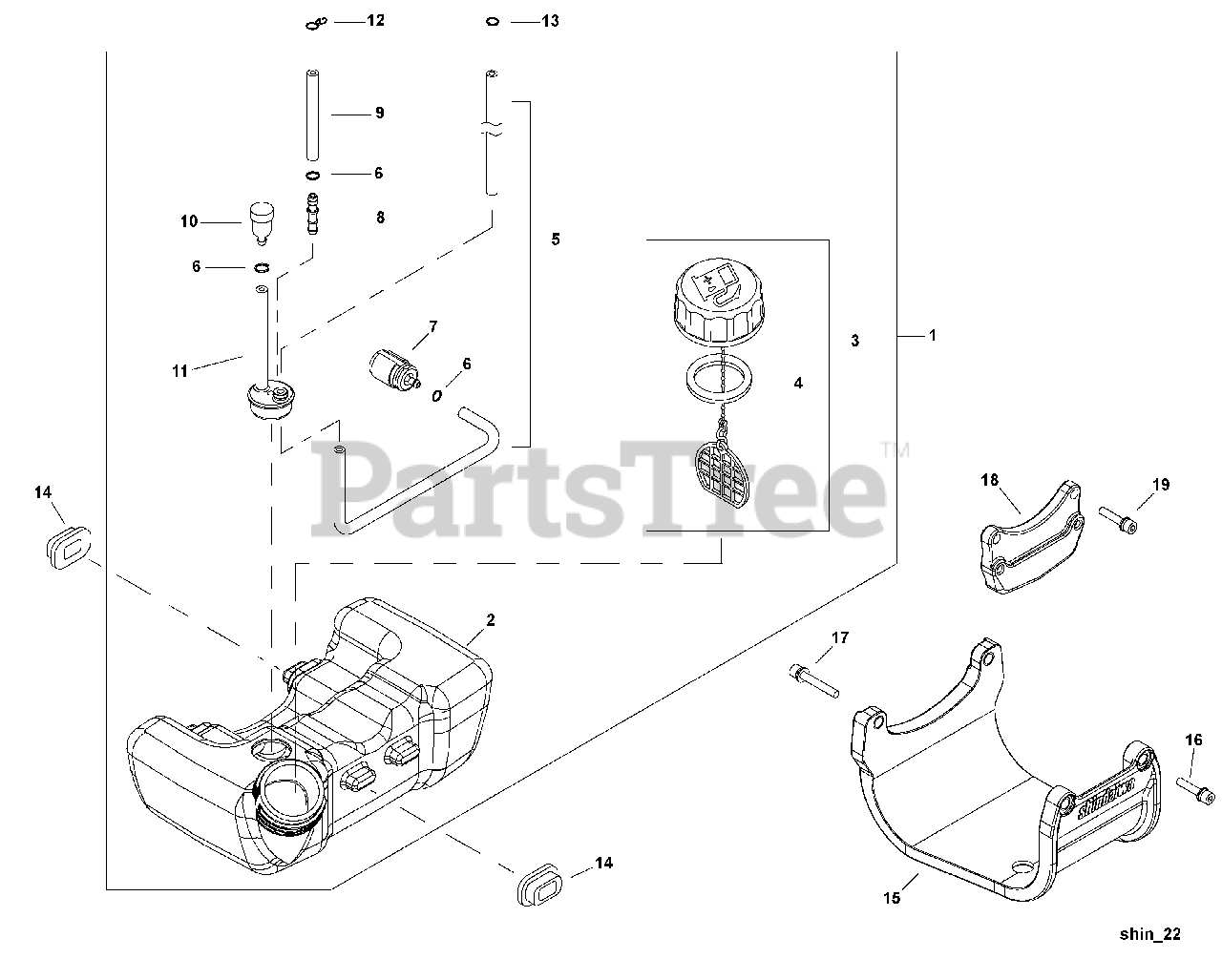

Fuel Tank Parts Diagram

  • Title

1

Echo 62131-85010

FUEL TANK ASSY
(Superseded to A038000251)

$

$

Not available

2

Echo 62131-85110

TANK, FUEL
(Superseded to A350001720)

$41.99

$

In Stock, only 2 left!

0

3

Echo 68204-85020

CAP ASSY
(Superseded to A033000020)

$8.49

$

In Stock, only 4 left!

0

4

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

5

Echo 62035-85310

PIPE - FUEL
(Superseded to V471002480)

$1.99

$

In Stock, Qty 20+

0

6

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

7

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

8

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, Qty 20+

0

9

Echo 70170-83311

PIPE - RETURN
(Superseded to V471002580)

$1.99

$

In Stock, Qty 20+

0

10

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

11

Echo V470000890

PIPE ASSY

$5.99

$

In Stock, Qty 20+

0

12

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, Qty 20+

0

13

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

14

Echo 62901-85220

CUSHION, FUEL TANK
(Superseded to V420002220)

$0.99

$

In Stock, Qty 20+

0

15

Echo A175000170

GUARD, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

16

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0

17

Echo V203000520

SCREW - 5X40

$1.99

$

In Stock, only 1 left!

0

18

Echo 62128-85210

METAL FUEL TANK BRACKET
(Superseded to A393000170)

$8.99

$

Usually ships in 2-4 days

0

19

Echo 11060-05203

SCREW - 5X20
(Superseded to V203000760)

$1.99

$

In Stock, Qty 11

0
