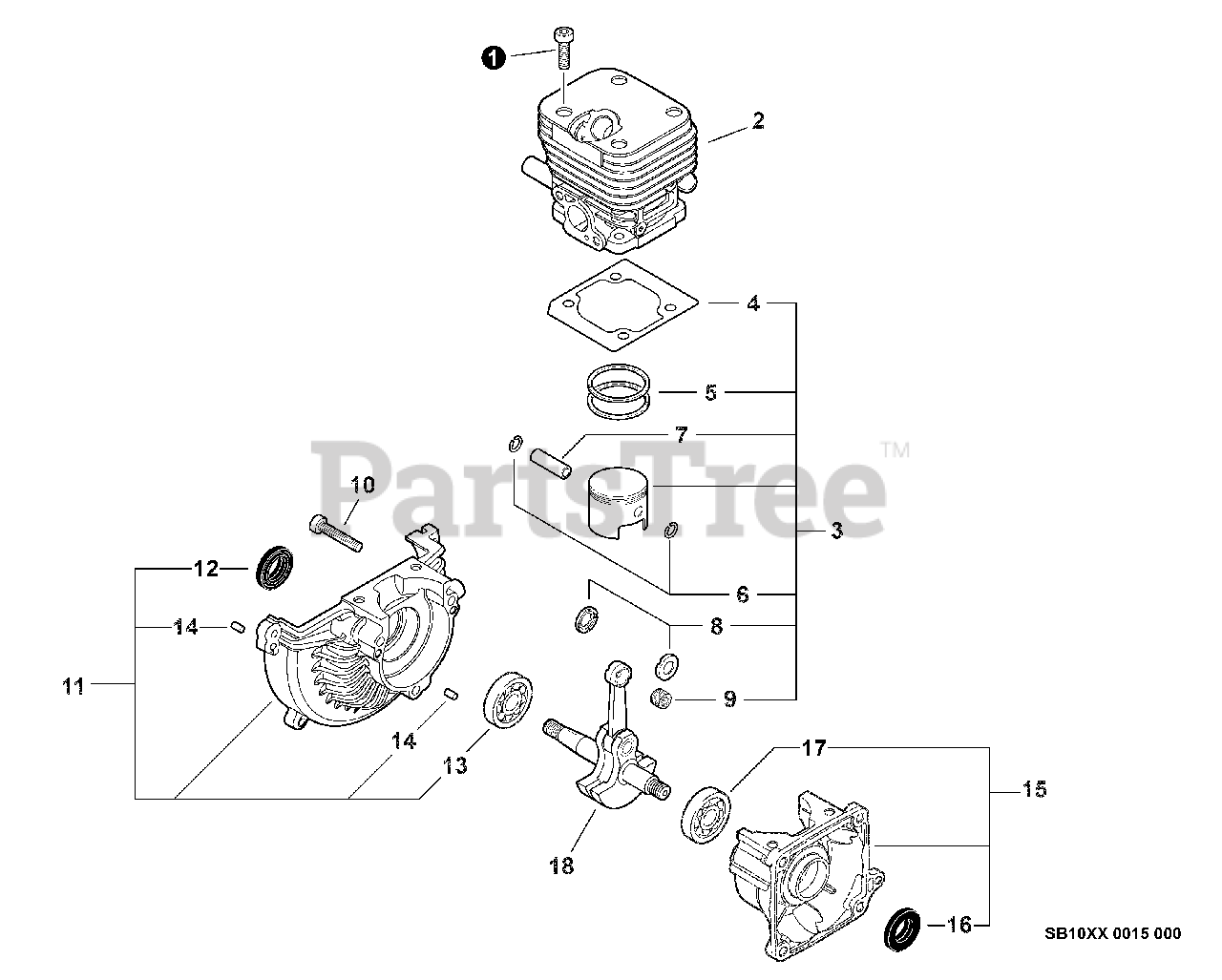

T 282 X - Shindaiwa String Trimmer (SN: T20513001001 - T20513999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo 90010505016

SCREW - 5X16

$1.49

$

In Stock, Qty 10

0

2

Echo A130001280

CYLINDER

$107.99

$

In Stock, Qty 10

0

3

Echo A010000031

PISTON KIT
(Superseded to P021045970)

Note: Includes ITEMS 4-9

$53.99

$

In Stock, Qty 15

0

4

Echo V100000440

GASKET, CYLINDER

$1.99

$

In Stock, Qty 9

0

5

Echo A101000340

RING, PISTON

$6.49

$

In Stock, only 1 left!

0

6

Echo V580000090

RING, RETAINING

$5.49

$

In Stock, only 2 left!

0

7

Echo V607000020

PIN, PISTON

$4.49

$

Usually ships in 2-4 days

0

8

Echo V392000020

SPACER - 9

$2.49

$

In Stock, Qty 10

0

9

Echo V554000010

BEARING, NEEDLE

$6.49

$

In Stock, only 2 left!

0

10

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 20+

0

11

Echo P021028140

CRANKCASE ASSY - FRONT

Note: Includes ITEMS 12-14

$39.99

$

In Stock, Qty 5

0

12

Echo V505000090

SEAL, OIL

$5.99

$

In Stock, Qty 20+

0

13

Echo V592000330

BEARING, BALL - 6001
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 12

0

14

Echo V622000040

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

15

Echo P021028130

CRANKCASE ASSY - REAR
(Superseded to P021028131)

Note: Includes ITEMS 16-17

$44.99

$

Usually ships in 2-4 days

0

16

Echo V505000090

SEAL, OIL

$5.99

$

In Stock, Qty 20+

0

17

Echo V592000330

BEARING, BALL - 6001
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 12

0

18

Echo A011000800

CRANKSHAFT ASSY

$99.99

$

Usually ships in 2-4 days

0
