TC-210 - Echo Tiller Cultivator (SN: E14813001001 - E14813999999) Engine Parts Diagram

Tiller Cultivator

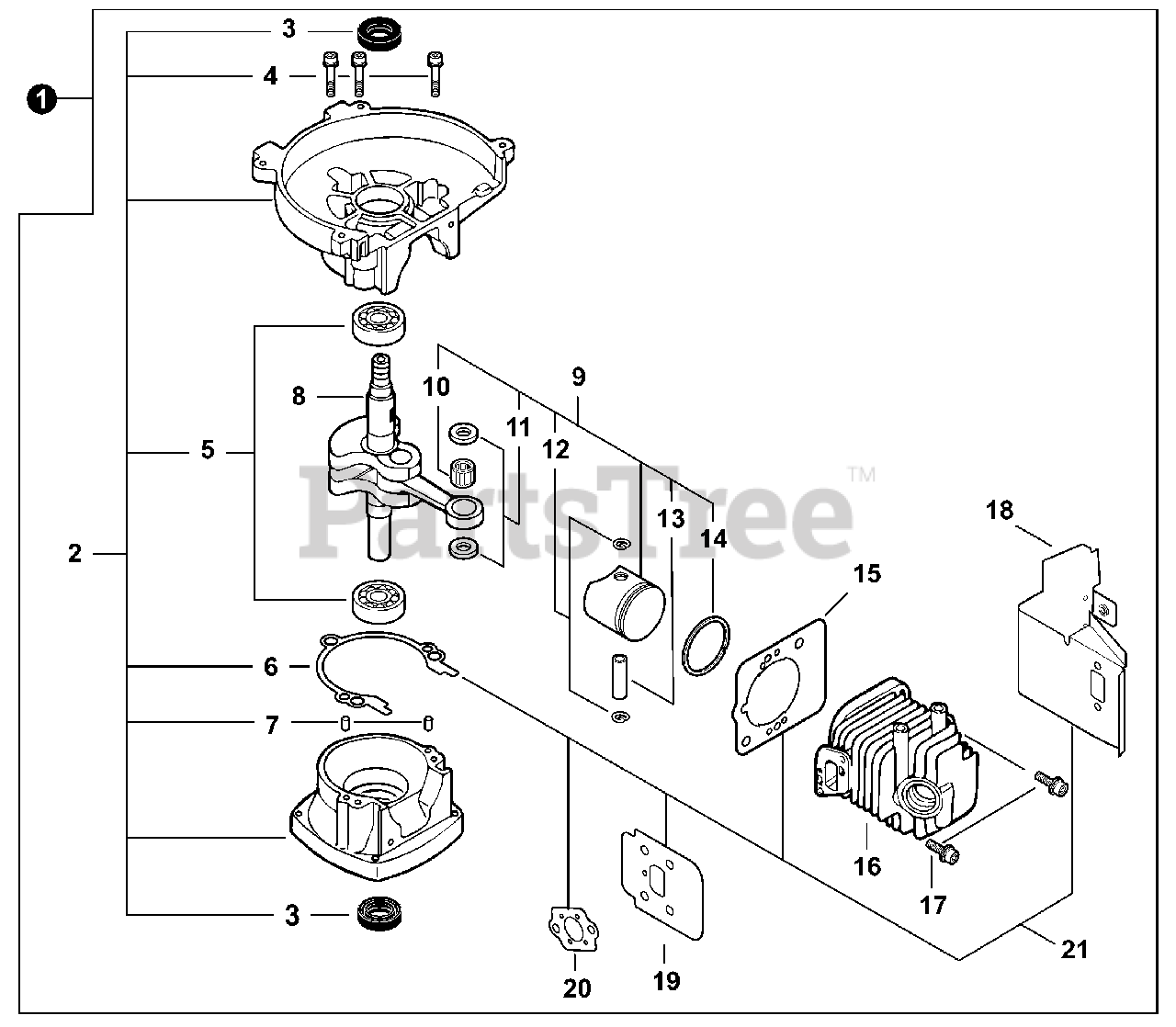

Engine Parts Diagram

  • Title

1

Echo SB1087

SHORT BLOCK

Note: Includes Items 2-21

$185.99

$

Usually ships in 2-4 days

0

2

Echo 10020411521

CRANKCASE KIT

Note: Includes Items 3-7

$129.99

$

Usually ships in 2-4 days

0

3

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 20+

0

4

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

5

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 12

0

6

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

7

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

8

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

In Stock, only 1 left!

0

9

Echo P021007712

PISTON KIT

Note: Includes Items 10-14

$50.99

$

In Stock, Qty 11

0

10

Echo A011000390

CRANKSHAFT ASSY
(Superseded to A011000391)

$153.99

$

Usually ships in 2-4 days

0

11

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 2 left!

0

12

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

13

Echo 10001311520

PIN, PISTON 5×8×25.5

$7.49

$

In Stock, only 1 left!

0

14

Echo A101000090

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

15

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

16

Echo A130000550

CYLINDER

$90.99

$

In Stock, only 1 left!

0

17

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

18

Echo V104000590

HEAT SHIELD, EXHAUST

$10.99

$

In Stock, only 1 left!

0

19

Echo 13001042032

HEAT SHIELD, INTAKE

$2.49

$

In Stock, Qty 20+

0

20

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

21

Echo P021009110

GASKET KIT

$24.99

$

In Stock, only 1 left!

0
