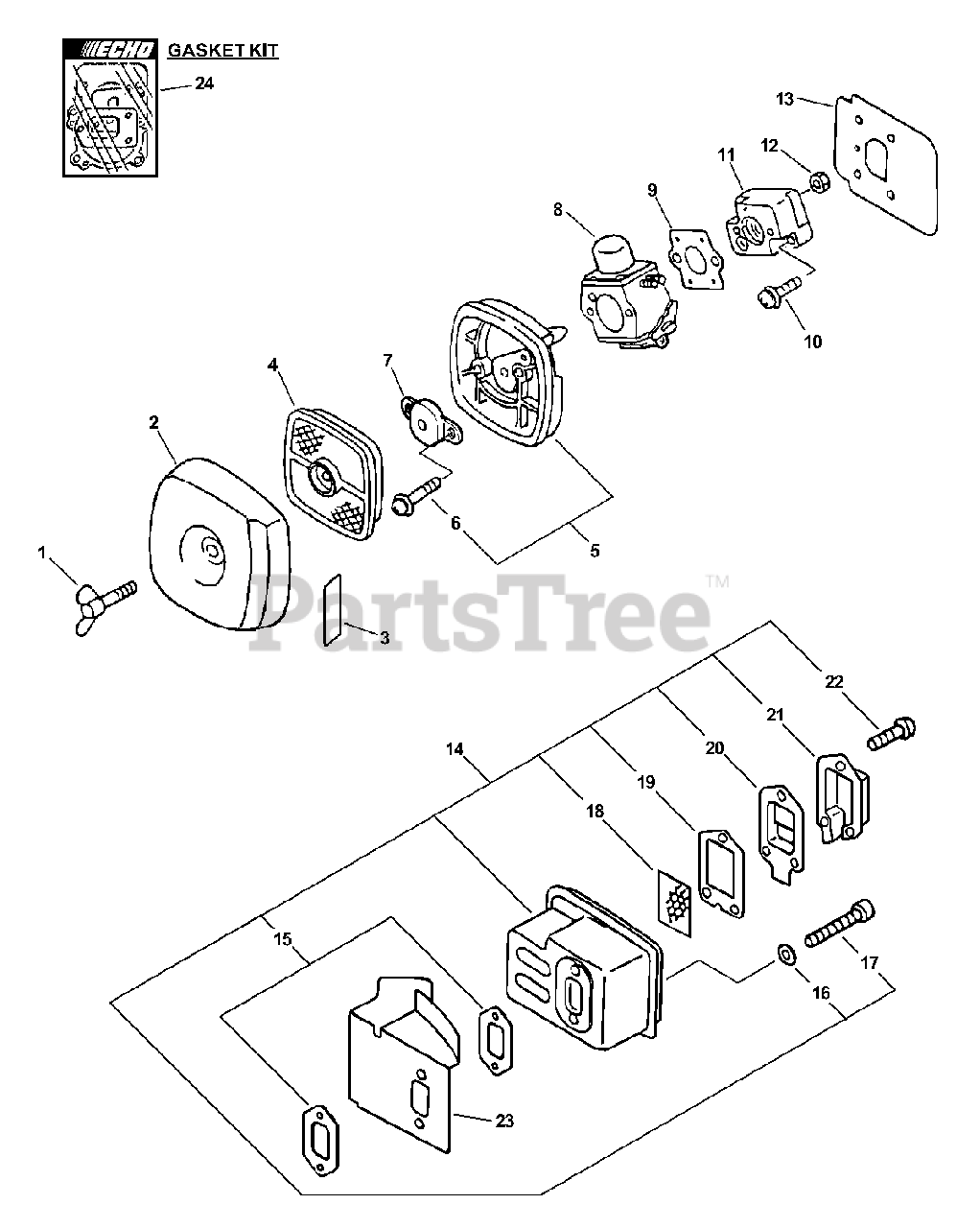

TC-2100 - Echo Tiller Cultivator (Type 1E) (SN: 001001 - 999999) Intake, Exhaust S/N: 021233-999999, Canada: 018677-999999 Parts Diagram

Tiller Cultivator (Type 1E)

Intake, Exhaust S/N: 021233-999999, Canada: 018677-999999 Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 20+

0

3

Echo X506000070

LABEL - CHOKE

$0.99

$

In Stock, Qty 9

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo P021002921

AIR FILTER CASE KIT - GRAY

Note: Includes ITEM 6

$12.99

$

In Stock, Qty 20+

0

6

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 15

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

Echo 12520013122

CARBURETOR C1U-K54
(Superseded to 12520013123)

$92.99

$

In Stock, only 4 left!

0

8

Echo 12520013123

CARBURETOR C1U-K54
(Superseded to 12520013124)

$92.99

$

In Stock, only 4 left!

0

8

Echo 12520013123

CARBURETOR C1U-K54
(Superseded to 12520013124)

$92.99

$

In Stock, only 4 left!

0

9

Echo 13001642031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

10

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 16

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

14

Echo 14580011820

MUFFLER ASSY
(Superseded to 14580011821)

$

$

Not available

15

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010505050

SCREW - 5X50

$1.49

$

In Stock, Qty 6

0

18

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

19

Echo 14586642031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

20

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

21

Echo 14586306960

GUIDE, EXHAUST - OUTER
(Superseded to 14586311520)

$4.49

$

Usually ships in 2-4 days

0

22

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

23

Echo 14587105360

SHIELD, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

24

Echo 88900045131

GASKET KIT

$28.99

$

Usually ships in 2-4 days

0
