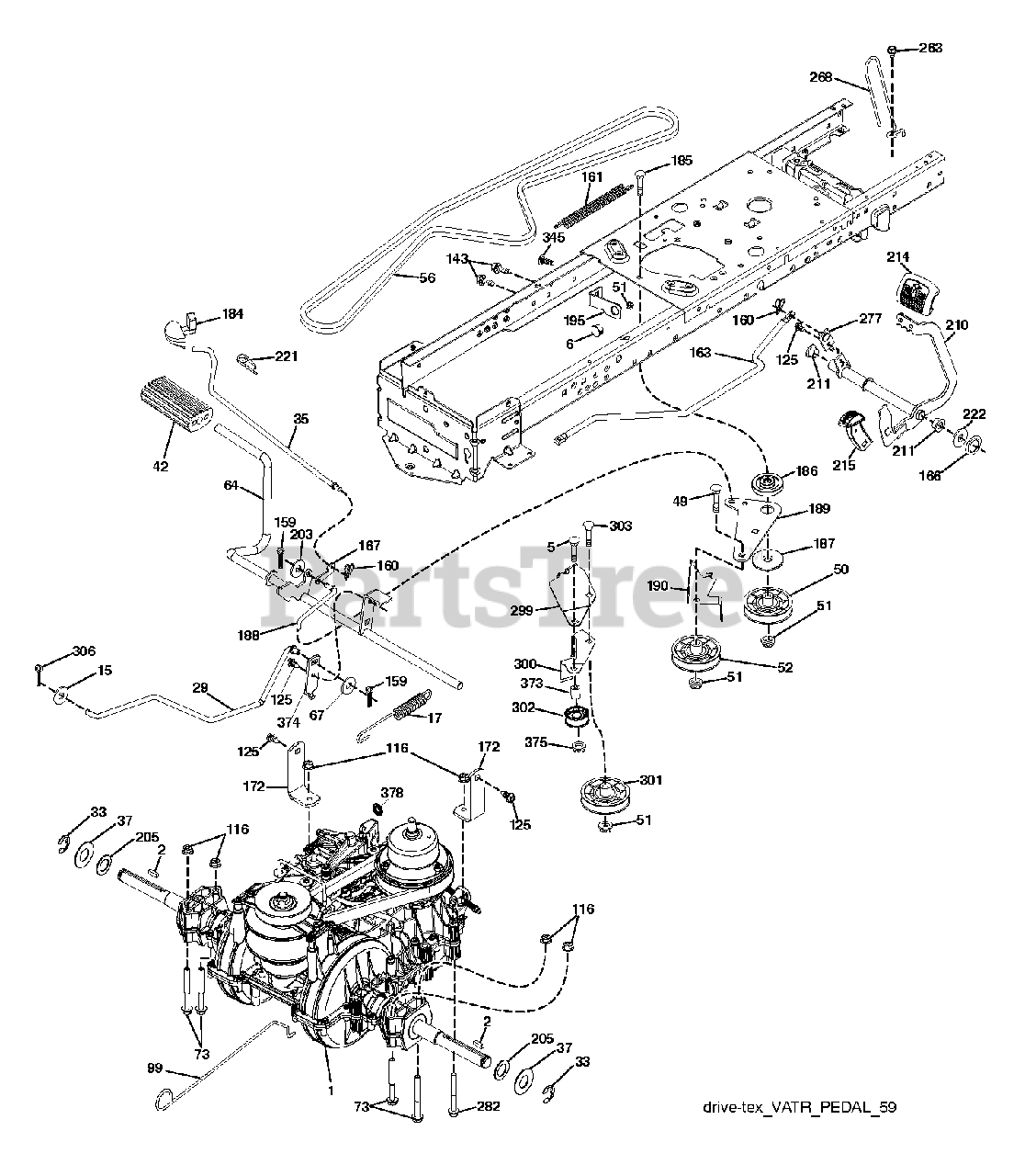

TS 142 (960410368-03) - Husqvarna 42" Garden Tractor (2017-04) DRIVE Parts Diagram

42" Garden Tractor

DRIVE Parts Diagram

  • Title

1

000000000

Note: TRANSAXLE VARIATOR SD PEDAL (587884401)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 11

0

5

Husqvarna 874760636

BOLT

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 501487101

SPRING.BRAKE.VARIATOR

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 584823101

BRAKE.VARIATOR.SD3
(Superseded to 584823102)

$11.99

$

In Stock, only 1 left!

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 581603801

BELT.V.EURO.VARIATOR

$109.99

$

Usually ships in 3-10 days

0

64

Husqvarna 589671401

Variator Shaft, Pedal Cross

$30.99

$

Usually ships in 3-10 days

0

67

Husqvarna 582580101

Washer, Nylon 1332 X 1316

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532435935

ROD.BYPASS.VARIATOR.GEN2

$6.49

$

In Stock, only 1 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Husqvarna 587847901

ROD.CONTROL.PEDAL.VARIATOR
(Superseded to 583971301)

$34.99

$

In Stock, only 3 left!

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Husqvarna 583974201

STRAP.TORQUE.VARIATOR

$3.99

$

In Stock, only 1 left!

0

184

Husqvarna 532411484

HANDLE.PARKNG BRK.PRED.LT.428

$67.99

$

Usually ships in 3-10 days

0

185

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

195

Husqvarna 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$6.49

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

210

Husqvarna 588921001

PEDAL.ASM.ROCKET.VARIATOR.LT

$40.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 10

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, Qty 5

0

215

Husqvarna 582532801

PEDAL.REVERSE.VATR.LARGE.428
(Superseded to 591100101)

$8.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 9

0

268

Husqvarna 532182402

GUARD MUFFLER
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

277

Husqvarna 532448500

SUBASM.LINK.ROCKER.PEDAL

$15.99

$

In Stock, only 1 left!

0

282

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 2 left!

0

299

Husqvarna 532415683

BRACKET.MOUNT.IDLERS

$10.99

$

In Stock, only 2 left!

0

300

Husqvarna 532415681

KEEPER.IDLERS.REAR.VARIATOR

$6.49

$

Usually ships in 3-10 days

0

301

Husqvarna 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 20+

0

302

Husqvarna 581420501

PULLEY.IDLER.FLAT.2"

$26.99

$

In Stock, Qty 17

0

303

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 1 left!

0

306

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

345

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

373

Husqvarna 581461801

SPACER.IDLER

$4.99

$

In Stock, Qty 5

0

374

Husqvarna 581475201

ARM.CONTROL.BRAKE

$6.49

$

Usually ships in 3-10 days

0

375

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

378

Husqvarna 584287701

NUT.PUSH.8MM

$4.99

$

In Stock, Qty 13
