W 4000 - Swisher Water Pump Valve Train Parts Diagram

Water Pump

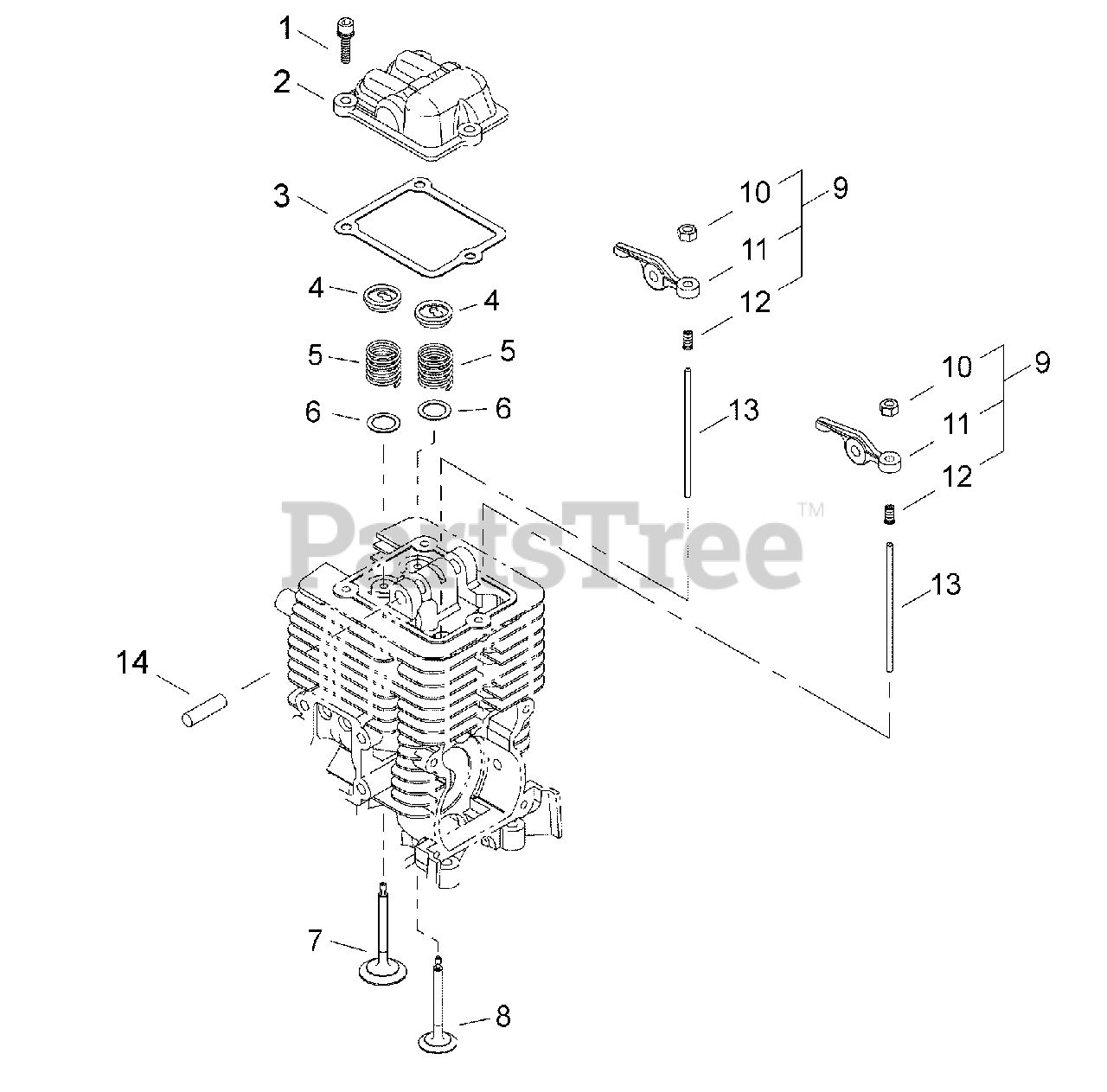

Valve Train Parts Diagram

  • Title

1

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 11

0

2

Echo 62907-44240

COVER, ROCKER ARM
(Superseded to A137000000)

$4.99

$

In Stock, only 1 left!

0

3

Echo 62907-44250

GASKET
(Superseded to V109000050)

$1.99

$

In Stock, Qty 5

0

4

Echo 62908-44140

RETAINER, VALVE
(Superseded to A606000040)

$7.99

$

In Stock, only 2 left!

0

5

Echo 62901-44130

SPRING, VALVE
(Superseded to A604000010)

$1.99

$

In Stock, only 4 left!

0

6

Echo 62908-44310

WASHER, VALVE - 9
(Superseded to V392000030)

$0.99

$

In Stock, only 1 left!

0

7

Echo 62907-44111

VALVE, INTAKE
(Superseded to A603000000)

$15.99

$

Usually ships in 2-4 days

0

8

Echo 62907-44121

VALVE, EXHAUST
(Superseded to A603000010)

$19.99

$

Usually ships in 2-4 days

0

9

Echo 62907-44010

ROCKER ARM ASSY
(Superseded to A610000050)

$30.99

$

Usually ships in 2-4 days

0

10

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 62901-44210

ARM, ROCKER
(Superseded to A610000060)

$27.99

$

Usually ships in 2-4 days

0

12

Echo 62907-44220

SCREW, ADJUST
(Superseded to A613000010)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 62907-43220

PUSHROD
(Superseded to A607000000)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12492-50370

SHAFT, ROCKER ARM - 5X37.8
(Superseded to V623000010)

$1.99

$

Usually ships in 2-4 days

0
