WH 4817 A (968999106) - Husqvarna 48" Walk-Behind Mower (2000-06) Cutter Housing Assembly Parts Diagram

48" Walk-Behind Mower

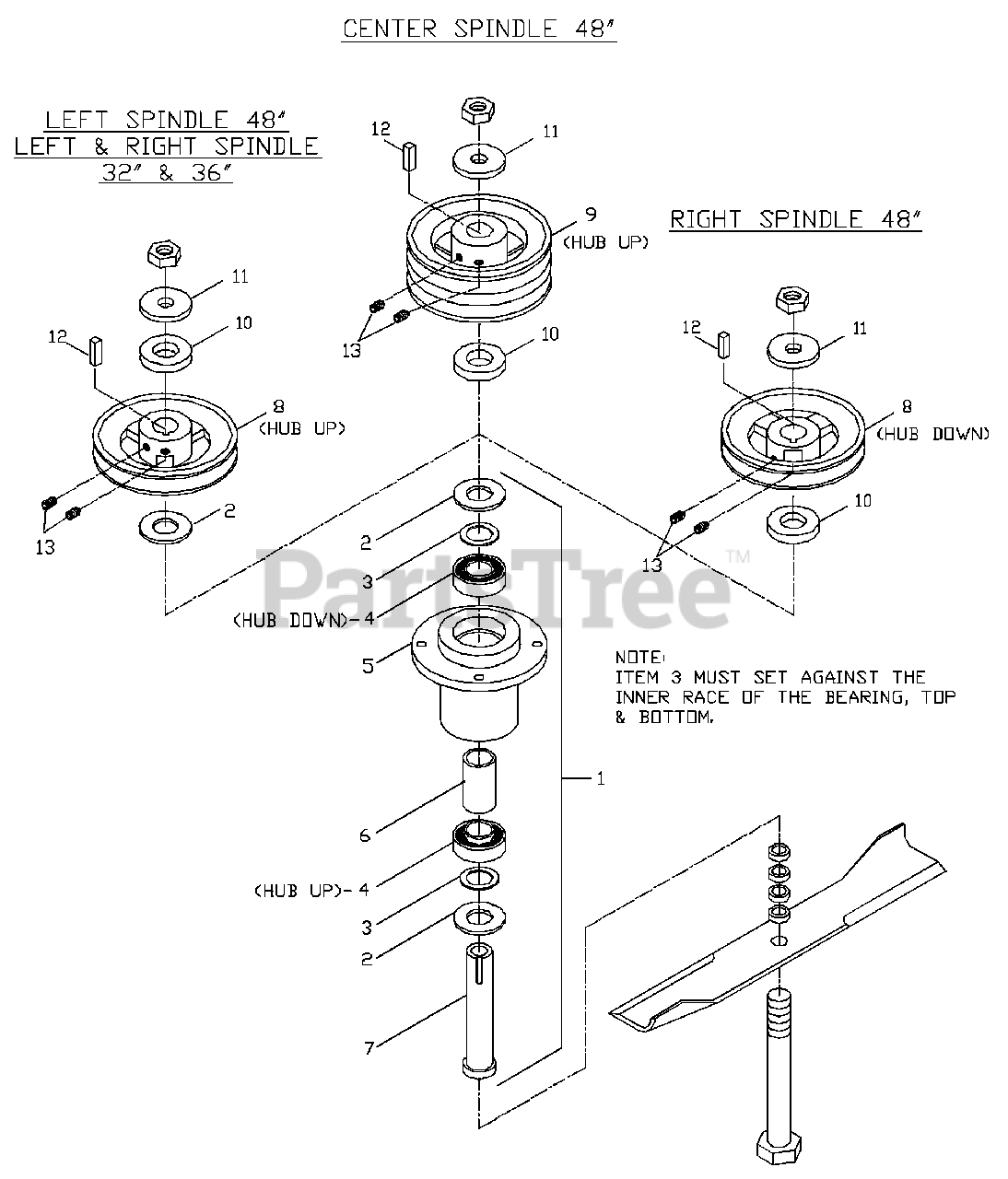

Cutter Housing Assembly Parts Diagram

  • Title

1

Husqvarna 539102440

CUTTER HOUSING ASM.
(Superseded to 539107418)

Note: (INCLUDES ITEMS 2 THRU 7)

$

$

Not available

2

Husqvarna 539102675

MACH. BUSING 10GA.

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 539102244

MACH. BUSING 18GA.

$4.99

$

In Stock, Qty 14

0

4

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102673

HOUSING

$

$

Not available

6

Husqvarna 539102676

SPACER

$13.99

$

In Stock, Qty 15

0

7

Husqvarna 539102674

SPINDLE

$

$

Not available

8

Husqvarna 539976398

PULLEY

$60.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101819

DOUBLE PULLEY

$145.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102245

3/8" SPACER

$

$

Not available

11

Husqvarna 539102243

1/4" SPACER

$

$

Not available

12

Husqvarna 539101995

KEY 1/4 SQ. X 1 1/8"

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 539976956

5/16 NYLOC SETSCREW

$3.99

$

Usually ships in 3-10 days

0
