WH 4817 A (968999106) - Husqvarna 48" Walk-Behind Mower (2000-06) Handle Assembly Parts Diagram

48" Walk-Behind Mower

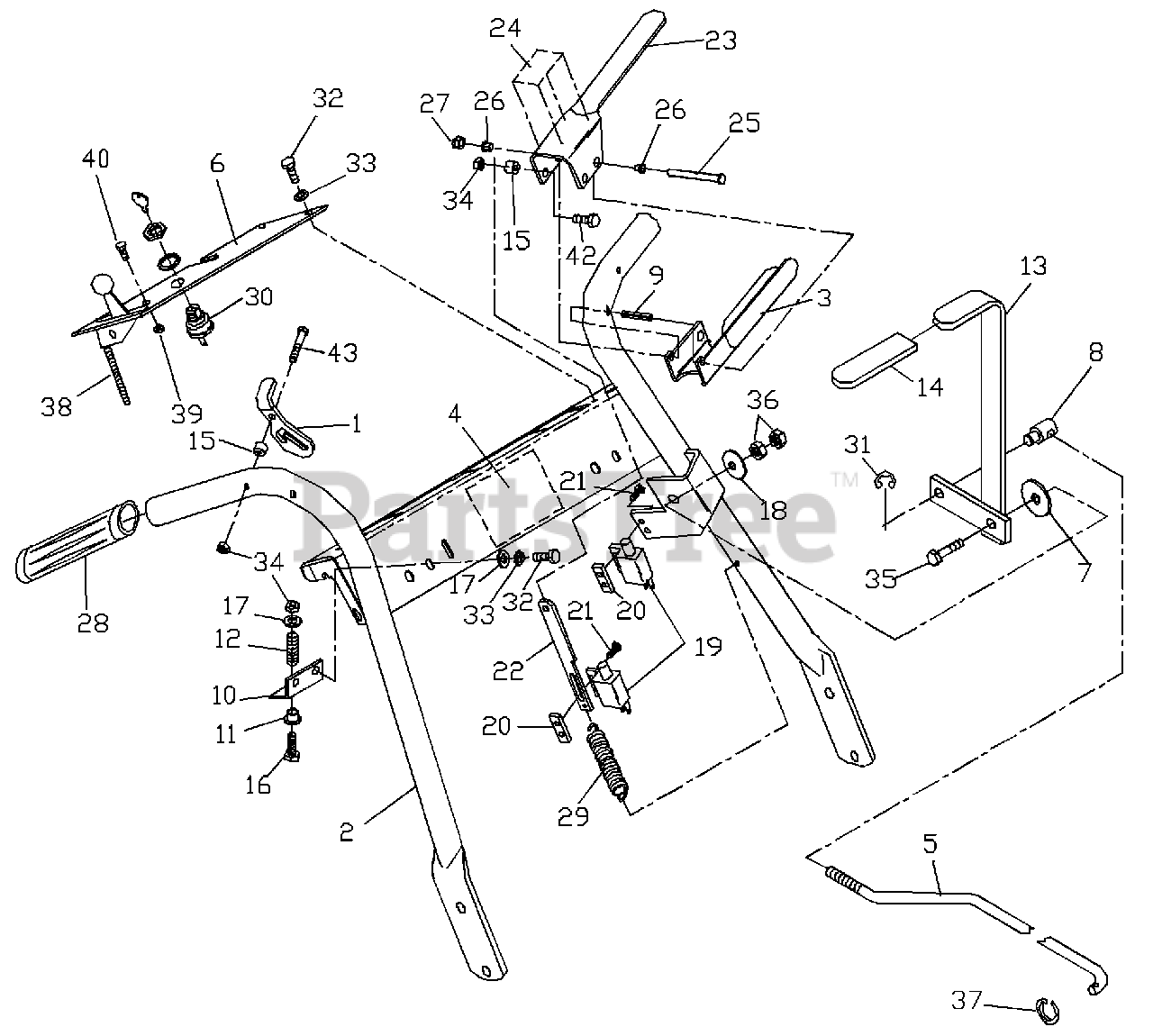

Handle Assembly Parts Diagram

  • Title

1

Husqvarna 539102984

THUMB LATCH RT.

$

$

Not available

1

Husqvarna 539102983

THUMB LATCH LT.

Note: (NOT SHOWN)

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539103005

HANDLE W/DECAL

$

$

Not available

3

Husqvarna 539102990

CONTROL LEVER LT.

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102991

CONTROL LEVER RT.

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102987

DECAL, WARNING

$

$

Not available

5

Husqvarna 539102986

BLADE LINK

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102999

ACCESS PLATE

$

$

Not available

7

Husqvarna 539102998

FRICTION WASHER

$8.99

$

In Stock, Qty 10

0

8

Husqvarna 539102992

SWIVEL

$23.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102997

PIN, ROLL

$0.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102979

DETENT WLDMT.

$

$

Not available

11

Husqvarna 539100240

FLANGE BUSHING

$

$

Not available

12

Husqvarna 539101224

SPRING

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 539102976

BLADE LEVER WLDMT.

$

$

Not available

14

Husqvarna 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 539102996

SPACER

$1.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539991003

HCS 1/4C X 1.75

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990055

1/4 SAE WASHER

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539912063

CONE WASHER

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539919098

SWITCH

$10.99

$

In Stock, only 2 left!

0

20

Husqvarna 539102678

TAPPED PLATE

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101801

O.P. LINKAGE

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539977857

LEVER O.P. W/GRIP
(Superseded to 539100359)

$56.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539100285

DECAL, THUMB LATCH

$1.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539977884

PIN, CLEVIS

$21.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539977886

BUSHING

$0.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539914734

PUSH NUT

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976488

GRIP HANDLE
(Superseded to 532427643)

$6.49

$

In Stock, only 3 left!

0

29

Husqvarna 539977250

SPRING

$

$

Not available

30

Husqvarna 539911853

KEY SWITCH, COMPLETE

$

$

Not available

31

Husqvarna 539990870

3/8 E-RING

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539990073

HCS 1/4C X 3/4
(Superseded to 539990580)

$3.99

$

In Stock, only 4 left!

0

33

Husqvarna 539990052

1/4 SLOTTED LOCK WASHER

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

35

Husqvarna 539990655

HCS 3/8C X 1.5

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

37

Husqvarna 539916459

RING, RETAINER

$6.49

$

In Stock, Qty 8

0

38

Husqvarna 539101451

THROTTLE CABLE

Note: (14 KAW.)

$28.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101220

THROTTLE CABLE

Note: (17 KAW.)

$

$

Not available

39

Husqvarna 539976977

#10-24 NYLOC NUT

$

$

Not available

40

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539102989

DECAL, OPERATION

Note: (NOT SHOWN)

$

$

Not available

42

Husqvarna 539990548

HCS 1/4C X 1

$3.99

$

In Stock, only 1 left!

0

43

Husqvarna 539101313

HCS 1/4C X 2

$3.99

$

Usually ships in 3-10 days

0
