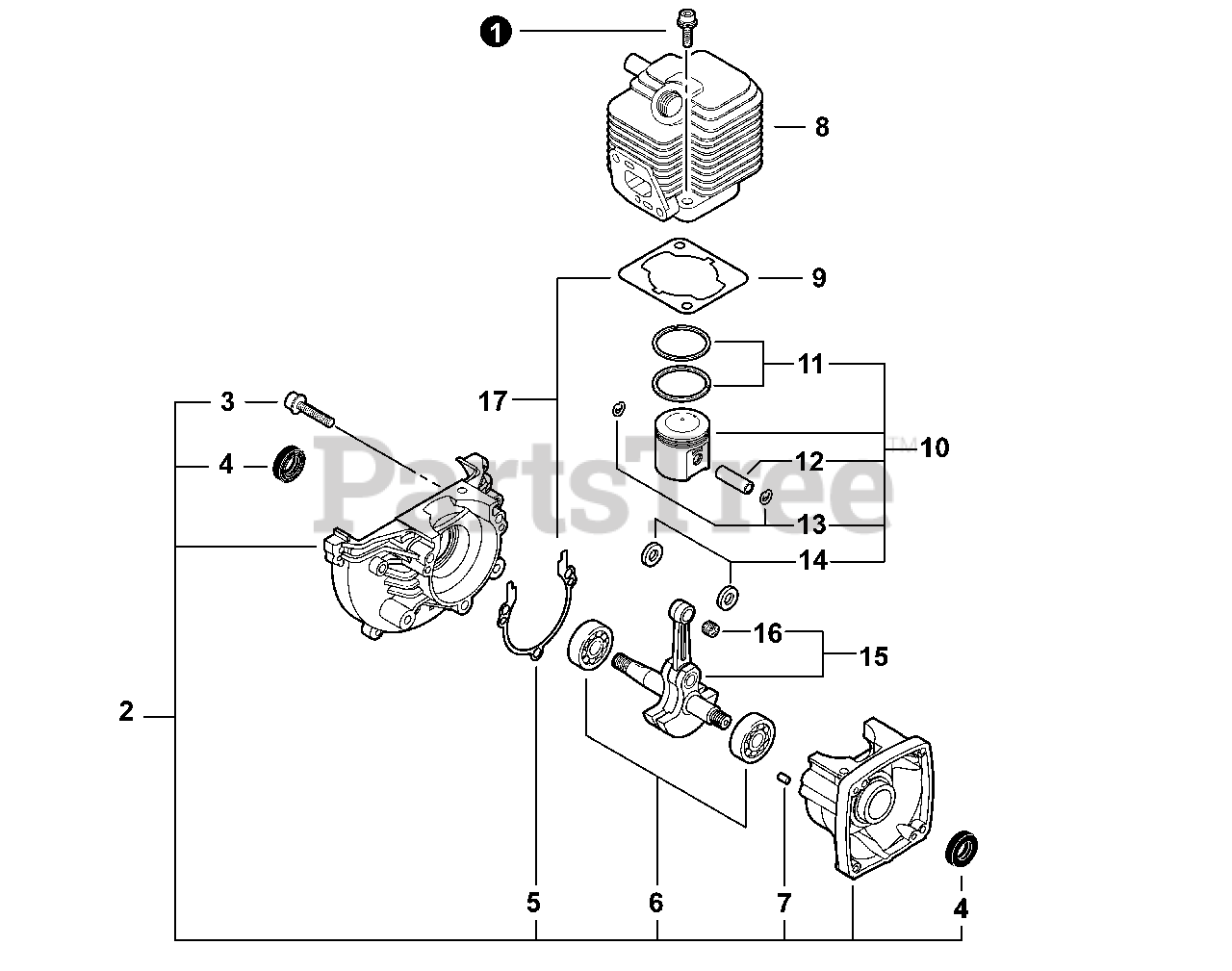

WP-1000 - Echo Water Pump (SN: W15103001001 - W15103999999) Engine Parts Diagram

Water Pump

Engine Parts Diagram

  • Title

1

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

2

Echo 10020452133

CRANKCASE KIT

Note: Includes Items 3-7

$140.99

$

Usually ships in 2-4 days

0

3

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

4

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 20+

0

5

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

6

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 12

0

7

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

8

Echo A130000021

CYLINDER
(Superseded to A130002300)

$123.99

$

Usually ships in 2-4 days

0

9

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 20+

0

10

Echo P021001102

PISTON KIT

Note: Includes Items 11-14

$77.99

$

In Stock, Qty 6

0

11

Echo A101000000

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

12

Echo 10001311520

PIN, PISTON 8

$7.49

$

In Stock, only 1 left!

0

13

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

14

Echo 10001411520

WASHER, THRUST

$3.49

$

In Stock, only 2 left!

0

15

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

Note: Includes Item 16

$150.99

$

Usually ships in 2-4 days

0

16

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

In Stock, only 1 left!

0

17

Echo P021000352

GASKET KIT

$12.99

$

Usually ships in 2-4 days

0
