WP 18 H44A - Winston Pro Yard Tractor (1992-02) Engine Parts Diagram

Yard Tractor

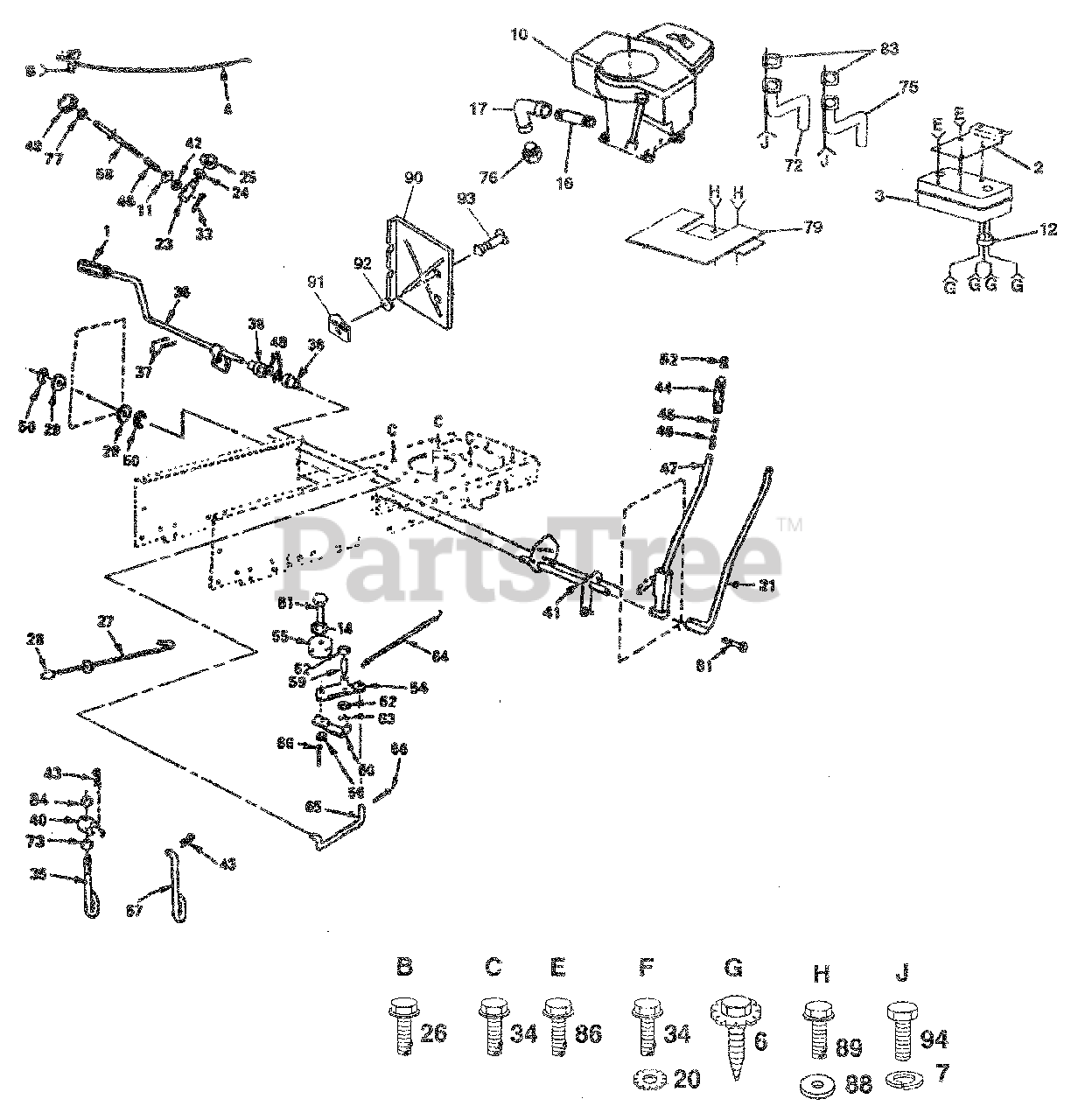

Engine Parts Diagram

  • Title

1

Husqvarna 8883R

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

2

Husqvarna 122439X

Bracket, Muffler, Mounting

$

$

Currently unavailable

3

Husqvarna 129464X

Muffler

$

$

Not available

4

Husqvarna 132763

Control, Throttle

$

$

Not available

6

Husqvarna 17030808

Screw, Spiderloc Hex Hd #8 x 1/2 AB

$

$

Not available

7

Husqvarna 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

10

Engine, Briggs & Stratton, 18 HP, Mode! Number 422777

$

$

Not available

11

Husqvarna 19131016

Washer 13/32 x 5/8 x 16 Gauge
(Superseded to 819131016)

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 101326L

Deflector, Muffler

$

$

Not available

14

Husqvarna 19131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 13280338

Pipe Nipple, Standard

$

$

Currently unavailable

17

Husqvarna 13200300

90° Elbow, 3/8 NPT

$

$

Not available

20

Husqvarna 11050600

Washer, Lock, External Tooth 3/4

$

$

Not available

21

Husqvarna 121006X

Rod Assembly, Lever
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 110810X

Trunnion, Depth Stop
(Superseded to 532110810)

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 19151218

Washer 15/32 x 3/4 x 16 Gauge

$

$

Currently unavailable

25

Husqvarna 12000037

Ring, Klip
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 17720410

Screw, Hex Washer Head, Thread Cutting 1/4-20x5/8

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 133261

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

28

Husqvarna 71673

Cap, Parking Brake
(Superseded to 532071673)

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 19292016

Washer 29/32 x 1-1/4 x 16 Gauge
(Superseded to 819292016)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 76020308

Pin, Cotter 3/32 x 1/2

$

$

Not available

34

Husqvarna 17490624

Screw, Hex Washer Head, Thd. Roll. 3/8-16 x 1-1/2 Type TT

$

$

Not available

35

Husqvarna 110448X

Lift, Link, Adjustable
(Superseded to 532110448)

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 122424X

Shaft, Pedal, Foot

$

$

Not available

37

Husqvarna 1572H

Roll Pin 3/16 x 1
(Superseded to 532001572)

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.49

$

In Stock, Qty 10

0

40

Husqvarna 110447X

Trunnion, Lift

$

$

Not available

41

Husqvarna 131925

Shaft Assembly, Lift

$

$

Not available

42

Husqvarna 110807X

Nut, Hex, Special
(Superseded to 532110807)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 4939M

Retainer, Spring

$

$

Not available

44

Husqvarna 109413X

Grip, Handle

$

$

Not available

45

Husqvarna 122364X

Plunger, Lever, Lift

$

$

Not available

46

Husqvarna 2878H

Spring

$

$

Currently unavailable

47

Husqvarna 121002X

Lever Assembly, Hand Kit

Note: (Includes Key #21)

$

$

Not available

48

Husqvarna 19211616

Washer 21/32 x 1 x 16 Gauge
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 100734K

Knob, Infinite 3/8-18

$

$

Not available

50

Husqvarna 12000022

E-Ring

$

$

Not available

52

Husqvarna 124526X

Button, Plunger

$

$

Not available

54

Husqvarna 123789X

Arm Assembly, Idler

$

$

Not available

55

Husqvarna 127783

Pulley, idler

$

$

Not available

56

Husqvarna 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 110029X

Link, Lift

$

$

Not available

58

Husqvarna 110729X

Rod, Adjust, Lift

$

$

Currently unavailable

59

Husqvarna 105708X

Bearing

$

$

Currently unavailable

60

Husqvarna 123205X

Retainer, Beit
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 74760824

Bolt, Hex 3/8-16 x 1-1/2

$

$

Currently unavailable

62

Husqvarna 110812X

Washer, Hardened

$

$

Not available

63

Husqvarna 12000039

Ring, Klip
(Superseded to 812000039)

$6.49

$

In Stock, Qty 13

0

64

Husqvarna 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$10.99

$

In Stock, Qty 20+

0

85

Husqvarna 105710X

Link, Clutch

$

$

Not available

86

Husqvarna 76020412

Pin, Cotter 1/8 x 3/4

$

$

Not available

72

Husqvarna 129465

Tube, Manifold, L H .

$

$

Not available

73

Husqvarna 73360700

Nut, Hex, Jam 7/16-20

$

$

Not available

75

Husqvarna 129466

Tube, Manifold, R.H.

$

$

Not available

76

Oil Drain Plug

Note: (See Engine Pages For Replacement Part Number)

$

$

Not available

77

Husqvarna 73350600

Nut, Hex, Jam 3/8-16

$

$

Not available

79

Husqvarna 128199

Shield, Heat

$

$

Not available

81

Husqvarna 74780624

Bolt, Hex 3/8-16 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

83

Husqvarna 8545J

Gasket, Muffler

$

$

Not available

84

Husqvarna 73710700

Nut, Crownlock 7/16-20

$2.99

$

Usually ships in 3-10 days

0

86

Husqvarna 17190408

Screw, Hex Wash Thdcut 1/40-20 UNC

$

$

Currently unavailable

88

Husqvarna 19131614

Washer 13/32 x 1 x 14 Ga.

$

$

Not available

89

Husqvarna 17490512

Screw, Thdrol 5/16-18 x 3/4

$

$

Not available

90

Husqvarna 133746

Shield, Heat 1/4 Turn

$

$

Not available

91

Husqvarna 105839X

Receptacle 1/4 Turn
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

92

Husqvarna 105838X

Retainer 1/4 Turn
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

93

Husqvarna 123650X

Stud 1/4 Turn
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 74780412

Bolt, Hex 1/4-20 x 3/4

$

$

Not available
