YTH 24V54 (960430188-00) - Husqvarna 54" Yard Tractor (2013-09) CHASSIS / FRAME Parts Diagram

54" Yard Tractor

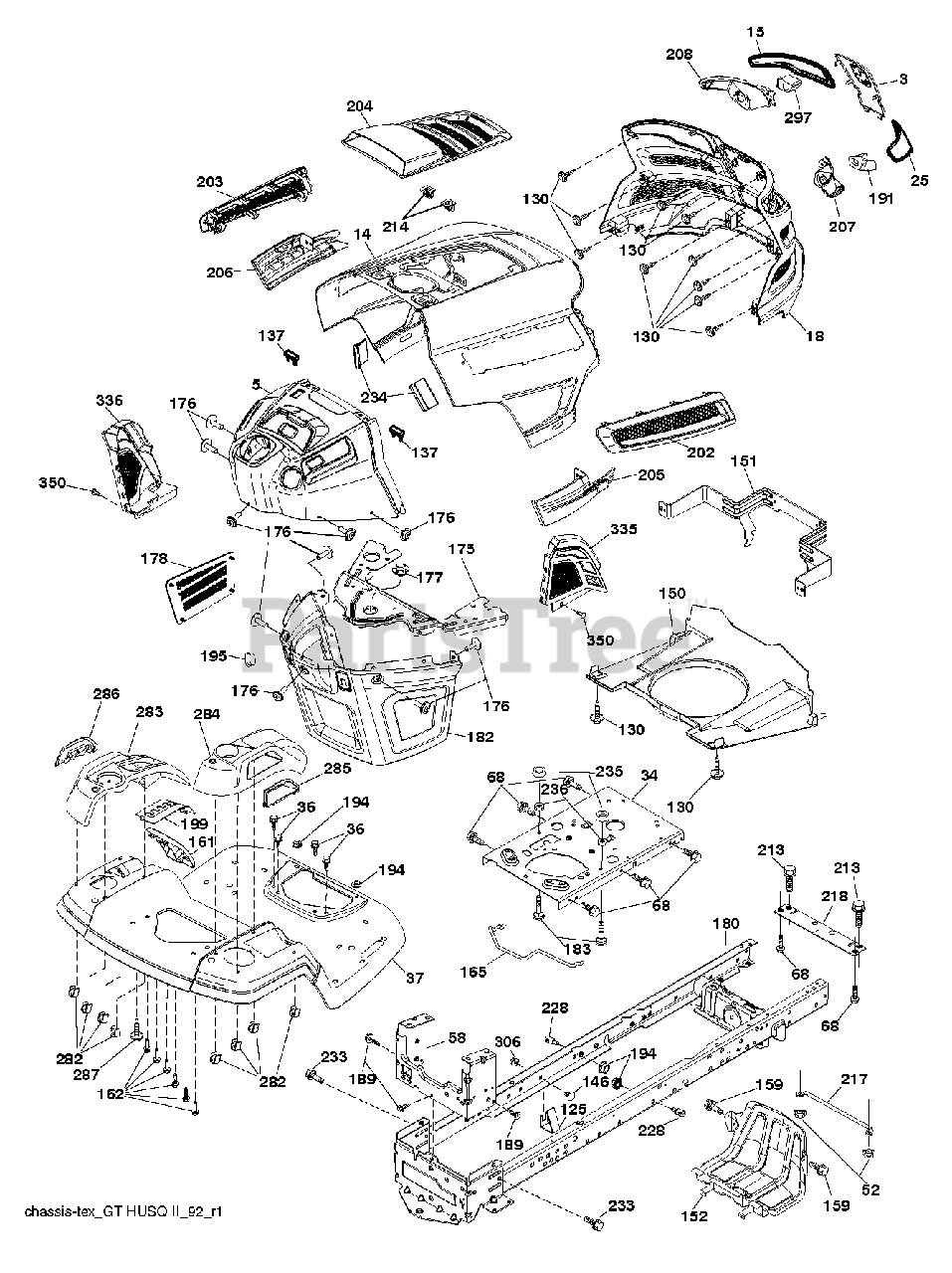

CHASSIS / FRAME Parts Diagram

  • Title

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532437483

DASH
(Superseded to 584357601)

$

$

Not available

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$80.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

$13.99

$

In Stock, only 4 left!

0

18

Husqvarna 532440653

GRILLE.SUBSTRATE.2011.
(Superseded to 597247201)

$100.99

$

In Stock, only 1 left!

0

25

Husqvarna 532443385

LENS.HEADLIGHT.RH.GTII.2011

$13.99

$

In Stock, only 4 left!

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$49.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441178

FENDER.TLT.FS.W/CPH/FW/RSF.668
(Superseded to 532423694)

$107.90

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 12

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$12.99

$

In Stock, Qty 20+

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

161

Husqvarna 532439781

WINDOW.FUEL.LT.HUSQ.TEX.498

$7.99

$

In Stock, Qty 7

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

SUPPORT.TANK.REAR.W/TEX

$24.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$24.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Husqvarna 532195227

BUSHING, STEERING

$6.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$30.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$157.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$87.99

$

In Stock, Qty 5

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

199

Husqvarna 532413485

PLATE.DECK.LIFT.HUSQ.LT

$11.99

$

In Stock, Qty 5

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

In Stock, Qty 10

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, Qty 15

0

204

Husqvarna 532435714

VENT.TOP.HUSQ.GT2
(Superseded to 587485801)

$18.99

$

In Stock, only 1 left!

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$13.99

$

In Stock, only 1 left!

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

Note: LH

$4.99

$

In Stock, only 1 left!

0

207

Husqvarna 532439734

BEZEL LIGHT.RH.GT.II.MYLAR
(Superseded to 587464801)

Note: RH

$6.99

$

In Stock, Qty 12

0

208

Husqvarna 532439735

BEZEL LIGHT.LH.GT.II.MYLAR
(Superseded to 587464501)

Note: LH

$6.99

$

In Stock, only 3 left!

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 2 left!

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

233

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.49

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 20+

0

283

Husqvarna 532439861

CONSOLE.DECK.LIFT.R.SDFL.HUSQ
(Superseded to 532413491)

$60.99

$

In Stock, only 1 left!

0

284

Husqvarna 532439823

CONCOLE.CNTRL.PDL.HUSQ.LT.498
(Superseded to 532439150)

$74.99

$

In Stock, only 1 left!

0

285

Husqvarna 532416315

CONSOLE INSERT RH

Note: RH

$14.99

$

In Stock, only 1 left!

0

286

Husqvarna 532416317

CONSOLE.INSRT.LH.HUSQ.LT.BLACK

Note: LH

$9.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

In Stock, only 1 left!

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, Qty 10

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, Qty 20+
