ZTH 6123 KOLA (968999189) - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-09) Main Frame Assembly Parts Diagram

61" Zero-Turn Mower

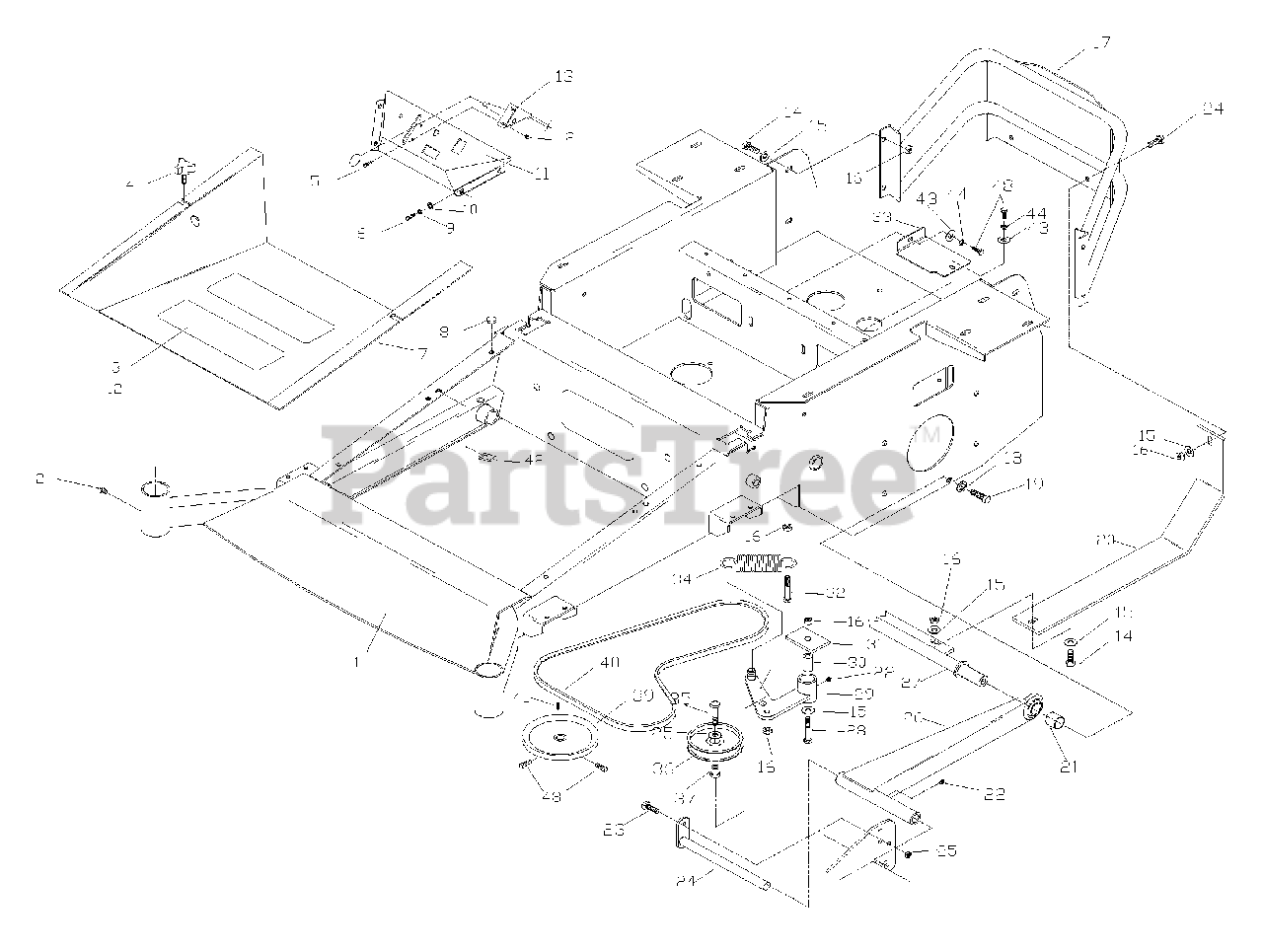

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539105492

FRAME 72" MODEL

$

$

Not available

1

Husqvarna 539105886

FRAME 52" & 61"

$

$

Not available

2

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539977778

ANTI SKID PAD

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 539990411

HCS #10 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990362

1/4 x 5/8 SELF TAP

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 539104721

FOOT PLATE

$218.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102587

BUMPER

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 539990052

1/4 LOCK WASHER

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990598

1/4 FLAT WASHER

$

$

Not available

11

Husqvarna 539105151

CONSOLE W DECAL

$

$

Not available

12

Husqvarna 539976977

NUT #10 NYLOC

$

$

Not available

13

Husqvarna 539102732

THROTTLE CABLE

$

$

Not available

14

Husqvarna 539990563

HCS 3/8 X 1.0

$1.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990517

3/8 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990546

NUT 3/8 LOCK

$

$

Not available

17

Husqvarna 539104329

ENGINE GUARD

$485.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

19

Husqvarna 539105905

HCS 7/16 X 1.0 GD 8

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105022

SKID PLATE

$36.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104521

STRUT SPACER, 52"/61" DECKS

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 539976934

HCS 5/16 X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539102619

STRUT PIN, 52"/61" DECKS

$40.99

$

In Stock, only 3 left!

0

25

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539104390

STRUT, 52"/61" DECKS

$302.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105478

CROSS SHAFT 72"

$78.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104332

CROSS SHAFT 52" & 61"

$145.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539103433

HCS 1/2 X 3.25

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 539104388

IDLER
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 8

0

31

Husqvarna 539102236

SUPPORT PLATE

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990655

HCS 3/8 X 1.5

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539105716

IDLER COVER

$

$

Not available

34

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990730

HCS 3/8 X 1.75

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

37

Husqvarna 539976695

IDLER BUSHING

$

$

Not available

38

Husqvarna 539102717

5/16 X 5/8 SETSCW.

$3.99

$

In Stock, Qty 6

0

39

Husqvarna 539101176

PULLEY

$

$

Not available

40

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 20+

0

41

Husqvarna 539101177

KEY 5mm SQ.

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539104763

CLIP

$6.49

$

In Stock, Qty 16

0

43

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990187

5/16 LOCK WASHER
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539105577

STRUT RT. SIDE

Note: For 72" Model Only; (NOT SHOWN)

$218.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539105480

STRUT PIN RT. SIDE

Note: For 72" Model Only; (NOT SHOWN)

$36.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539105484

STRUT SPACER RT.SIDE

Note: For 72" Model Only; (NOT SHOWN)

$

$

Not available

48

Husqvarna 539990209

HCS 5/16 X 1.0

$3.49

$

Usually ships in 3-10 days

0
