Black Max Parts Lookup & Diagrams

Need help finding your Black Max model number?

Your Black Max equipment has a factory model number and serial number on a sticker-like label or metallic tag attached to the unit in a place away from moving parts (usually near the handle, under the seat, or on the side of the unit). The best way to buy repair parts for your Black Max is to begin by searching for your Black Max model number on PartsTree and use the OEM Black Max parts diagrams to find the parts that fit exactly like the originals from the Black Max factory. When you locate your Black Max model tag, take a picture for future repair parts needs.

What do Black Max model tags look like?

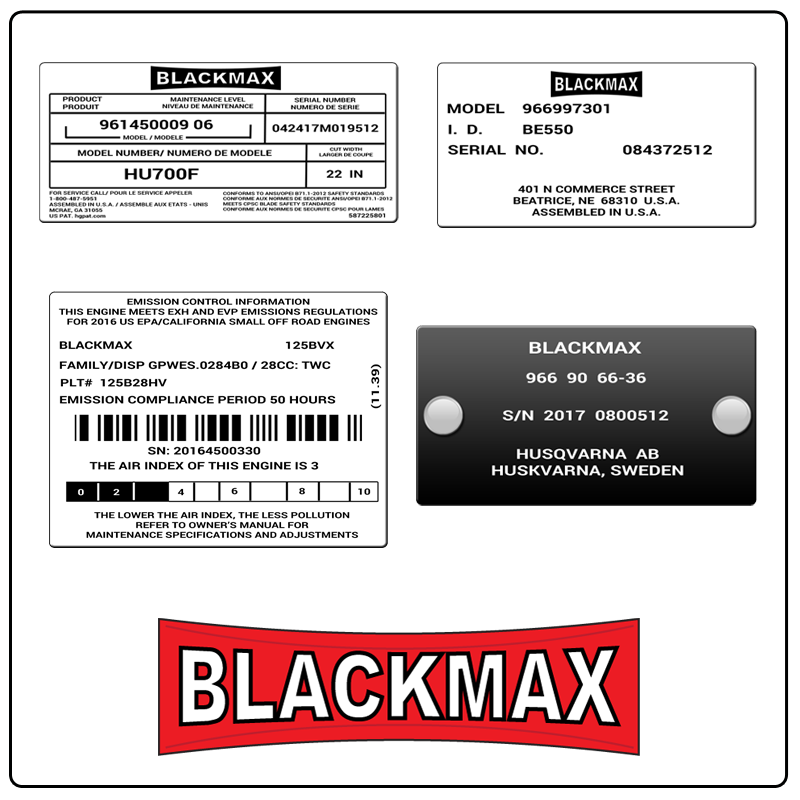

examples of what Black Max model tags usually look like and a large Black Max logo
A Note On Engine Parts

To buy engine parts for your Black Max, like an air filter, oil filter, fuel filter, spark plug, tune-up kit, or carburetor parts, you will likely need to search separately on PartsTree for your engine model. On Black Max equipment, the engine model and specification ("spec") numbers, as well as serial number and sometimes type and code, are often stamped above the muffler, by the spark plug, or near the overhead valve cover.
