Eaton Parts Lookup & Diagrams

Eaton Parts by Equipment Type

Need help finding your Eaton model number?

Your Eaton equipment has a factory model number and serial number on a sticker-like label or metallic tag attached to the unit in a place away from moving parts (usually near the handle, under the seat, or on the side of the unit). The best way to buy repair parts for your Eaton is to begin by searching for your Eaton model number on PartsTree and use the OEM Eaton parts diagrams to find the parts that fit exactly like the originals from the Eaton factory. When you locate your Eaton model tag, take a picture for future repair parts needs.

What do Eaton model tags look like?

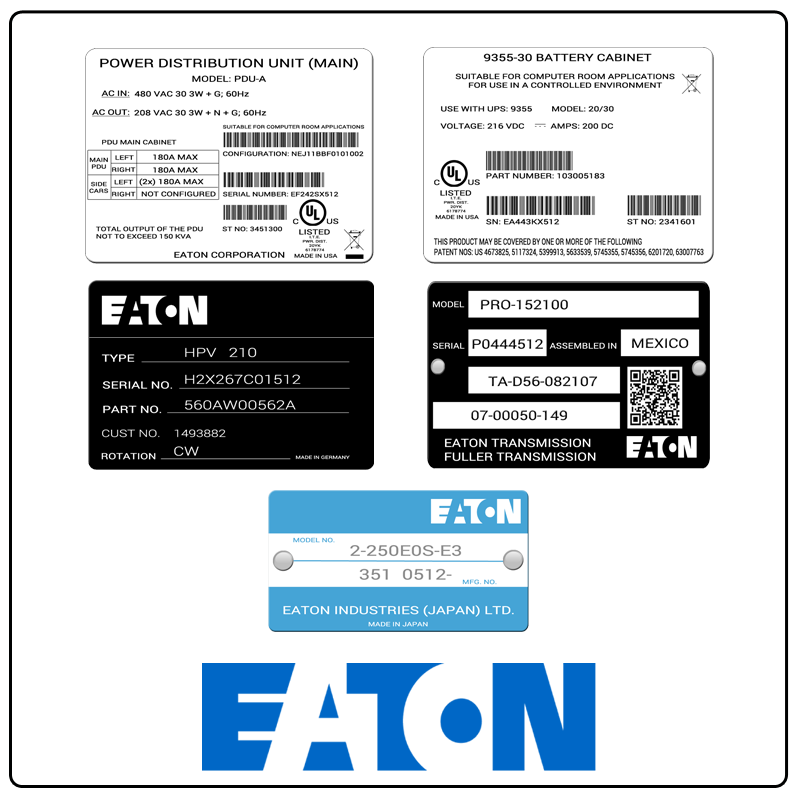

examples of what Eaton model tags usually look like and a large Eaton logo
A Note On Engine Parts

To buy engine parts for your Eaton, like an air filter, oil filter, fuel filter, spark plug, tune-up kit, or carburetor parts, you will likely need to search separately on PartsTree for your engine model. On Eaton equipment, the engine model and specification ("spec") numbers, as well as serial number and sometimes type and code, are often stamped above the muffler, by the spark plug, or near the overhead valve cover.
