Need help finding your Mastercraft model number?

Your Mastercraft equipment has a factory model number and serial number on a sticker-like label or metallic tag attached to the unit in a place away from moving parts (usually near the handle, under the seat, or on the side of the unit). The best way to buy repair parts for your Mastercraft is to begin by searching for your Mastercraft model number on PartsTree and use the OEM Mastercraft parts diagrams to find the parts that fit exactly like the originals from the Mastercraft factory. When you locate your Mastercraft model tag, take a picture for future repair parts needs.

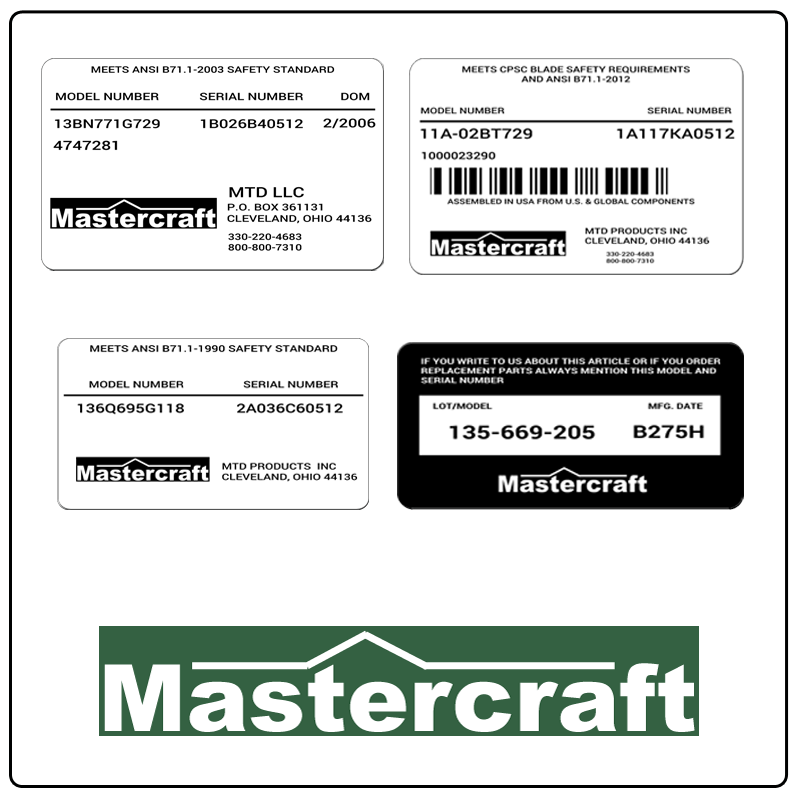

What do Mastercraft model tags look like?

examples of what Mastercraft model tags usually look like and a large Mastercraft logo
A Note On Engine Parts

To buy engine parts for your Mastercraft, like an air filter, oil filter, fuel filter, spark plug, tune-up kit, or carburetor parts, you will likely need to search separately on PartsTree for your engine model. On Mastercraft equipment, the engine model and specification ("spec") numbers, as well as serial number and sometimes type and code, are often stamped above the muffler, by the spark plug, or near the overhead valve cover.
