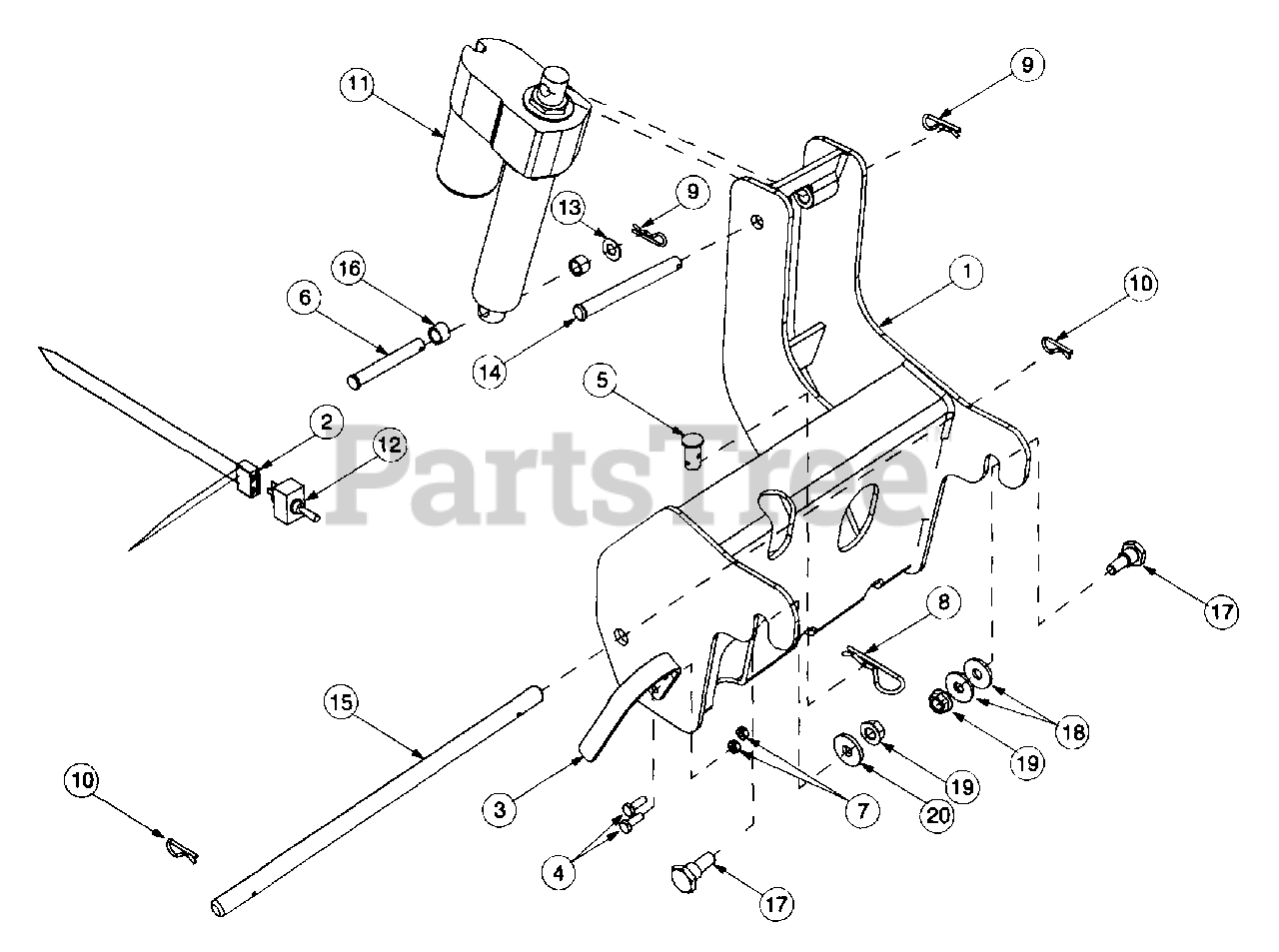

002 (190-002-100) - Cub Cadet 30" Hydraulic Tiller Attachment Hitch Parts Diagram

30" Hydraulic Tiller

Attachment Hitch Parts Diagram

  • Title

1

Cub Cadet 603-0736-0716

Sleeve Hitch Bracket Assembly

$

$

Not available

2

Cub Cadet 629-3012

Electric Lift Cylinder Wiring Harness
(Superseded to 929-3012)

$

$

Not available

Cub Cadet 725-1543

Fuse, 30 Amp

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-3600-0716

Hose Hook

$53.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-0309A

Clevis Pin, .62 Dia.

$12.99

$

In Stock, only 2 left!

0

6

Cub Cadet 711-1322

Clevis Pin

$22.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0291

Hex Lock Nut, 1/4-20

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.0

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 714-0147

Internal Cotter Pin, .125 x 1.75

$5.49

$

In Stock, Qty 6

0

10

Cub Cadet 714-0149B

Internal Cotter Pin

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 717-0620

Electric Lift Cylinder
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-1053

Toggle Switch
(Superseded to 925-1053)

$111.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0272

Flat Washer, .510 x 1.0 x .060

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0805

Hinge Pin

$

$

Not available

15

Cub Cadet 738-3173

Hitch Rod

$

$

Not available

16

Cub Cadet 750-1206

Spacer, .542 x .750 x .500

$17.99

$

In Stock, only 2 left!

0

17

Cub Cadet 738-1020

Shoulder Bolt, .625 x .5, 7/16-20

$7.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0319

Flat Washer,.450 x 1.25 x .150
(Superseded to 936-0319)

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0459

Flange Lock Nut, 7/16 x 20 GR8

$5.49

$

In Stock, Qty 13

0

20

Cub Cadet 736-0322

Flat Washer, .450 x 1.25 x .170

$9.99

$

In Stock, only 4 left!

0
