004 (190-004-100) - Cub Cadet 42" Hydraulic Tiller Hydraulic Control Valve And Tiller Frame Parts Diagram

42" Hydraulic Tiller

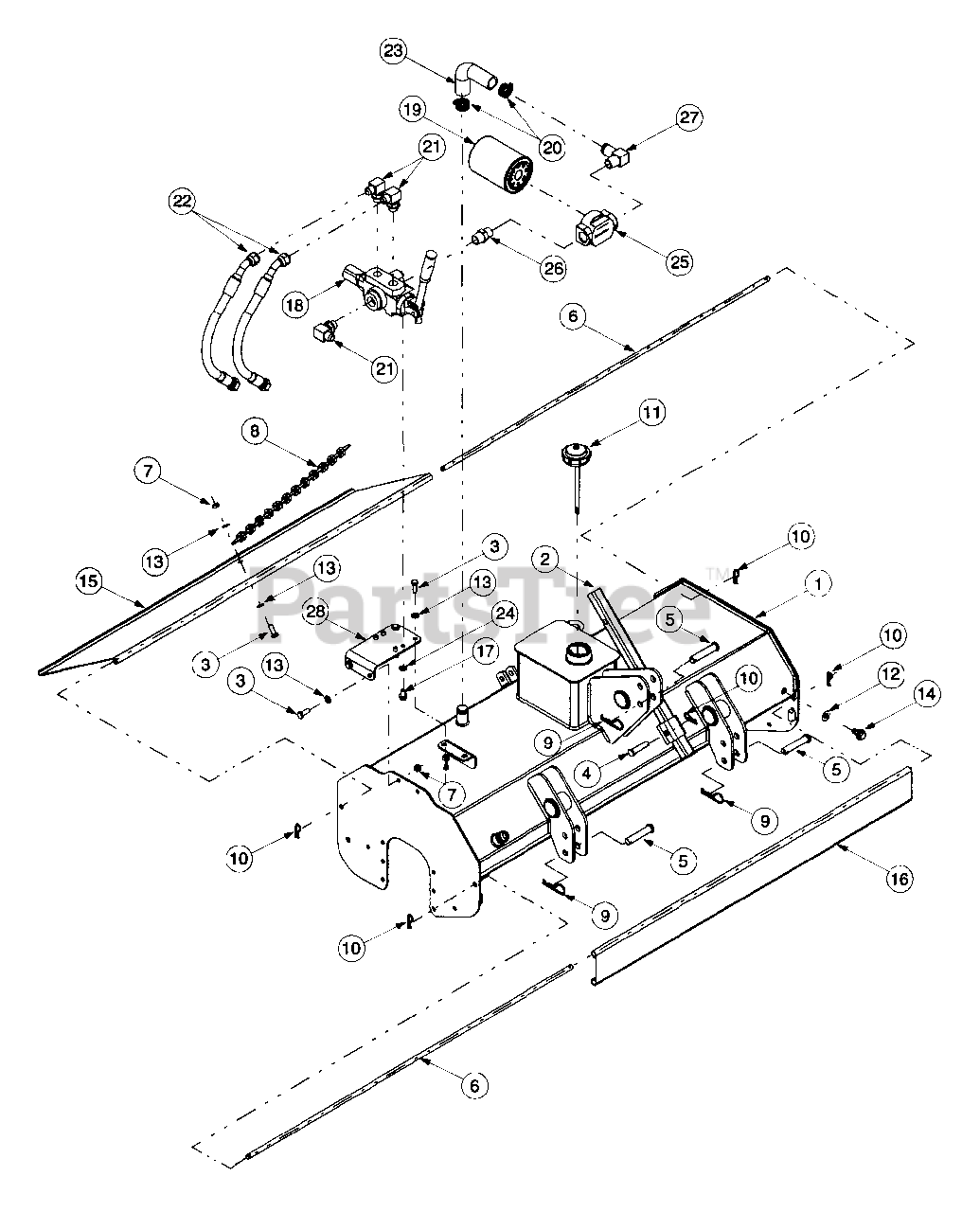

Hydraulic Control Valve And Tiller Frame Parts Diagram

  • Title

1

Cub Cadet 686-0144-0716

42" Tiller Frame Assembly

$

$

Not available

2

Cub Cadet 686-0155-0637

Tiller Stand

$

$

Not available

3

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 711-0510

Clevis Pin, .50 x 2.0

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-0577

Clevis Pin, 5/8 Dia. x 2 13/16

$

$

Not available

6

Cub Cadet 711-1381

Shield Pivot Rod

$

$

Not available

7

Cub Cadet 712-3000

Hex Lock Nut, 3/18-16, Ctr Lock

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 713-0490

Shield Chain, 24.37

$

$

Not available

9

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 714-0419B

Internal Cotter Pin

$

$

Currently unavailable

11

Cub Cadet 720-0315

Vented Tank Cap

$

$

Not available

12

Cub Cadet 721-0223

Stat-O-Seal O Ring
(Superseded to 921-0223)

$

$

Not available

13

Cub Cadet 736-0185

Flat Washer, .375 x .738 x .063

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 738-0940

Oil Drain Plug

$

$

Not available

15

Cub Cadet 786-0253-0716

Rear Tine Shield, 42"

$

$

Not available

16

Cub Cadet 786-0275-0716

Front Tine Shield, 42"

$

$

Not available

17

Cub Cadet 710-0870

Hex Washer Hd Screw, 3/8-16 x .625

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 718-0673

Energy Hydraulic Valve
(Superseded to 918-0673)

$

$

Not available

19

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$45.99

$

In Stock, Qty 8

0

20

Cub Cadet 726-0132

Hose Clamp

$16.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 727-0220

90° Hydraulic Adapter, 7/8

$

$

Not available

22

Cub Cadet 727-0520

Hydraulic Hose, 7/8-14

$

$

Not available

23

Cub Cadet 727-0625

Hydraulic Hose, 90°, 1.37 OD, 1.0 ID

$

$

Not available

24

Cub Cadet 736-0217

Lock Washer, 3/8

$

$

Not available

25

Cub Cadet 737-0306

Filter Housing
(Superseded to 681-0179)

$

$

Not available

26

Cub Cadet 737-0338

Hydraulic Adapter, 3/4

$

$

Not available

27

Cub Cadet 737-0341

90° Hydraulic Adapter, 3/4NPTF,1.0

$

$

Not available

28

Cub Cadet 786-0265-0637

Hydraulic Valve Mounting Bracket

$

$

Not available
