0045820 - Generac Portable Generator (SN: 3542434 - 3632298) (2002) GT-990 Engine (0D4487) Parts Diagram

Portable Generator

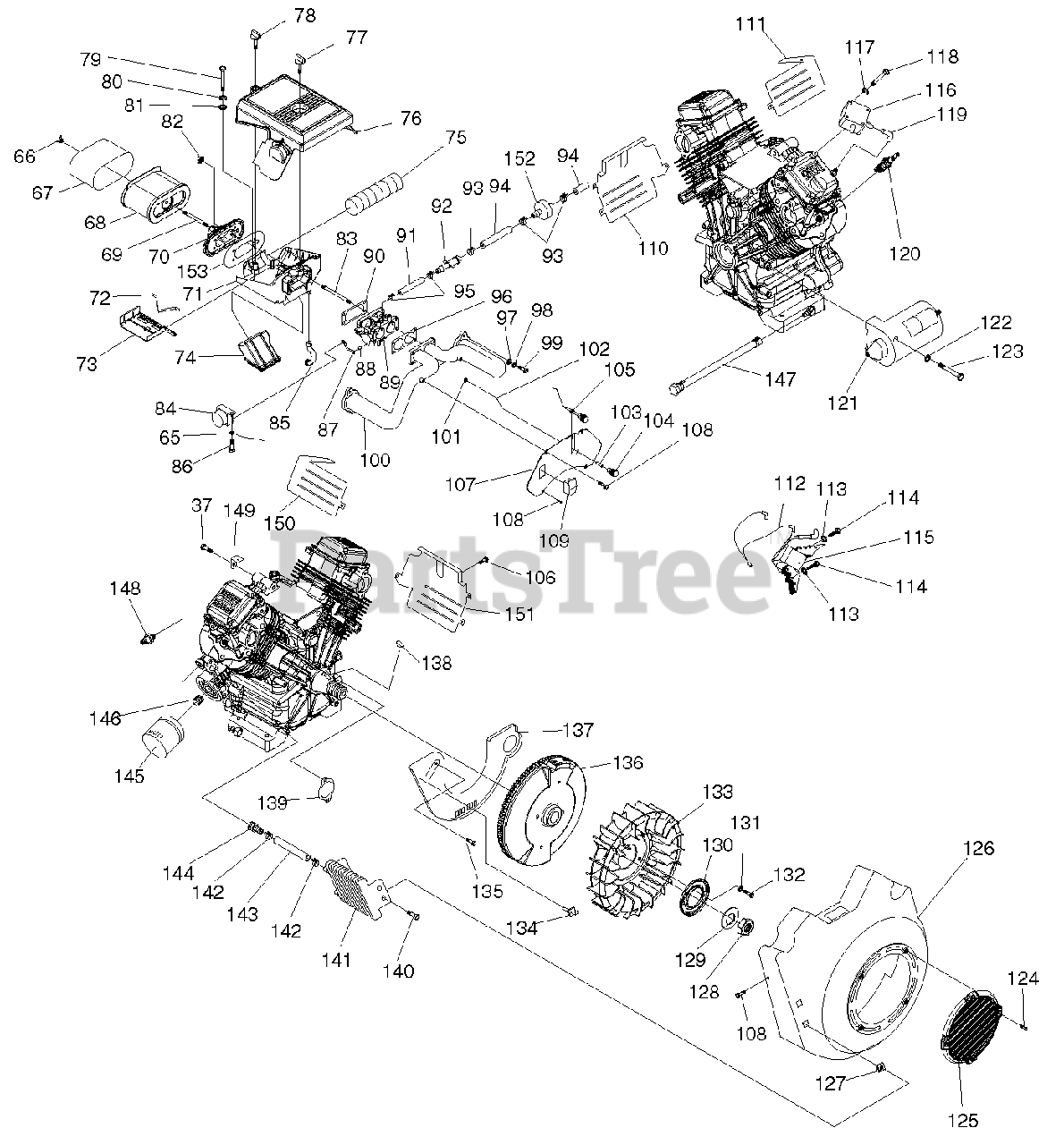

GT-990 Engine (0D4487) Parts Diagram

  • Title

65

Generac 0536210209

ASSEMBLY WIRE

$

$

Not available

66

Generac 087680

WINGNUT, AIRBOX

$

$

Not available

67

Generac 0D4511

PRECLEANER, AIR

$7.49

$

In Stock, Qty 11

0

68

Generac 0D3262

ELEMENT, AIR CLEANER
(Superseded to 0D9723S)

Note: USE 0D9723S ELEMENT,AIR FILTER

$54.99

$

In Stock, Qty 5

0

69

Generac 0D6020

STUD M6-1.0 X 73
(Superseded to 0E5302)

$26.99

$

Usually ships in 2-12 days

0

70

Generac 0D4183

ADAPTOR, SPIT BACK

$13.99

$

In Stock, only 2 left!

0

71

Generac 0D2774B

BASE, AIRBOX

$29.99

$

In Stock, only 4 left!

0

72

Generac 0D5125

SPRING, WINTER/SUMMER VALVE

$2.99

$

In Stock, only 3 left!

0

73

Generac 0D2930

VALVE, SUMMER / WINTER

$6.49

$

Usually ships in 2-12 days

0

74

Generac 0D4612

SNORKEL, AIR INTAKE

$

$

Not available

75

Generac 0D6143

TUBE, HEAT RISER 50.8 I.D.

$108.99

$

Usually ships in 2-12 days

0

76

Generac 0D2775

COVER, AIRBOX

$30.99

$

In Stock, only 4 left!

0

77

Generac 0D5014A

KNOB, AIRBOX 17mm

$3.99

$

In Stock, Qty 12

0

78

Generac 0D5014B

KNOB, AIRBOX 95MM

$4.49

$

In Stock, Qty 13

0

79

Generac 049721

SCREW HHC M6-1.0 X 35
(Superseded to G049721)

$11.99

$

In Stock, Qty 5

0

80

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

Usually ships in 2-12 days

0

81

Generac 022473

WASHER FLAT 1/4
(Superseded to G022473)

$2.99

$

Usually ships in 2-12 days

0

82

Generac 052857

NUT LOCK FLANGE M6-1.0

$

$

Not available

83

Generac 0D6021

STUD, METRIC

$

$

Not available

84

Generac 0D4522

CONTROLLER ASSEMBLY

Note: service: if the serial# on the unit is before 3691548, customer must order D45220ESV retrofi kit after serial# 3691548, use 0D4522 12/31/02

$233.99

$

Usually ships in 2-12 days

0

85

Generac 0C9093

HOSE, BREATHER

$

$

Not available

86

Generac 074908

SCREW HHTT M5-0.8 X 10
(Superseded to G074908)

$1.99

$

In Stock, Qty 6

0

87

Generac 0D6224

ROD,GOV. STEP MOTOR-CARBURETOR

$7.49

$

Usually ships in 2-12 days

0

88

Generac 0D6098

SPACER, ROD-THROTTLE

$1.99

$

In Stock, Qty 5

0

89

Generac 0C8526

CARBURETOR
(Superseded to 0C85260SRV)

Note: 0C8526 CARD REBUILD KIT IS 0C85260SRV. 0C8526 CARB SOLONOID IS 0E0485 (SINGLE WIRE). FOR REPLACEMENT CARB ORDER 0E25480ESV, EXCEPT ON 4451-0 AND 4451-1 USE 0D80590ESV

$135.99

$

Usually ships in 2-12 days

0

90

Generac 0D4024

GASKET,CARB TO SPACER

$13.99

$

In Stock, only 2 left!

0

91

Generac 082580

HOSE 3/16ID

$

$

Not available

92

Generac 0D5498

ADAPTER,HOSE MENDER 1/4"X3/16"

$

$

Not available

93

Generac 048031C

CLAMP HOSE BAND 1/4

$1.49

$

In Stock, only 2 left!

0

94

Generac 030340

HOSE 1/4 ID

$

$

Not available

95

Generac 048031G

CLAMP HOSE BAND 3/16

$1.49

$

In Stock, Qty 20+

0

96

Generac 0D5282

GASKET, MANIFOLD TO CARBURETOR

$37.99

$

In Stock, only 2 left!

0

97

Generac 070008

WASHER FLAT M8
(Superseded to G070008)

$1.49

$

Usually ships in 2-12 days

0

98

Generac 070006

WASHER LOCK M8
(Superseded to G070006)

$1.99

$

Usually ships in 2-12 days

0

99

Generac 049821

SCREW SHC M8-1.25 X 30
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

100

Generac 0C9911

MANIFOLD, INTAKE
(Superseded to 0J8893)

Note: USE 0J8893

$197.99

$

Usually ships in 2-12 days

0

101

Generac 051714

NUT HEX M3-0.5
(Superseded to G051714)

$1.49

$

Usually ships in 2-12 days

0

102

Generac 0D5411

ROD, SUMMER / WINTER VALVE

$4.49

$

Usually ships in 2-12 days

0

103

0D6260

SLEEVE, INSERT WINTER/ SUMMER KNOB

$

$

Not available

104

Generac 0D5416

KNOB, CONTROL SUMMER/ WINTER
(Superseded to 0D5416A)

Note: ORDER 0D5416A

$6.99

$

In Stock, only 2 left!

0

105

Generac 0D5398

CHOKE ASSEMBLY

$20.99

$

In Stock, only 2 left!

0

106

Generac 066849

SCREW TAPTITE M5-0.8 X 8 BP
(Superseded to G066849)

$1.49

$

Usually ships in 2-12 days

0

107

Generac 0D3432

PANEL, CONTROL FACE PLATE

$24.99

$

Usually ships in 2-12 days

0

108

Generac 0C1069

SCREW TAPTITE M6-1.0X8 YELLOW CHROME

Note: USE 0E5139 ON MODELS 4858-0, 4629-2, 4806-0 4857-0, 4861-0, 4862-0

$0.99

$

Usually ships in 2-12 days

0

109

Generac 0D4767

SWITCH ROCKER

$73.99

$

In Stock, only 1 left!

0

110

Generac 0D1142A

WRAPPER, LOWER CYLINDER 2

$24.99

$

Usually ships in 2-12 days

0

111

Generac 0D1143

WRAPPER, UPPER CYLINDER 2

$12.99

$

Usually ships in 2-12 days

0

112

Generac 0C3053

ASSEMBLY, GROUND WIRE

Note: ORDER KIT P/N 0E49970ESV.

$52.99

$

Usually ships in 2-12 days

0

113

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

Usually ships in 2-12 days

0

114

Generac 092079

SCREW TAPTITE M6-1.0 X 25 BP

$

$

Not available

115

Generac 0C3052

ASSEMBLY, IGNITION COIL
(Superseded to 0K63030SRV)

Note: USE ON FLYWHEEL P/N 0C3725A & 0C3725B. WHEN 0C3052 INVENTORY DEPLETED USE 0G3224BSRV

$124.99

$

In Stock, Qty 5

0

116

Generac 0C4147

PUMP, IMPULSE
(Superseded to 0C41470SRV)

Note: 990 PORTABLE ENGINE & 760/990/999 HOMESTANDBY HORIZONTAL ENGINES ORDER P/N 0C41470SRV. FOR ALL VERTICAL LAWN AND GARDEN ENGINES ORDER P/N 0C4147ASRV.

$

$

Not available

117

Generac 022264

WASHER LOCK M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

118

Generac 0D6142

SCREW PPHM M4-0.7 X 40

$0.99

$

Usually ships in 2-12 days

0

119

Generac 0D5399

ELBOW, RUBBER 90 DEG.

$3.99

$

In Stock, only 2 left!

0

120

Generac 072347

SPARKPLUG

$7.49

$

In Stock, Qty 20+

0

121

Generac 0C3017

STARTER

$

$

Not available

122

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

123

Generac 061906

SCREW HHC M8-1.25 X 85 G8.8
(Superseded to G061906)

$1.49

$

Usually ships in 2-12 days

0

124

0C6152

SCREW, HI-LO SELF TAP #10- 16X1.25

$

$

Not available

125

Generac 0D3689

ROTATING SCREEN

$10.99

$

Usually ships in 2-12 days

0

126

Generac 0C3022B

HOUSING, BLOWER GASOLINE COOLER

$

$

Not available

127

Generac 0C9763

NUT, GROMMET 1/4 PLUG

Note: VERIFY THAT CUSTOMER IS NOT LOOKING FOR SCREW 0D6147

$2.49

$

Usually ships in 2-12 days

0

128

Generac 0C3034

NUT,HEX M24

$6.99

$

Usually ships in 2-12 days

0

129

Generac 0C3033

WASHER, M24

$2.49

$

Usually ships in 2-12 days

0

130

Generac 0C3032

PLATE, FAN

$7.99

$

Usually ships in 2-12 days

0

131

Generac 0A5992

WASHER SHAKEPROOF INT M8 SS

$0.99

$

Usually ships in 2-12 days

0

132

Generac 051754

SCREW HHC M8-1.25 X 12 G8.8

$

$

Not available

133

Generac 0C3031

FAN, NYLON

$43.99

$

Usually ships in 2-12 days

0

134

Generac 085011

INSULATOR ASSEMBLY IGNITION
(Superseded to G085011)

$2.99

$

Usually ships in 2-12 days

0

135

Generac 045756

SCREW TAPTITE M6-1X10 YELLOW CHROME
(Superseded to G045756)

$0.99

$

In Stock, Qty 6

0

136

Generac 0C3725A

FLYWHEEL ASSEMBLY
(Superseded to 0C3725ASRV)

Note: ORDER P/N 0C3725ASRV..

$479.99

$

Usually ships in 2-12 days

0

137

Generac 0C3016A

PLATE, BACKING GT990 WITH OIL COOL

$

$

Not available

138

Generac 082774

KEY, WOODRFF 4 X 19D
(Superseded to G082774)

$12.99

$

In Stock, Qty 11

0

139

Generac 0C3043

GASKET, MANIFOLD / PORT

$2.49

$

In Stock, Qty 11

0

140

Generac 0C9764

PLASTITE,1/4-15 X 3/4

$0.99

$

In Stock, only 2 left!

0

141

Generac 0C3026

COOLER, OIL
(Superseded to 0E9506)

$45.99

$

Usually ships in 2-12 days

0

142

Generac 040173

CLAMP HOSE #5.5 .62 - .62

$

$

Not available

143

Generac 0C9806

HOSE, 3/8" I.D. X 6" LONG
(Superseded to 0G40210SRV)

$77.99

$

Usually ships in 2-12 days

0

144

Generac 035461A

BARBED STR 1/4NPT X 3/8 WITH VIBRA SEAL

$7.99

$

Usually ships in 2-12 days

0

145

Generac 070185

FILTER, OIL D 69 X 64 LONG
(Superseded to 070185BS)

$19.99

$

In Stock, only 4 left!

0

146

Generac 0C7292

NIPPLE, 3/4"-16 UNF

$2.49

$

Usually ships in 2-12 days

0

147

Generac 0D3083

ASSEMBLY, OIL DRAIN HOSE
(Superseded to 0G44030SRV)

Note: NO LONGER AVAILABLE ORDER 0G44030SRV FOR REPLACEMENT DRAIN CAP ONLY USE PART NUMBER 0G4426

$27.99

$

In Stock, only 2 left!

0

148

Generac 0C3025

SWITCH, OIL PRESS

Note: THE TWO WIRE SCREWS IF NEEDED ARE PART NUMBER 036916

$

$

Not available

149

Generac 0D4550

BRACKET, AIRBOX SUPPORT

$3.49

$

Usually ships in 2-12 days

0

150

Generac 0C3018

WRAPPER, UPPER CYLINDER 1

$14.99

$

Usually ships in 2-12 days

0

151

Generac 0C3019

WRAPPER, LOWER CYLINDER 1

$22.99

$

Usually ships in 2-12 days

0

152

Generac 0D6313

FILTER, FUEL

$5.99

$

In Stock, Qty 20+

0

153

Generac 0D6327

GASKET, SPITBACK

$2.49

$

In Stock, only 3 left!

0
