0046351 - Generac Power Transfer Switch (SN: 3715304 - 3744234) (2016) 200 A, 3-pole Switch Assembly (0E4312$-F) Parts Diagram

Power Transfer Switch

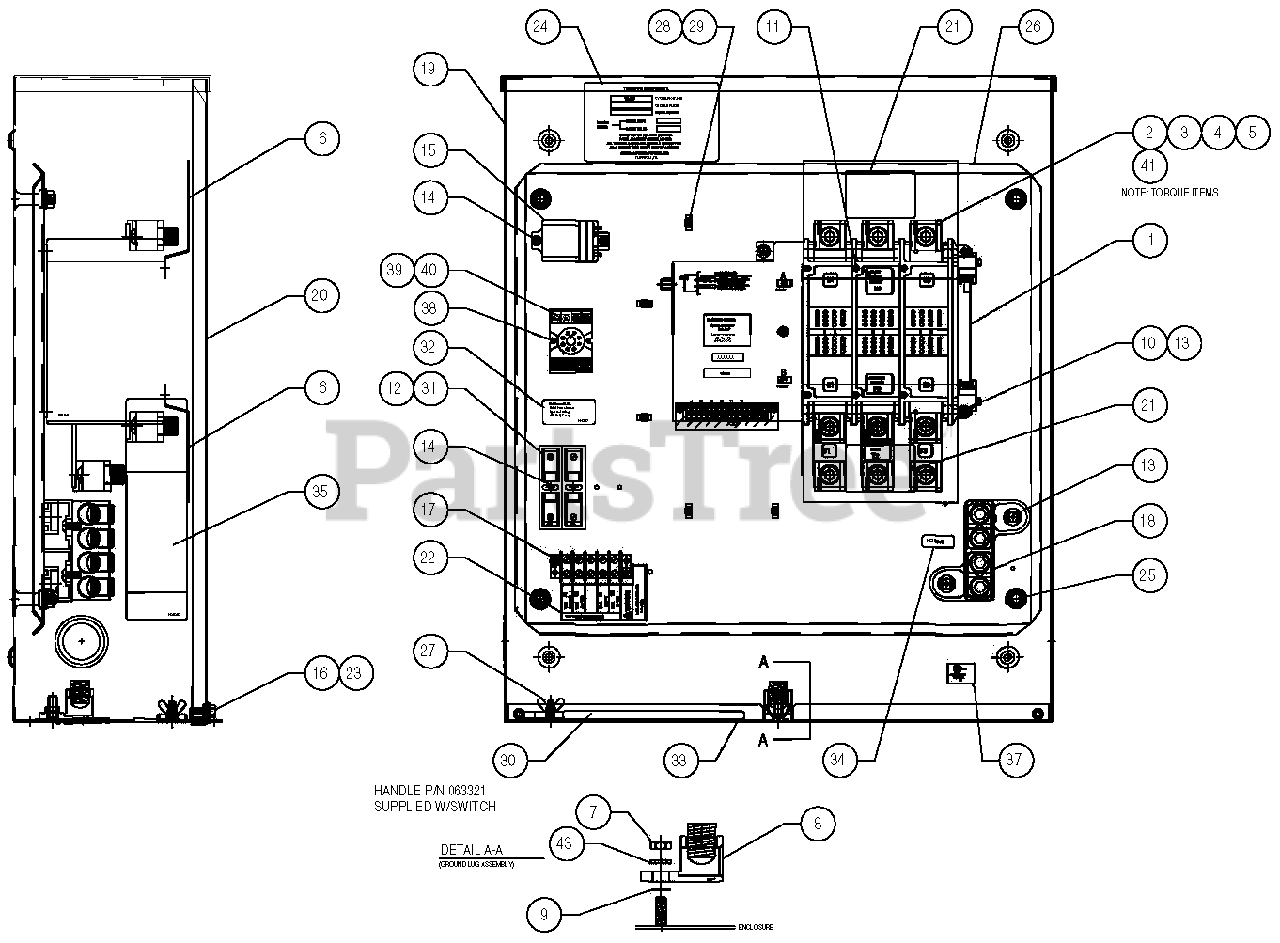

200 A, 3-pole Switch Assembly (0E4312$-F) Parts Diagram

  • Title

1

Generac 0C8885

XFER SW-W 200A600V3P

$3560.99

$

Usually ships in 2-12 days

0

2

Generac 0A9949

LUG SLDLSS 400-#4X1/4-20 CU7AL

$34.99

$

Usually ships in 2-12 days

0

3

Generac 0C4896

SCREW FHM M8-1.25 X 20MM CR

$0.99

$

Usually ships in 2-12 days

0

4

Generac 067989

NUT LOCK FL M8-1.25 YEL CHR
(Superseded to G067989)

$3.49

$

In Stock, Qty 20+

0

5

Generac 026902

SCREW HHTT #8-32 X 1/4 CZ
(Superseded to G026902)

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0C7907D

COVER LUG 3P 150/200AMP

$18.99

$

Usually ships in 2-12 days

0

7

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$2.49

$

In Stock, only 3 left!

0

8

Generac 057329

LUG SLDLSS 350-#6X13/32 AL/CU

$

$

Not available

9

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

10

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 2 left!

0

11

Generac 0C8275

SCREW PPHM DSEMS M4-7 X 10 ZNC

$0.99

$

Usually ships in 2-12 days

0

12

Generac 073591

FUSE HOLDER

$

$

Not available

13

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.99

$

Usually ships in 2-12 days

0

14

Generac 0A1495

SCREW HHTT M4-0.7 X 10 BP

$1.49

$

Usually ships in 2-12 days

0

15

Generac 063617

RELAY PNL 12VDC DPDT 10A@240VA
(Superseded to G063617)

$41.99

$

Usually ships in 2-12 days

0

16

Generac 047411

SCREW HHC M6-1.0 X 16 G8.8
(Superseded to G047411)

$1.99

$

Usually ships in 2-12 days

0

17

Generac 0A1661

RIVET POP .156 X .675 AL

$0.99

$

Usually ships in 2-12 days

0

18

Generac 0C4449A

ASS'Y-NTRL BL150-200A

Note: ORDER 0C4449ASRV

$

$

Not available

19

Generac 0E2865

WELDMENT,TRANSFER SWITCH BOX

$492.99

$

Usually ships in 2-12 days

0

20

Generac 0D3718

COVER, TRANSFER SWITCH BOX

$218.99

$

Usually ships in 2-12 days

0

21

Generac 0C8308

DECAL TERMINAL SHOCK HAZARD

$2.49

$

Usually ships in 2-12 days

0

22

Generac 0C2262

DECAL TERMINAL STRIP

$1.49

$

Usually ships in 2-12 days

0

23

Generac 0F6165

WASHER M6 NYLON

$3.49

$

Usually ships in 2-12 days

0

24

0F5569

DECAL,SWITCH RATING

$

$

Not available

25

Generac 064101

NUT LOCK FL 3/8-16
(Superseded to G064101)

$2.49

$

In Stock, only 4 left!

0

26

Generac 0E2866

SUBPLT 200A TS 3R

$146.99

$

Usually ships in 2-12 days

0

27

Generac 087680

NUT WING M6-1.0

$

$

Not available

28

Generac 063378

HOLDER CABLE TIE

$

$

Not available

29

Generac 064761

TIE WRAP UL 5.6 X .10 NATL

$

$

Not available

30

Generac 063321

HANDLE XFER SWITCH 1-400A

$

$

Not available

31

Generac 073590A

FUSE 5A X BUSS

$9.49

$

In Stock, only 1 left!

0

32

Generac 0D3587

DECAL, FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

33

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

34

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

35

Generac 0D4545

DECAL, MANUAL OPERATION

$

$

Not available

36

Generac 0E4307

DECAL,TEST SEQUENCE 2P TS 3R

Note: CENTER DECAL ON INSIDE OF THE COVER (ITEM #20)

$5.49

$

Usually ships in 2-12 days

0

37

Generac 081221

DECAL-UL LIST HSB

$

$

Not available

38

Generac 0A2284

SCREW SWAGE 8-32 X 1/2 Z/YC

$0.99

$

Usually ships in 2-12 days

0

39

Generac 063306

3-PHASE POWER MONITR

$

$

Not available

40

Generac 066972

SOCKET RELAY OCTAL 8P 300V-10A

$

$

Not available

41

Generac 0E4358

DECAL,LUG TORQUE INFO

Note: INSTALL ACROSS E & N TERMINALS

$1.49

$

Usually ships in 2-12 days

0

42

Generac 0F6521

DECAL TRANSFER SWITCH RTS

Note: INSTALL ON FRONT OF THE COVER (ITEM #20)

$11.99

$

Usually ships in 2-12 days

0

43

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0
