0050360 - Generac Power Transfer Switch (SN: 3302932 - 4501203) (2016) 200A Transfer Switch Assembly (0E9801$-F) Parts Diagram

Power Transfer Switch

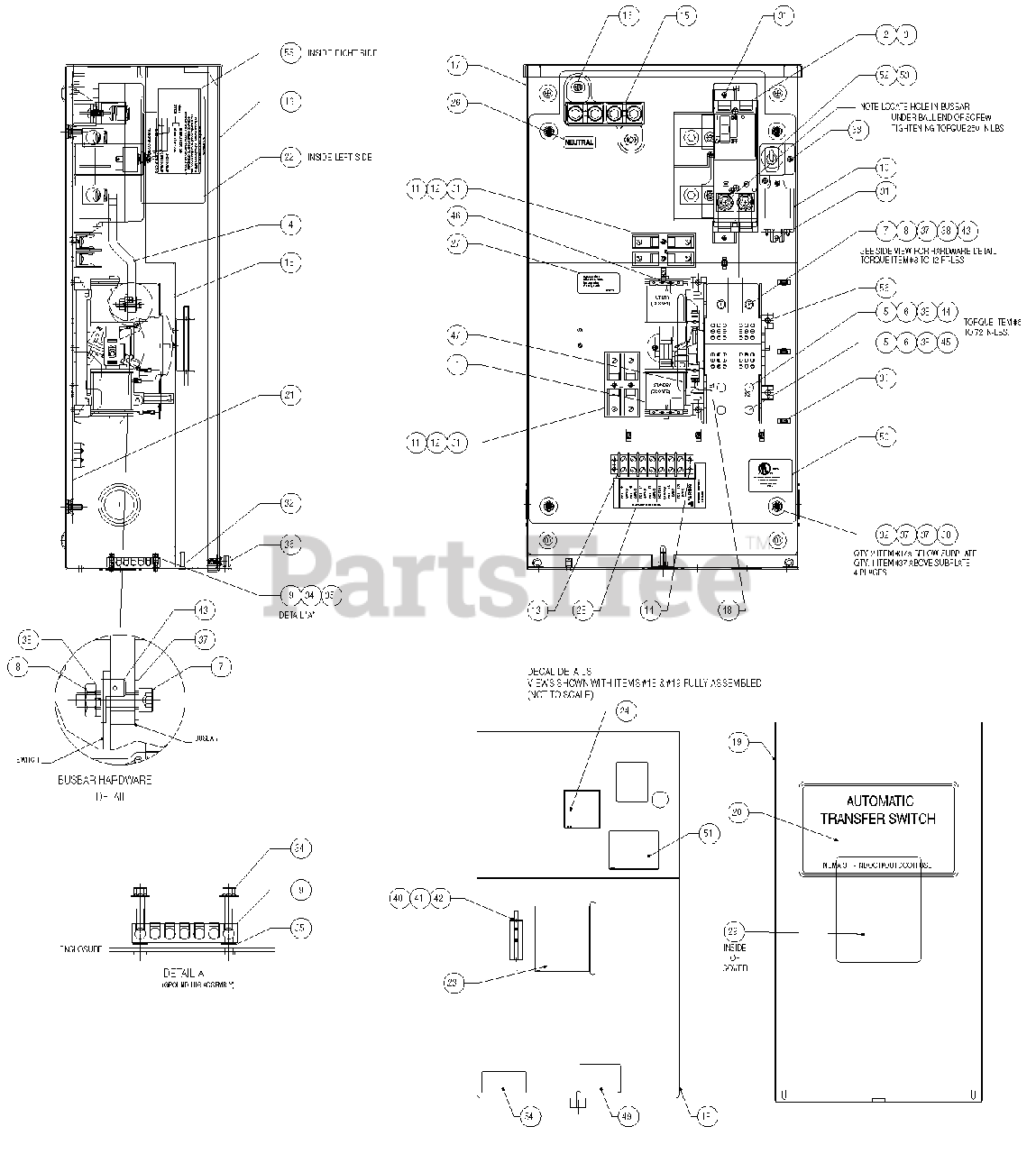

200A Transfer Switch Assembly (0E9801$-F) Parts Diagram

  • Title

1

Generac 0D9618

TRANSFER SW-HSB 200A 2P 250V

Note: ORDER REPL. PART 0L2911 INTERNAL COMPONENTS ALSO AVAILABLE 0E6154A STANDBY COIL 0E6154 UTILITY COIL LIMIT SWITCH 084464 QTY 2 PLASTIC COVER OVER TRANSFER MECH NEXT TO COILS 0F20780SRV CLIP FOR PLASTIC COVER 0F2078WSRV SPADE CONNECTOR KIT 0G10380SRV WHICH INCLUDES 2 EA OF 0E6032,0E6033, AND 0E6034 0C2237BSRV RETAINING CLIP 0G10010SRV (2) PLUNGERS AND CLIP FOR COILS

$

$

Not available

2

Generac 0E3628

CIRCUIT BREAKER 0200A 2P 120/240V S QN

$661.99

$

Usually ships in 2-12 days

0

3

Generac 0E3664

BASE QN CIRCUIT BREAKER

$856.99

$

In Stock, only 1 left!

0

4

Generac 0E3553

BUSBAR 200A HSB XFER SW

$108.99

$

Usually ships in 2-12 days

0

5

Generac 0E3375

LUG SLDLSS 250-#6 AL/CU

$31.99

$

Usually ships in 2-12 days

0

6

Generac 0F1252

SCREW BHSC 1/4-20 X 3/8

$1.49

$

Usually ships in 2-12 days

0

7

Generac 036656

SCREW SHC 1/4-20 X 1 G8.8 NZ

$

$

Not available

8

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$5.49

$

Usually ships in 2-12 days

0

9

Generac 0E6523

GROUND BAR (5)4-14 AWG CONN

$22.99

$

Usually ships in 2-12 days

0

10

Generac 063617

RELAY PNL 12VDC DPDT 10A@240VA
(Superseded to G063617)

$41.99

$

Usually ships in 2-12 days

0

11

Generac 0D2806

FUSEBLOCK 30A 600V 2POS W/SQ

$46.99

$

Usually ships in 2-12 days

0

12

Generac 073590A

FUSE 5A X BUSS

$9.49

$

In Stock, only 1 left!

0

13

Generac 047822

BLOCK TERM 20A 7 X 6 X 1100V

$

$

Not available

14

Generac 0A1661

RIVET POP .156 X .675 AL

$0.99

$

Usually ships in 2-12 days

0

15

Generac 0C4449A

ASS'Y-NTRL BL150-200A

Note: ORDER 0C4449ASRV

$

$

Not available

16

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.99

$

Usually ships in 2-12 days

0

17

Generac 0E1473

WELDMENT TRANSFER SWITCH BOX

Note: ONLY AVAILABLE IN STEEL

$1051.99

$

Usually ships in 2-12 days

0

18

Generac 0E9989

COVER INSIDE XFER SWITCH BOX

$180.99

$

Usually ships in 2-12 days

0

19

Generac 0E1477

COVER TRANSFER SWITCH BOX

Note: ONLY AVAILABLE IN STEEL

$309.99

$

Usually ships in 2-12 days

0

20

Generac 0F0668

DECALTRANSFER SWITCH

$12.99

$

Usually ships in 2-12 days

0

21

Generac 0E3070

SUBPLT XFER SW HSB

$

$

Not available

22

0E3477

DECAL SWITCH RATING

$

$

Not available

23

Generac 0E3484

DECAL WARN MANUAL OPER HANDLE

$25.99

$

Usually ships in 2-12 days

0

24

Generac 0E3485

DECAL SERVICE DISCONNECT

$23.99

$

Usually ships in 2-12 days

0

25

Generac 067210A

DECAL GROUND LUG (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

26

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0D3587

DECAL FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

28

Generac 0A2595

DECAL TERMINAL STRIP

$

$

Not available

29

Generac 0E7109

DECAL TEST SEQ.2P TS HS 3R

$3.49

$

Usually ships in 2-12 days

0

30

Generac 063378

HOLDER CABLE TIE

$

$

Not available

31

Generac 045764

SCREW HHTT M4-0.7 X 8 BP
(Superseded to G045764)

$0.99

$

Usually ships in 2-12 days

0

32

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

Usually ships in 2-12 days

0

33

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.99

$

In Stock, only 3 left!

0

34

Generac 0C3992

SCREW HHTT M4-0.7 X 16 BP

$1.49

$

Usually ships in 2-12 days

0

35

Generac 026579

WASHER SHAKEPROOF EXT #8 STEEL

$

$

Not available

36

Generac 0E7213

SCREW THUMB 1/4-20 X 1/2 W/SHLD

$

$

Not available

37

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

38

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

39

Generac 0E9987

WIRE HARNESS HSB (NOT SHOWN)

$791.99

$

Usually ships in 2-12 days

0

40

Generac 0E6193

BRACKET ARM EXTENDER

$2.99

$

Usually ships in 2-12 days

0

41

Generac 064526

SCREW HWHS #6-25 X 3/8
(Superseded to G064526)

$0.99

$

Usually ships in 2-12 days

0

42

Generac 0E6155

ARM EXTENDER PIN

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1

$23.99

$

Usually ships in 2-12 days

0

43

Generac 0E6032

90 DEGREE UP SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1. USE 0G10380SRV

$

$

Currently unavailable

44

Generac 0E6033

90 DEGREE DN SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1. USE 0G10380SRV

$

$

Currently unavailable

45

Generac 0E6034

STRAIGHT SPADE CONNECTOR

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1. USE 0G10380SRV

$2.49

$

Usually ships in 2-12 days

0

46

Generac 0E6303

WIRE A

$2.99

$

Usually ships in 2-12 days

0

47

Generac 0E6303A

WIRE B

$55.99

$

Usually ships in 2-12 days

0

48

Generac 0E6303B

WIRE E1

$2.99

$

Usually ships in 2-12 days

0

49

Generac 0C8308

DECAL TERMINAL SHOCK HAZARD

$2.49

$

Usually ships in 2-12 days

0

50

Generac 081221

DECAL-UL LIST HSB

$

$

Not available

51

Generac 0E9999

DECAL-SERVICE DISCONNECT SWITCH

$2.49

$

Usually ships in 2-12 days

0

52

Generac 0E9988

BRACKET SERVICE SWITCH

$59.99

$

Usually ships in 2-12 days

0

53

Generac 0D3728

TOBBLE SWITCH, SERVICE

Note: OBSOLETE

$9.49

$

Usually ships in 2-12 days

0

54

Generac 095282

DECAL LIVE-CIRCUIT

$

$

Not available

55

Generac 0F2712

DECAL XFER SWITCH DATA SE 200A

$1.99

$

Usually ships in 2-12 days

0

56

Generac 066849

SCREW HHTT M5-0.8 X 16
(Superseded to G066849)

$1.49

$

Usually ships in 2-12 days

0
