0053480 - Generac Portable Generator (SN: 4995868 - 8281183) (2016) Generator (0G5709-A) Parts Diagram

Portable Generator

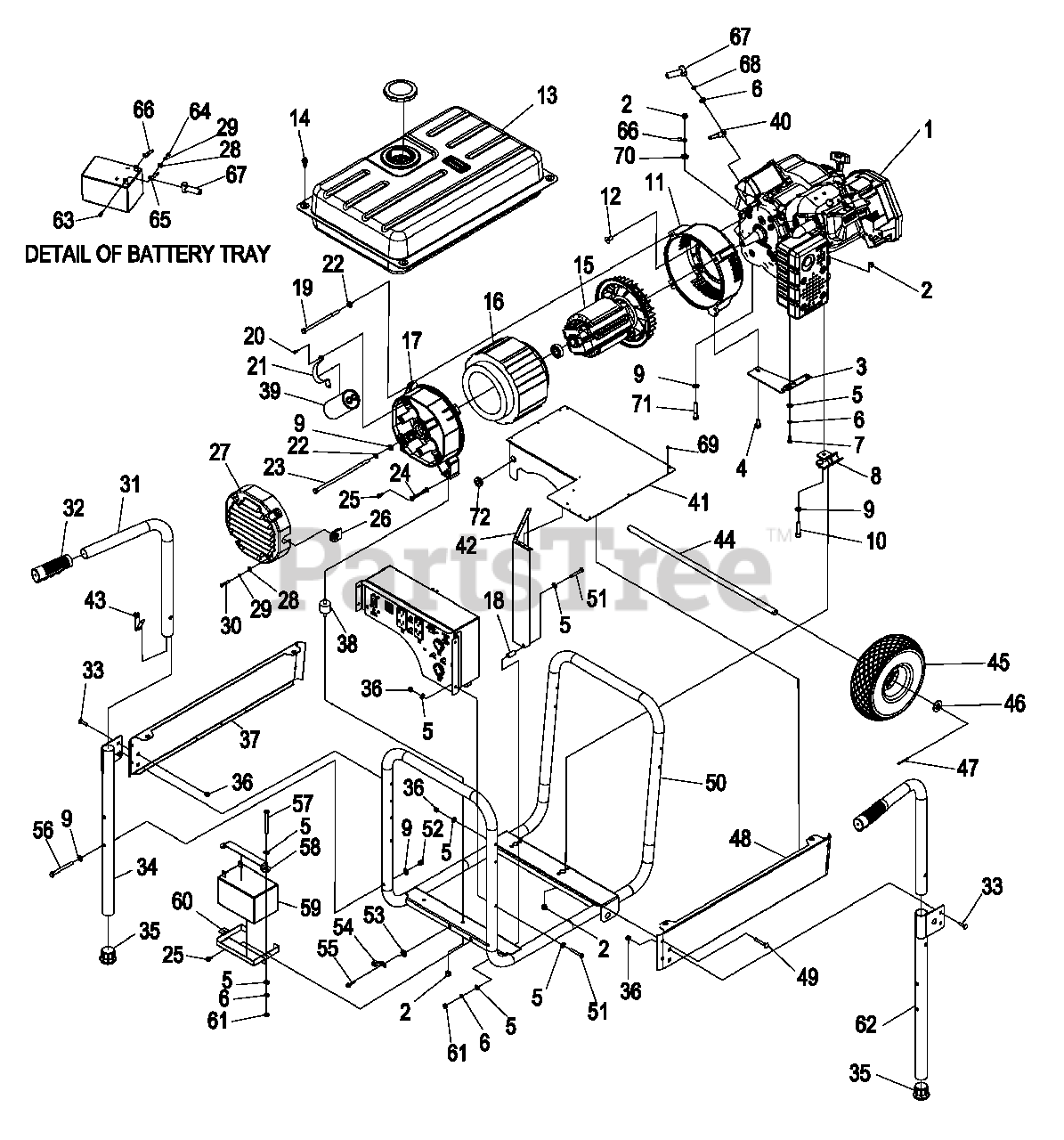

Generator (0G5709-A) Parts Diagram

  • Title

1

Generac 0G5455

ASSEMBLY, ENGINE GH-410 PORTABLE

$

$

Currently unavailable

2

Generac 049820

NUT HEX LOCK M8-1.25 NY INS
(Superseded to G049820)

$0.99

$

In Stock, Qty 7

0

3

Generac 0G1746

BRACKET MUFFLER

$9.49

$

Usually ships in 2-12 days

0

4

Generac 0D4662

SCREW HHTR 5/16-18 X 3/4

$2.99

$

Usually ships in 2-12 days

0

5

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

6

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

7

Generac 047411

SCREW HHC M6-1.0 X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

8

Generac 084508

VIBRATION MOUNT
(Superseded to G084508)

$8.49

$

Usually ships in 2-12 days

0

9

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

10

Generac 081990

SCREW SHC M8-1.25 X 40

$

$

Not available

11

Generac 0G2397

ENGINE ADAPTER HOUSING

$70.99

$

Usually ships in 2-12 days

0

12

Generac 030205

SCREW FHSC 3/8-16 X 3/4
(Superseded to G030205)

$1.99

$

Usually ships in 2-12 days

0

13

Generac 0G5243

FUEL TANK ASSY 8KW PORTABLE

Note: FOR FUEL GAUGE ORDER P/N 0G84300102.

$

$

Not available

14

Generac 0G5445

SCREW HHTT M8-1.25 X 20

$1.49

$

In Stock, only 2 left!

0

15

Generac 0G5211C

ROTOR 8KW
(Superseded to 0G5211CSRV)

Note: ORDER P/N 0G5211CSRV.

$591.68

$

Usually ships in 2-12 days

0

16

Generac 0G5457C

STATOR 8KW

$797.99

$

Usually ships in 2-12 days

0

17

Generac 0G2398

BEARING CARRIER REAR

$76.99

$

Usually ships in 2-12 days

0

18

0G6216

SPACER 1/2 X 1/4 X 1

$

$

Not available

19

Generac 0G5148

SCREW HHC M8-1.25 X 140 G8.8

$5.99

$

Usually ships in 2-12 days

0

20

Generac 0F4795

SCREW PPHM M4-0.7 X 10

$0.99

$

In Stock, only 2 left!

0

21

Generac 0G5088

CLAMP

$4.99

$

In Stock, only 1 left!

0

22

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

23

Generac 075431

SCREW IHHC 5/16-24 X 8-1/2 G5
(Superseded to G075431)

$7.49

$

Usually ships in 2-12 days

0

24

Generac 0742600174

GROUND WIRE BEARING CARRIERFRAME

$

$

Not available

25

Generac 090388

SCREW HHTT M6-1.0 X 12
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

26

Generac 0G5206

GROMMET WIRE SLEEVE

$1.49

$

Usually ships in 2-12 days

0

27

Generac 0G5002

COVER ALTERNATOR INLET

$15.99

$

In Stock, only 1 left!

0

28

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

29

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

30

Generac 020911

SCREW PPHM M5-0.8 X 30

$

$

Not available

31

Generac 0G4700

HANDLE PORTABLE

$40.99

$

Usually ships in 2-12 days

0

32

Generac 097612

FINGERED GRIP
(Superseded to G097612)

$3.99

$

Usually ships in 2-12 days

0

33

Generac 024334

BOLT CARRIAGE 1/4-20 X 1

$

$

Not available

34

0G1745

HANDLE LEG PORTABLE LEFT SIDE

$

$

Not available

35

Generac 0G4699

1-3/8" RUBBER END GENERATOR FOOT

$5.49

$

Usually ships in 2-12 days

0

36

Generac 027529

NUT HEX LOCK 1/4-20 NYL INS

$

$

Not available

37

0G5011

RAIL TANK SUPPORT ALT. SIDE

$

$

Not available

38

Generac 085652

MOUNTS VIBRATION
(Superseded to G085652)

$5.49

$

In Stock, only 3 left!

0

39

Generac 0G5958

CAPACITOR MOTOR RUN 47MF 440V

$42.99

$

In Stock, only 1 left!

0

40

0742600175

WIRE, #16 START SOL-STARTER

$

$

Not available

41

0G4797

DEFLECTOR TANK HEAT

$

$

Not available

42

0G2475

DEFLECTOR, HEAT

$

$

Not available

43

Generac 0G5442

SNAP BUTTON - .437" DIA. HEAD

$1.49

$

In Stock, Qty 6

0

44

Generac 0G5205

AXLE 5/8" DIAMETER

$25.99

$

Usually ships in 2-12 days

0

45

Generac 0G2355

WHEEL, SOLID RUBBER 10" O.D.

$68.99

$

Usually ships in 2-12 days

0

46

Generac 022247

WASHER FLAT 5/8 ZINC
(Superseded to G022247)

$0.99

$

In Stock, Qty 8

0

47

Generac 0D4999

PIN COTTER 1/8 X 1-1/4 ZINC PLATED

$0.99

$

In Stock, Qty 8

0

48

0G5010

RAIL TANK SUPPORT MUFFLER SIDE

$

$

Not available

49

0G6039

BOLT CARRIAGE 1/4-20 X 1-3/4

$

$

Not available

50

0G2352

CRADLE PORTABLE

$

$

Not available

51

023175

SCREW HHC 1/4-20 X 1.75 G5

$

$

Not available

52

Generac 027028

NUT HEX LOCK 5/16-18 NYL INS
(Superseded to G027028)

$0.99

$

In Stock, only 4 left!

0

53

Generac 0A1658

WASHER LOCK SPECIAL 1/4"

$15.99

$

Usually ships in 2-12 days

0

54

Generac 055414

LUG SLDLSS #2-#8 X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

55

Generac 092079

SCREW HHTT M6-1.0 X 25

$

$

Not available

56

Generac 023258

SCREW HHC 5/16-18 X 3-1/4 G5

$

$

Not available

57

Generac 036682

SCREW HHC 1/4-20 X 3 G5

$

$

Not available

58

Generac 0G5265

BRACKET BATTERY HOLD DOWN

$11.99

$

Usually ships in 2-12 days

0

59

Generac 0G2380

BATTERY 12V 10Ah
(Superseded to 0G9449)

Note: ORDER P/N 0G9449.

$79.99

$

In Stock, only 1 left!

0

60

0G5264

BRACKET BATTERY TRAY

$

$

Not available

61

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

62

0G1745A

HANDLE LEG PORTABLE RIGHT SIDE

$

$

Not available

63

Generac 052618

SCREW HHC M5-0.8 X 12 G8.8
(Superseded to G052618)

$0.99

$

Usually ships in 2-12 days

0

64

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

65

0742600176

WIRE, STARTER SOL-BATTERY

$

$

Not available

66

0742600177

WIRE, BATTERY (-) TO ENGINE FRAME

$

$

Not available

67

Generac 0G6392

BOOT, BATTERY CABLE

$0.99

$

Usually ships in 2-12 days

0

68

Generac 049813

NUT HEX M6 X 1.0 G8 YELLOW CHROME
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

69

Generac 0F0710

RIVET POP .125 X 0.337 STEEL

$0.99

$

Usually ships in 2-12 days

0

70

Generac 0C3168

WASHER LOCK SPECIAL 5/16

$0.99

$

Usually ships in 2-12 days

0

71

Generac 051731

SCREW HHC M8-1.25 X 50 C8.8

$

$

Not available

72

Generac 096021

GROMMET

$

$

Not available
