0056260 - Generac Portable Generator (SN: 5092392 - 5288073) (2009) Long Block Repair Parts (0H0740) Parts Diagram

Portable Generator

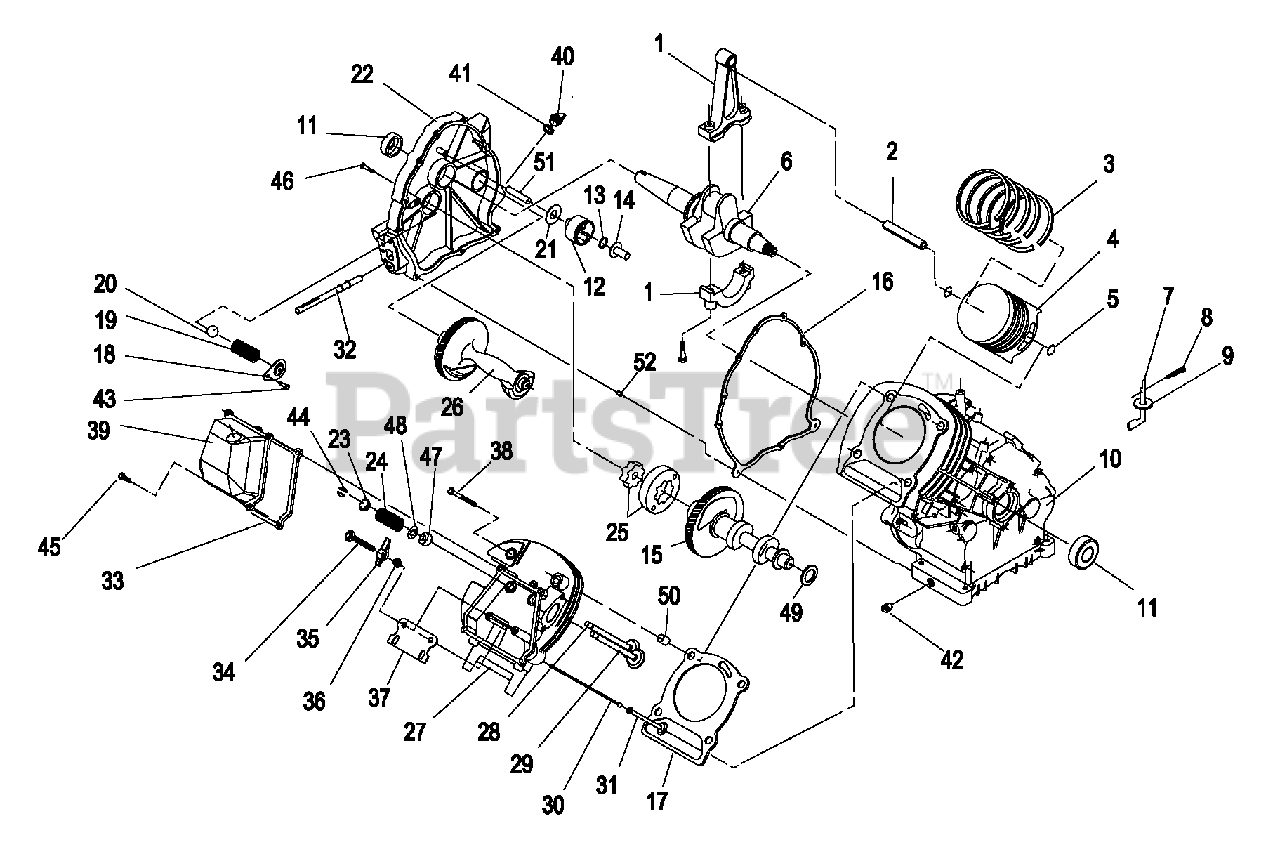

Long Block Repair Parts (0H0740) Parts Diagram

  • Title

1

Generac 0E3221

ASSEMBLY, CONNECTING ROD

$20.99

$

Usually ships in 2-12 days

0

2

Generac 0E1466

PIN, PISTON 020

$6.49

$

In Stock, Qty 5

0

3

0G2S65

RING SET, PISTON 090

$

$

Not available

4

Generac 0G2751

PISTO N, FIAT TO P 090 COATED

$

$

Not available

5

Generac 71963

RETAINER, PISTON PN 20

$

$

Not available

6

E8 440

ASSEMBLY, CRANKSHAFTGH410 TAPER

$

$

Not available

7

Generac 0A7628

A RM, GOVERNOR RC45

$7.99

$

In Stock, only 1 left!

0

8

Generac 78658

PIN, "R" GOVERNOR ARM

$

$

Not available

9

Generac 78659

WASHE R, GOVERNOR ARM THRUST

$

$

Not available

10

Generac 0H0165C

C RANKCASE, SUBASSE MBLY WITH PLUG SGH410

$336.99

$

Usually ships in 2-12 days

0

11

0E38I2

SEAL,35 I.D.CRANKSHAFT

$

$

Not available

12

66519

ASSEMBLY,GOVERNOR GEAR

$

$

Not available

13

Generac 78645

C-RING, GOVERNOR GEAR RETAIN ER

$

$

Not available

14

Generac 0A7811

SPOO L, GOVERNO R- M ACHINE

$16.99

$

In Stock, only 2 left!

0

15

Generac 0A9877

ASSEM BLY, CAMSHAFTS GEAR
(Superseded to 0A98770SRV)

Note: ORDER 0A98770SRV

$231.99

$

Usually ships in 2-12 days

0

16

Generac 76701

GASKET, CRANKCASE

$

$

Not available

17

Generac 021713B

GASKET, HEAD 410

$6.49

$

Usually ships in 2-12 days

0

18

Generac 78691

COVER, OIL P RESSURE REUEF

$

$

Not available

19

Generac 0A5771

SPRING, OIL RELIEF360

$3.49

$

Usually ships in 2-12 days

0

20

Generac 0A5776

BALL, DIA 11/32 PRESSURE RELIEF

$1.49

$

Usually ships in 2-12 days

0

21

Generac 76361

WASHER, THRUST GOVERNOR GEAR

$

$

Not available

22

0G4233A

ASSEMBLY, COVER, GEARTOP CHECK / FILL

$

$

Not available

23

Generac 0D2274

RETAINER, VALVE SPRING

$1.99

$

In Stock, only 4 left!

0

24

Generac 0C4391

VALVE SPRING LF

$2.49

$

In Stock, only 3 left!

0

25

36025

SET, GEROTOR 12THK

$

$

Not available

26

Generac 0E3341

BALANCER

$57.99

$

Usually ships in 2-12 days

0

27

Generac 0G6791

ASSEMBLY, CYUNDER HEAD SEATS & GUIDES
(Superseded to 0G6791A)

Note: ORDER 0G6791A

$127.99

$

Usually ships in 2-12 days

0

28

Generac 86516

VALVE. EXHAUST

$

$

Not available

29

Generac 86517

VALVE. INTAKE

$

$

Not available

30

0D9853E

PUSHROD 1749

$

$

Not available

31

Generac 83897

TAPPET

$

$

Not available

32

Generac 77158

ASSEMBLY, SCREENOIL PICK- UP

$

$

Not available

33

Generac 0C3150

GASKET, ROCKER COVER 410
(Superseded to 0C3150A)

Note: ORDER 0C3150A

$19.99

$

In Stock, only 4 left!

0

34

Generac 72694

STUD, D20 PIVOT BALL

$

$

Not available

35

Generac 83907

ROCKER ARM

$

$

Not available

36

Generac 0D3998

NUT, JAM (ROCKER ARM)

$2.99

$

In Stock, only 1 left!

0

37

Generac 78694

PLATE, PUSH ROD GUIDE

$

$

Not available

38

Generac 21742

SCREW, H HFL M10-1 .5 X 10 5

$

$

Not available

39

Generac 0D6094

ASSEMBLY, ROCKER COVER BREATHER OHVI

$26.99

$

Usually ships in 2-12 days

0

40

Generac 76329

PLUG, OILFLL PLASTIC

$

$

Not available

41

0E0 057

O-RING 178 1.0.x 24

$

$

Not available

42

Generac 0D4788

PLUG, STANDARD PIPE 38 STEEL SQUARE HEAD

$2.49

$

In Stock, only 1 left!

0

43

Generac 74908

SCREW, TAPTITE M5-0 8 X 10 EP

$

$

Not available

44

0865 I5

KEEPER, VALVE SPRNG

$

$

Not available

43

Generac 0G0919

SCREW HHFC S M6-1 X 12G8.8

$0.99

$

Usually ships in 2-12 days

0

46

Generac 0A1442

SCREW, HHFC M8-1.25 X 42

$2.49

$

Usually ships in 2-12 days

0

47

Generac 78672

SEAL, VALVE STEM 07

$

$

Not available

48

Generac 89673

WASHER, VALVE SPRING

$

$

Not available

49

OB2104

WASHER, LARGE SPRING

$

$

Not available

50

0 78699C

SLEEVE, DOWEL PIN 14 DIA.

$

$

Not available

51

Generac 0A7627

SHAFT, GOVERNOR RC55

$2.99

$

In Stock, only 1 left!

0

52

Generac 078699E

SLEEVE, DOWEL PI N12 DIA.

$0.99

$

Usually ships in 2-12 days

0
