0056260 - Generac Portable Generator (SN: 5315463 - 6184195) (2010) EV 7.0KW GP STORM 005626-0 (0G9384E) Parts Diagram

Portable Generator

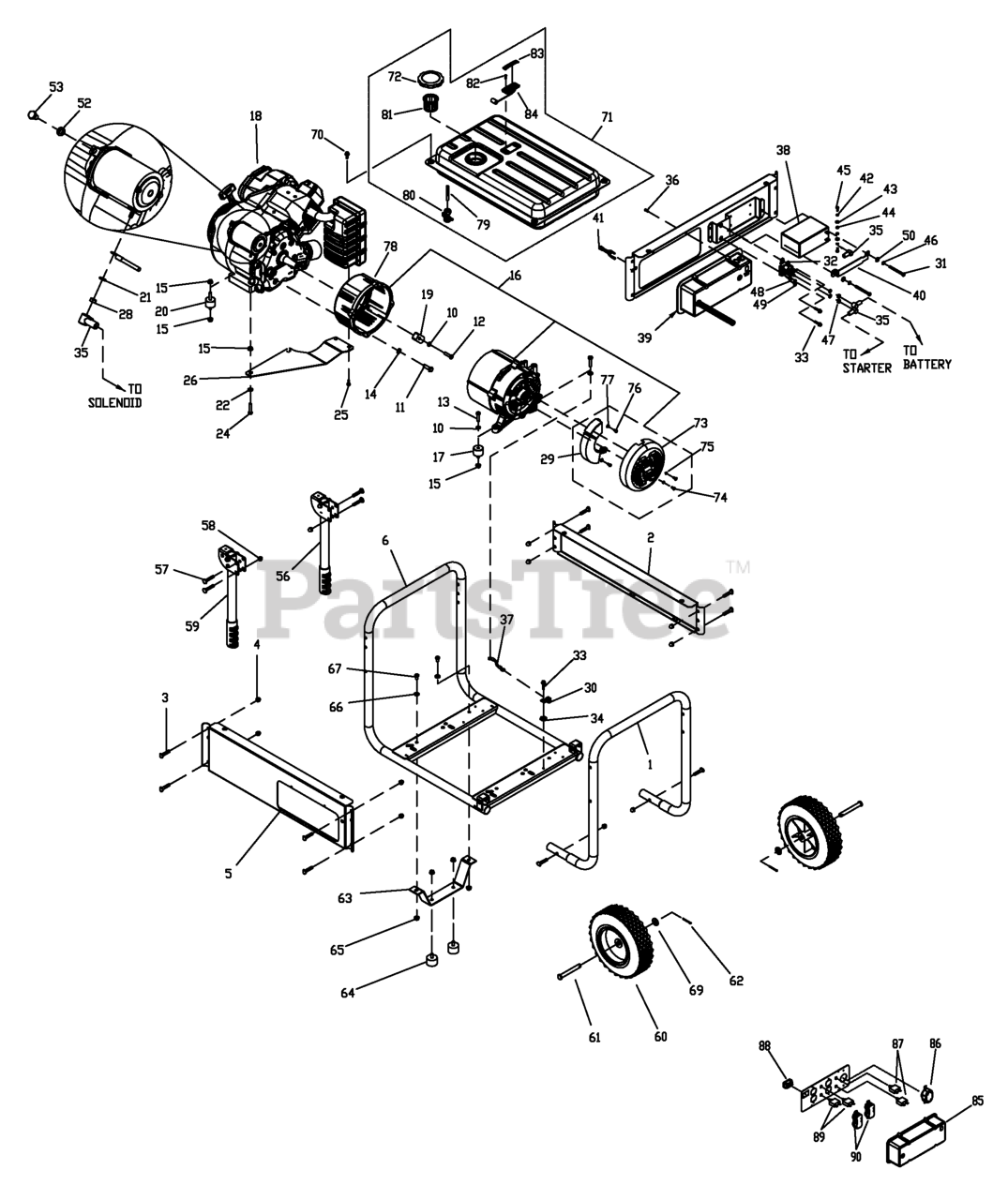

EV 7.0KW GP STORM 005626-0 (0G9384E) Parts Diagram

  • Title

1

0G8326

CRADLE END

$

$

Not available

2

0G8328

BACK RAIL

$

$

Not available

3

Generac 0G8467

CURVED HEAD BOLT 5/16-18 X 1.625" LONG

$0.99

$

Usually ships in 2-12 days

0

4

Generac 0G8486

CAP NUT LOCKING 5/16 -18 THREAD

$2.49

$

Usually ships in 2-12 days

0

5

0G9005

PANEL RAIL, ELECTRIC START

$

$

Not available

6

0H0168

ASSY, CRADLE BASE

$

$

Not available

10

Generac 022129

WASHER, LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

11

02 2511

SCREW, HHC 3/8-16 X 1-1/4 G5

$

$

Not available

12

03 0209

SCREW, HHC 5/16-24 X 1-1/4 G5

$

$

Not available

13

03 3212

SCREW, HHC 5/16-18 X 1-1/4 G5

$

$

Not available

14

Generac 046526

WASHER, LOCK M10

$

$

Not available

15

Generac 069673J

NUT LOCK FLG 5/16-18

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0G8446

ALTERNATOR, 70 00W, SAE, BRUSHLESS

Note: THIS ALTERNATOR INCLUDES ALL OF THE HARDWARE TO ORDER--- ROTOR BOLTS---0G84460101 STATOR BOLTS--0G84460102 BRNG CARRIER--0H92090106 TERM BLOCK----0H88860040 END COVER-----0G89950112 CAPACITOR----0G84440101

$1223.99

$

Usually ships in 2-12 days

0

17

Generac 0G8527

VIB MOUNT 1.38 X 1.0 X 5/16-18 MALE / FEMALE

$4.99

$

Usually ships in 2-12 days

0

18

Generac 0G9811

ASSEMBLY, ENGINE GH-410

$

$

Not available

19

Generac 0G9832

BRACKET, MOUNT 7KW ALTERNATOR

$3.99

$

Usually ships in 2-12 days

0

20

Generac 0G9833

VIB MOUNT RUBBER 1.38 X 1.0 X 5/16-18 M/M

$4.49

$

In Stock, only 1 left!

0

22

02 2145

WASHER, FLAT 5/16-18-M8

$

$

Not available

24

03 0231

SCREW, HHC 5/16-18 X 1-1/2

$

$

Not available

25

Generac 0G0926

HHFCS M6-1.0 X 16

$0.99

$

In Stock, Qty 7

0

26

0H252 1

BRACKET, MOUNTING, MUFFLER GH410

$

$

Not available

27

0C764 9

CLAMP, HOSE .38-.87 (NOT SHOWN-FUEL HOSE)

$

$

Not available

28

04 9813

NUT, HEX M6-1.0 G8

$

$

Not available

29

Generac 0G84440101

CAPACITOR, VOLTAGE REGULATOR

$31.99

$

In Stock, only 1 left!

0

30

05 5414

LUG, SOLDERLESS #2-#8 X 17/64 CU

$

$

Not available

31

05 5816

SCREW, HHC M6-1.0 X 70

$

$

Not available

32

08 6729

CONTACTOR, STARTER SOLENOID

$

$

Not available

33

09 2079

ASSY, GROUND WIRE ALTERNATOR TO BASE

$

$

Not available

34

Generac 0A1658

WASHER, LOCK SPECIAL 1/4"

$15.99

$

Usually ships in 2-12 days

0

35

Generac 0G6392

BOOT, VINYL-STARTER CONTACTOR

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0G8382

SCREW, PPPH #8-16 X 1/2" BZC

$1.49

$

Usually ships in 2-12 days

0

37

Generac 0G8753C

ASSY, GROUND WIRE, ALT. TO BASE (NOT SHOWN)

$2.49

$

Usually ships in 2-12 days

0

38

Generac 0G9449

BATTERY, 12V 10Ah

$79.99

$

Usually ships in 2-12 days

0

39

Generac 0G9776B

RECEPTACLE PANEL 30A RND W/HR MTR

$297.99

$

Usually ships in 2-12 days

0

40

0G9882

BRACKET, BATTERY HOLD DOWN

$

$

Not available

41

Generac 0H0025

ASSY, DC POWER JACK

$32.99

$

Usually ships in 2-12 days

0

42

Generac 022152

WASHER, LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

43

02 3897

WASHER, FLAT #10 ZINC

$

$

Not available

44

05 1716

NUT, HEX M5-0.8 G8 C LEAR ZINC

$

$

Not available

45

05 2618

SCREW, HHC M5-0.8 X 12

$

$

Not available

46

Generac 022097

WASHER, LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 3 left!

0

47

Generac 022127

NUT HEX 1/4-20
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

48

Generac 022264

WASHER, LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

49

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

50

Generac 022473

WASHER FLAT 1/4-M6
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

51

Generac 0H0228

LOOSE WIRE GPPORT ELEC START (NOT SHOWN)

$12.99

$

Usually ships in 2-12 days

0

52

Generac 022129

WASHER, LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

53

Generac 051754

SCREW, HHC M8-1.25 X 12

$

$

Not available

55

Generac 0G8470B

ACCESSORY KIT, 14 GRAY ([I/N’s: 56-69]

Note: ORDER P/N 0G8470BSRV.

$

$

Currently unavailable

56

Generac 0G8530B

ASSY, HANDLE LH ORANGE

Note: ORDER 0G8530BSRV.

$

$

Currently unavailable

57

Generac 0H0031

CHB CUSTOM 5 /16-18 X 46mm LONG

$1.49

$

Usually ships in 2-12 days

0

58

Generac 0G8486

CAP NUT LOCKING 5/16-18

$2.49

$

Usually ships in 2-12 days

0

59

Generac 0G8533B

ASSY, HANDLE RH

Note: ORDER 0G8533BSRV.

$

$

Currently unavailable

60

Generac 0G8651

TIRE, 9.5" DIA RUN FLAT PLASTIC / RUBBER

$40.99

$

In Stock, Qty 6

0

61

Generac 0H0204

AXLE PIN, 1/2" x 4"

$9.99

$

In Stock, only 2 left!

0

62

Generac 0D4999

PIN, COTTER

$0.99

$

In Stock, Qty 8

0

63

0H1114

FRAME, BENT FOOT

$

$

Not available

64

Generac 0G8478

RUBBER FOOT

$6.49

$

In Stock, only 4 left!

0

66

Generac 022145

WASHER, FLAT 5/16-M8
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

67

Generac 036223

SCREW, HHC 5/16-18 X 1/2"
(Superseded to G036223)

$0.99

$

Usually ships in 2-12 days

0

69

Generac 022304

WASHER, FLAT 1/2"
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

70

Generac 0G5445

SCREW, HHTT M8-1.25 X 20

$1.49

$

In Stock, only 2 left!

0

71

Generac 0G8489

ASSY, FUEL TANK 8.0 GAL
(Superseded to 0G84890SRV)

Note: ORDER P/N 0G84890SRV

$324.99

$

Usually ships in 2-12 days

0

72

0H1 325A

FUEL CAP, VENTED

$

$

Not available

73

Generac 0H3049

COVER, ALTERNATOR INLET

$21.99

$

Usually ships in 2-12 days

0

74

Generac 052618

SCREW, HHC M5-0.8 x 1 2
(Superseded to G052618)

$0.99

$

Usually ships in 2-12 days

0

75

Generac 049226

WASHER, LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

76

Generac 049815

SCREW, HHC M5-0.8 x 1 6

$

$

Not available

77

Generac 051713

WASHER, FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

78

0H4044

ENGINE ADAPTOR, 410c c

$

$

Not available

79

Generac 0H1613

FILTER, FUEL VALVE

$2.49

$

In Stock, only 1 left!

0

80

Generac 0H1684

VALVE, FUEL SHUTOFF
(Superseded to 0J0974)

Note: ORDER P/N 0J0974

$21.99

$

In Stock, only 1 left!

0

81

Generac 0H1326

FUEL FILTER

$4.99

$

In Stock, Qty 11

0

82

Generac 0H1357

SCREW, PFHM M5-0.8 x12

Note: INCLUDED WITH FUEL GUAGE.

$0.99

$

Usually ships in 2-12 days

0

83

Generac 0H1359

PLATE, FUEL GAGE

Note: CANNOT BUY SEPARATE. MUST PURCHASE FUEL GAUGE ASSY OFF OF BOM

$

$

Currently unavailable

84

0H1 345D

FUEL GAGE, 115mm LONG ARM

$

$

Not available

85

Generac 0G9756

RECEPTACLE PANEL

$51.99

$

Usually ships in 2-12 days

0

86

Generac 0G8758

OUTLET, 30A 12 0 / 250V

$26.99

$

In Stock, only 1 left!

0

87

Generac 0H0265E

CIRCUIT BREAKER, 30A 120V

$15.99

$

Usually ships in 2-12 days

0

88

Generac 0G8321

HOUR METER

Note: IF CUSTOMER HAS A RESET BUTTON ON THEIR PANEL, ORDER P/N 0H8214.

$87.99

$

Usually ships in 2-12 days

0

89

0H0 265C

CIRCUIT BREAKER, 20A 120V

$

$

Not available

90

Generac 0G8507

OUTLET, 20A 12 0V DUPLEX

Note: ORDER 0H03870111

$

$

Currently unavailable
